6-8 Troubleshooting
Clearing Paper Jams
If a paper jam occurs, the touch panel will display Paper misfeed and the
copying will stop. Refer to these procedures to remove the jammed
paper.

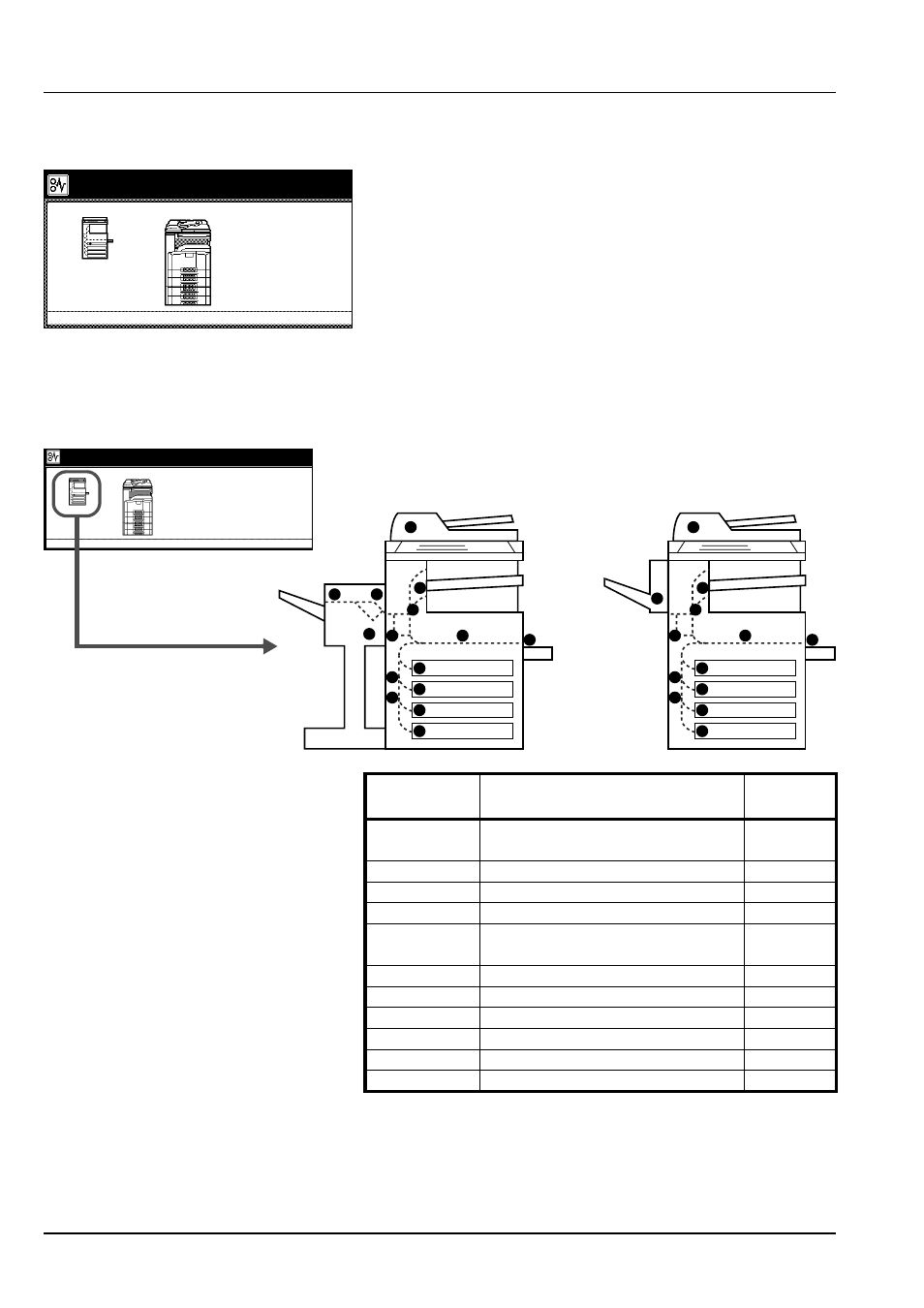

Jam Location Indicators
When a paper jam occurs, the jam location indicators and corrective
action are displayed. Jam location indicators indicate the paper jam
position, as shown below.
After clearing the jam, the machine will warm up again and the error
message will be cleared. The machine resumes from the page on which
the jam occurred.
Paper misfeed.
2.Open cassette 1.
3.Remove the paper.
4.Reset the cassette
and close the cover.
and remove any paper that
1.Open left cover 1 of the m
JAM 00
A
D
G E
E
K
I
J J
J
H
F
B
C
C
F
A
D
G E
E
K
I
F
B
C
C
F
Paper misfeed.
2.Open cassette 1.
3.Remove the paper.
4.Reset the cassette
and close the cover.
and remove any paper that is inside.
1.Open left cover 1 of the machine
JAM 00
Jam Location
Indicators
Paper Jam Location
Reference
Page
A Cassette 1 page 6-9
page 6-13
B Cassette 2 page 6-10
C Optional cassettes 3 and 4 page 6-11
D MP tray page 6-12
E Duplex unit, Inside the left cover 1 page 6-12
page 6-13
F Inside the left covers 2 and 3 page 6-12
G Paper feed unit page 6-14
H Optional built-in finisher page 6-16
I Optional document processor page 6-18
J Optional document finisher page 6-19
K Optional job separator page 6-19
