1 17 7 1 16 6 Names of parts

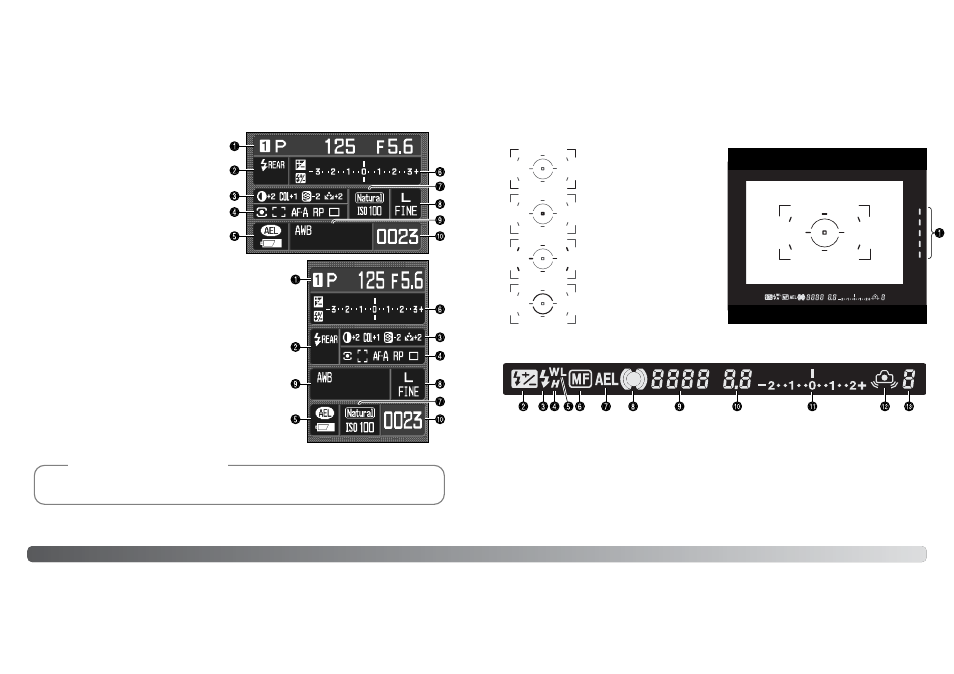

VIEWFINDER RECORDING MODE DISPLAY
8. Image size / quality panel
2. Flash panel
5. AE lock / battery condition panel
7. Color mode / camera-sensitivity panel
9. White-balance panel
10. Frame counter
4. Metering / AF area / AF mode / Release priority /
Drive mode panel
3. Digital Effects panel
1. Memory / exposure mode / exposure panel
6. Ev scale
Wide focus frame
Spot-metering area (p. 50)
Spot AF area (p. 54)
Local focus areas (p. 55)
2. Flash-compensation indicator (p. 48)
5. Wireless/Remote flash indicator (p. 72)
7. AE lock indicator (p. 46)
11. Ev scale
10. Aperture display
9. Shutter-speed display
13. Frames-remaining counter (p. 56)
12. Camera-shake warning (p. 30)
4. High-speed sync. indicator (p. 118)
3. Flash signal (p. 31)
1. Anti-Shake scale (p. 32)
6. Manual focus indicator (p. 52)
8. Focus signal (p. 29)
The spot AF area and local focus areas are illuminated briefly to indicate the point of focus when
the focus is locked.
The recording display shows information on
camera operation in panels. The information
displayed varies with the functions set.
As the camera is rotated to a vertical
position, the display automatically rotates to
compensate for the camera position.
The monitor-display setup and recording-display setup custom functions in section 3 of the
custom menu control the monitor display (p. 92, 98).
