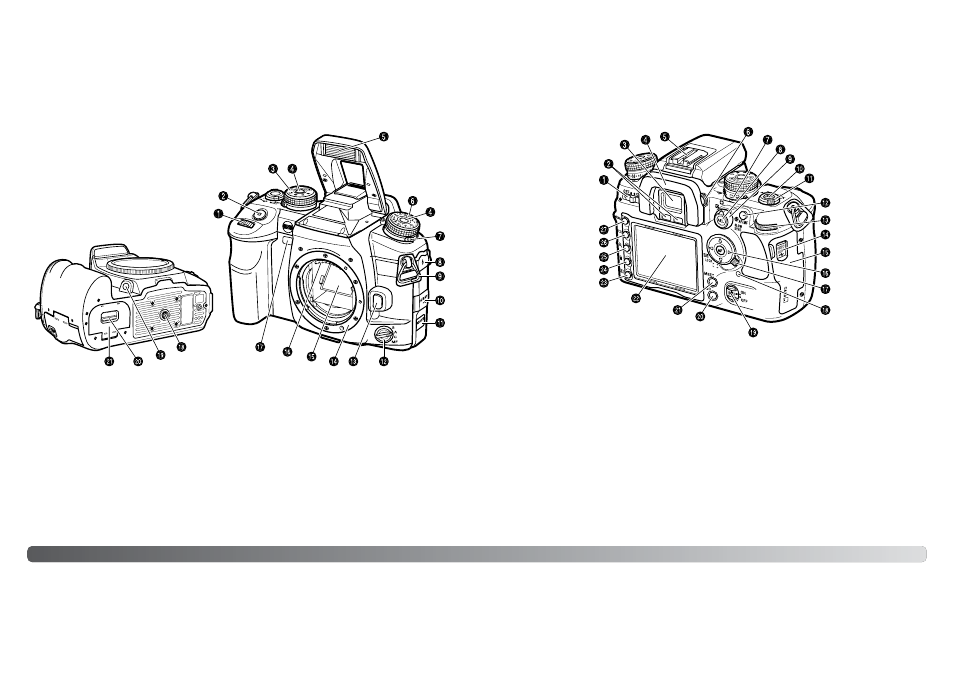

1 15 5 1 14 4 Names of parts
* This camera is a sophisticated optical
instrument. Care should be taken to keep
these surfaces clean. Please read the
care and storage instructions in the back
of this manual (p. 141).
CAMERA BODY
1. Front control dial
2. Shutter-release button
15. Card-slot door (p. 24)
5. Flash (p. 31)
9. Strap eyelet (p. 18)
NAMES OF PARTS
14. USB port/Video-out terminal (p. 105, 121)
27. Menu button
16. Controller & Spot-AF button (p. 54)
8. AE lock button (p. 46)
2. Eyepiece sensors*
25. Magnification button (p. 38)
11. Remote-control terminal (p. 45)
18. Access lamp
24. Delete button (p. 36)
23. Playback button (p. 34)
26. Display button (p. 33, 37)
19. Anti-Shake switch (p. 32)
13. Rear control dial
3. Viewfinder* (p. 17)
22. LCD monitor* (p. 16, 34)
1. Main switch
12. Focus-mode dial (p. 52)
6. Diopter-adjustment dial (p. 20)
18. Tripod socket
21. Memory set button (p. 63)
9. Metering-mode dial (p. 50)
7. Drive-mode dial (p. 56)
20. Camera-sensitivity (ISO) button (p. 51)
8. Flash sync. terminal (p. 119)
5. Accessory shoe
10. White-balance button (p. 60)
20. Battery-chamber release (p. 22)
6. Exposure-compensation dial (p. 48)
4. Dial Lock Release
10. DC terminal (p. 114)
3. Exposure-mode dial (p. 39)
7. Flash-compensation dial (p. 48)
11. White-balance dial (p. 60)
12. AF/MF button (p. 53)
17. Focus-area switch (p. 54)
17. Self-timer lamp (p. 57)
21. Battery-chamber door (p. 22)
19. Depth-of-field preview button (p. 53)
13. Lens release (p. 19)
15. Mirror*
16. Lens contacts*
14. Lens mount
4. Eyepiece cup (p. 59)
