7
System connection
L
R
REC PLAY
REC PLAY
PLAY
PLAY
PLAY REC
DVD/
6CH.INPUT
MONITOR
OUT
PLAY REC PLAY
VIDEO 1 VIDEO 2
VIDEO
FRONT CD MD/TAPE 1 TAPE 2/MON
CD
(OPTICAL 1)
DVD
(COAXAL)
DIGITAL IN
COAX. OPT.
DIGITAL OUTPUT
COAX.
RF INPUT
AC-3 RF
DIGITAL INPUT DC IN
COAXIAL DIGITAL OUT
AC-3 RF OUT
AC-3 RF Demodulator
(DEM-9991D) (option)
Make connections as shown below.
The digital in jacks can accept DTS, Dolby Digital (AC-3) or PCM signals. Connect components capable of outputting DTS, Dolby
Digital (AC-3) or standard PCM (CD) format digital signals.
When connecting the related system components, be sure to also refer to the instruction manuals supplied with the
components you are connecting.
Do not connect the power cord to a wall outlet until all connections are completed.

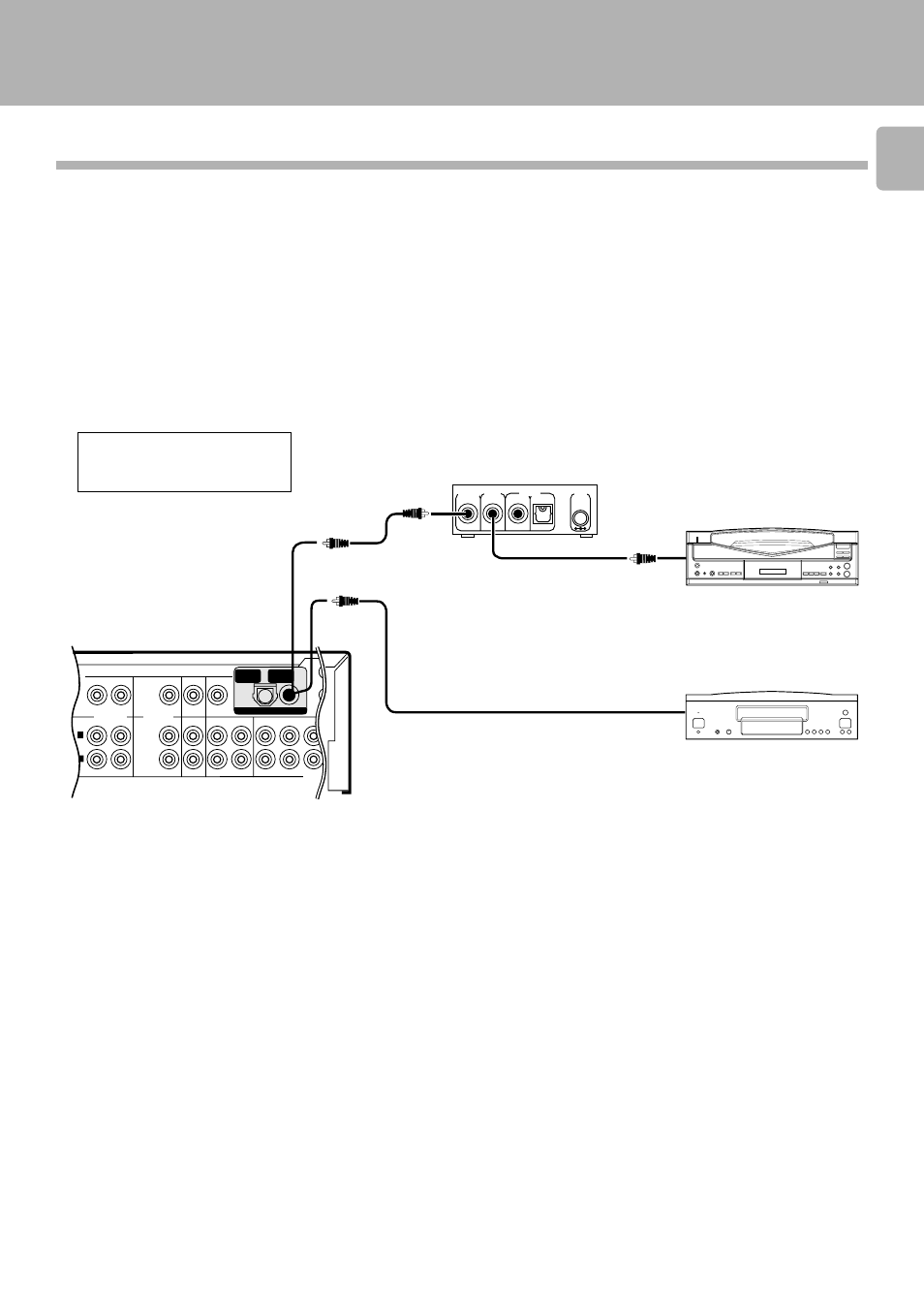

Digital connections
Connect components capable of output-
ting Dolby Digital (AC-3) or standard PCM
format digital signals. To connect an LD player with a DIGITAL RF OUT.
Connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).
Then connect the demodulator to the AC-3 AUDIO INPUT DIGITAL IN.
Connect the video signal and analog audio signals to LD jacks (See "Connection
of video components".)
6
Connect the video signal and analog audio
signals to the DVD jacks.
(See "Connection of video components".)
6
The connected components are given as examples because the avail-
able models vary depending on marketing areas.
To connect a DVD player
with a DIGITAL OUT
RCA pin cord
To connect an LD player
with a DIGITAL OUT
AC-3 DIGITAL OUT
An LD player and DVD player can-
not be connected simultaneously
when an RF demodulator is used.
