6
System connection
ANTENNA AM
FM 75 Ω
GND
CONNECT
WITH
POWER AMPLIFIER
UNSWITCHED
SYSTEM
CONTROL
FRONT SURROUND CENTER
PRE OUT
SUB WOOFER
L
R
REC PLAY
REC PLAY
PLAY PLAY
PLAY
PLAY
DVD/
6CH.INPUT
MONITOR
OUT
REC PLAY REC
VIDEO 1 VIDEO 2
VIDEO
DIGITAL IN
FRONT SURROUND CENTER
SUB WOOFER
CD MD/TAPE1 TAPE 2/MON
CD
(OPTICAL 1)
DVD
(COAXAL)
DVD/6CH.INPUT
DIGITAL IN

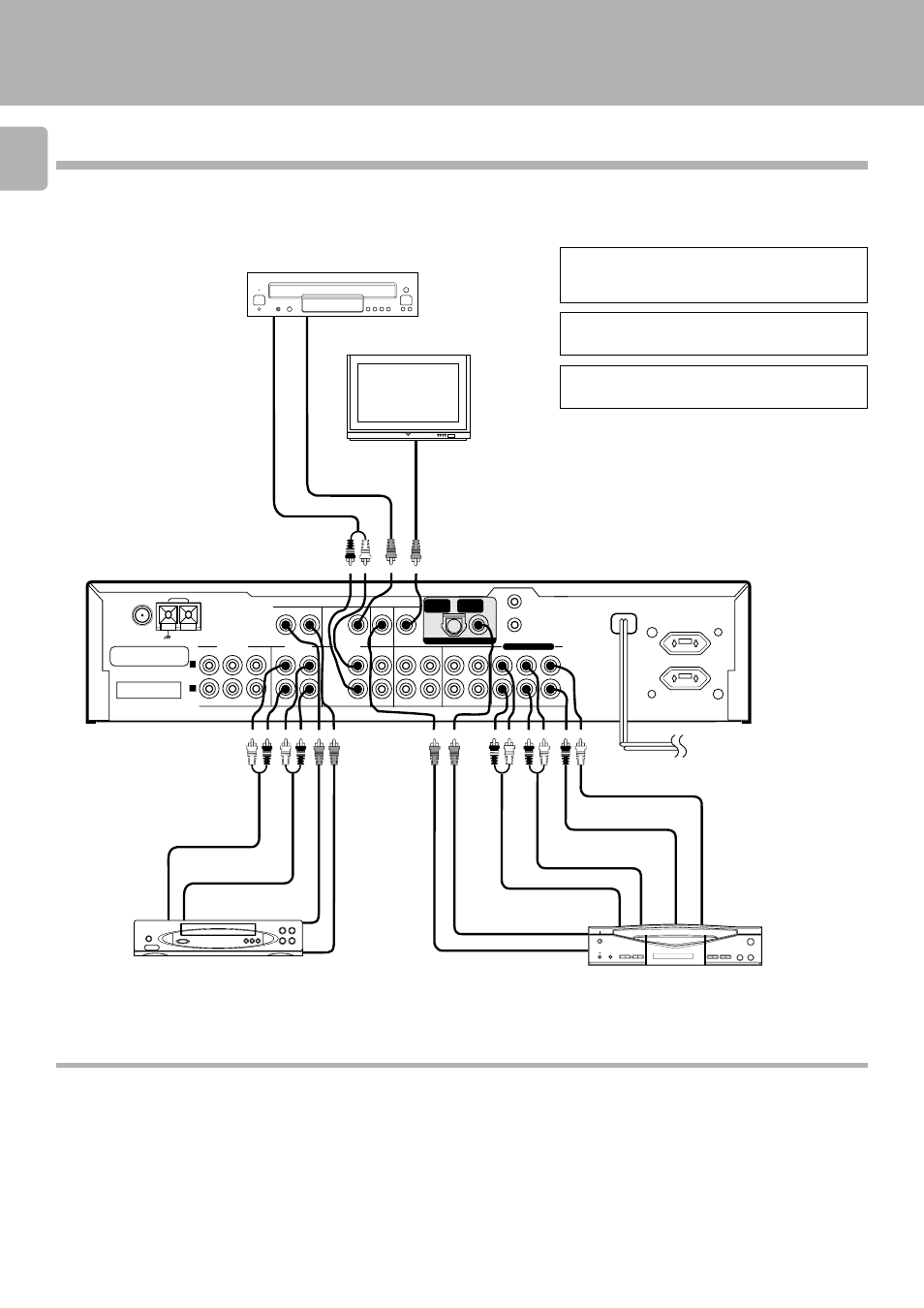

Connection of video components
(LD player, VCR, DVD)
Audio FRONT OUT
Audio SUBWOOFER OUT
Audio OUT
Audio IN
Video IN
Video OUT
DVD
VCR
Audio
OUT
Video
IN
Video
OUT
Audio DIGITAL OUT
Video OUT
Audio CENTER OUT
Audio SURROUND OUT
The connected components are given as examples because the avail-
able models vary depending on marketing areas.
Monitor TV
LD player *1
*1
When using an LD player of Series 21, connect it
to the DVD/6CH INPUT.
* 2
When using a cable or satellite tuner, connect it to
the VIDEO 2 input.
*2
When using DVD 6ch INPUT.
0
DTS disclaimer clause
DTS Digital Surround™ is a discrete 5.1 channel digital audio format available on CD, LD, and DVD software which consequently cannot be
decoded and played back inside most CD, LD, or DVD players. For this reason, when DTS-encoded software is played back through the
analog outputs of the CD, LD, or DVD player, excessive noise will be exhibited. To avoid possible damage to the audio system, proper
precautions should taken by the consumer if the analog outputs are connected directly to an amplification system. To enjoy DTS Digital
Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the digital output (S/PDIF, AES/
EBU, or TosLink) of the CD, LD or DVD player.
This unit is equipped with DTS Digital Surround™ decoder.
