8
Preparation section
L
R
A U X
I N
SPEAKERS(6–16 Ω )
GND
AM
ANTENNA
FM
75 Ω
+
-
L R
A U X
I N
L
R

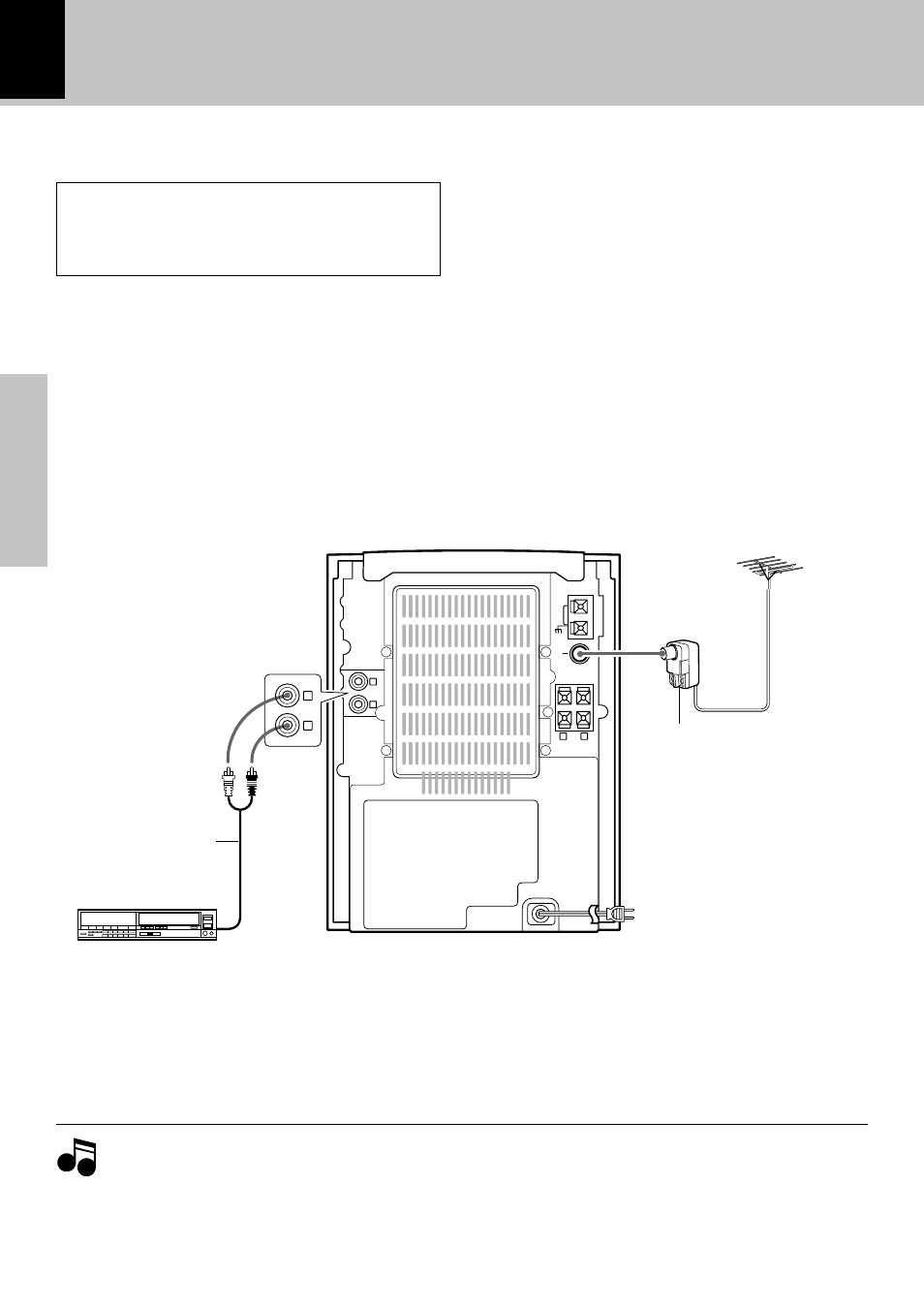

System connection
Connection of Other Accessories
(Commercially Available Parts)
FM outdoor antenna
Lead the 75
Ω
coaxial cable con-
nected to the FM outdoor antenna
into the room and connect it to the
FM 75
Ω
terminal. Please remove the
indoor antenna after an outdoor an-
tenna has been installed.
Antenna adaptor
(optional)
Audio cord
POWER cord
TO WALL AC OUTLET Audio output
VCR, Analog turntable with built-in
RIAA equalizer (optional P-110), etc.
CAUTION
Note on Connection
Connect the components as shown in the diagram.
Only plug the power cord into a power outlet once
connections are completed.
1.In case an associated system component is connected, also read the instruction manual of the component.
2.Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be produced
or noise may interfere.
3.Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may
result.
