System connections
SYSTEM
CONTROL
SYSTEM
CONTROL
SYSTEM
CONTROL
SYSTEM
CONTROL
SYSTEM
CONTROL
* 4
When this unit is connected to KENWOOD audio component system “SERIES 21”, also connect them through the system control cords to
allow system-control operations between components.

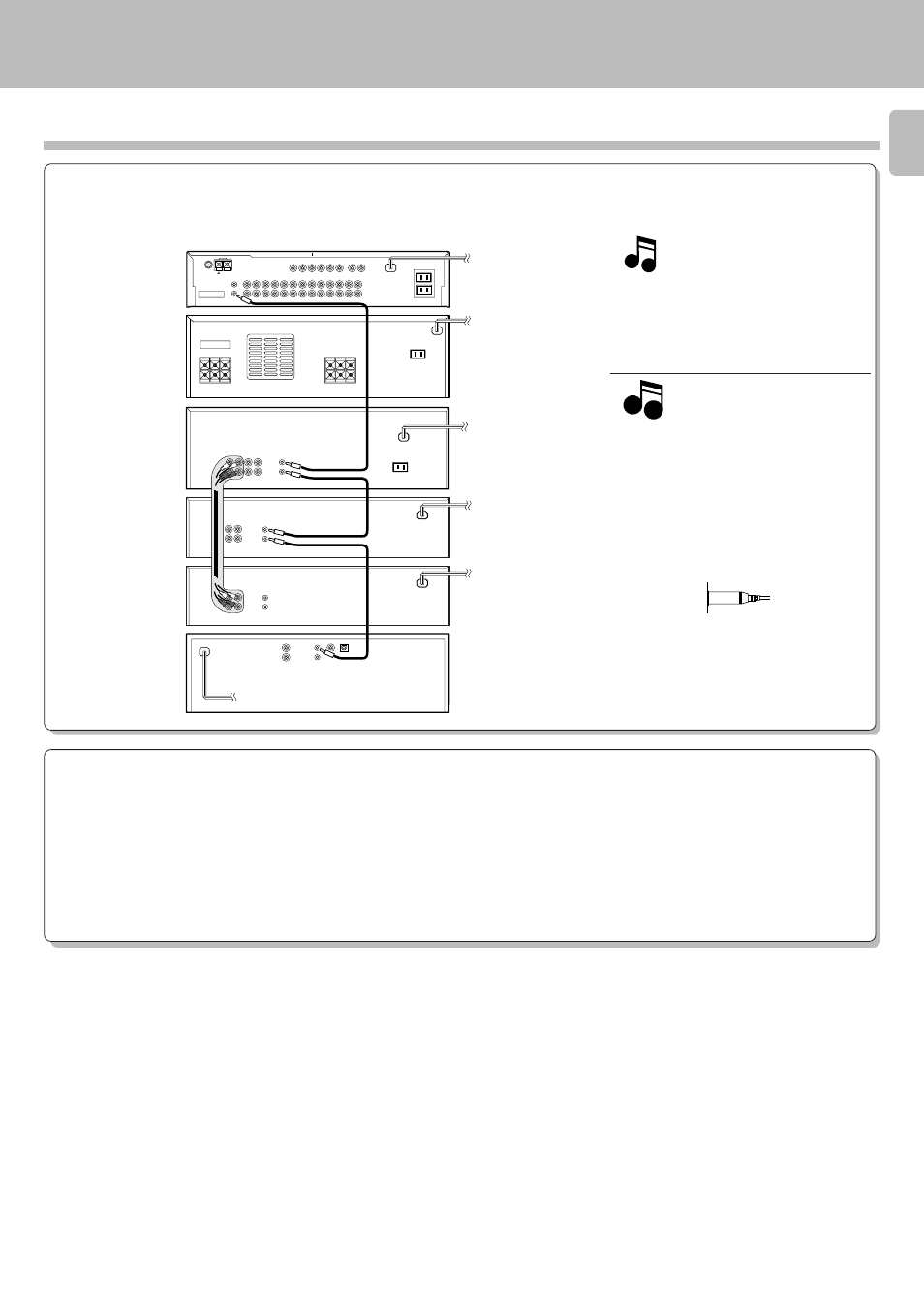

Connection example
The SERIES 21 components which can be
system-connected with this unit include the
LD player, MD recorder and DVD player.
1. Do not connect the SERIES 21 components
to other system components using system
control cords.
2. Do not connect system control cords to any
components other than those specified by
KENWOOD. It may cause a malfunction
and damage your equipment.
3. Be sure the system control plugs are in-
serted all the way in to the system control
terminals.
*4.When a cassette deck is connected to the
graphic equalizer,do not connect the sys-
tem control cord to the cassette deck.
About the system control operations
(Available operations when SERIES 21 components are connected through system control cords)
Notes Notes
About the system control connections
POWER
AMPLIFIER
GRAPHIC
EQUALIZER
CASSETTE
DECK 1
CASSETTE
DECK 2
CD
PLAYER
AV
CONTROL
CENTER
Remote Control
Lets you operate source components with the system remote supplied with AV CONTROL CENTER.
Automatic Operation
When you start playback from a source component, the input selector on AV CONTROL CENTER switches to that component automatically.
(Except TAPE 2)
Synchronized Recording
Lets you synchronize recording with the start of playback when recording from CD or LD .
System
control cord
System
control cord
System
control cord
