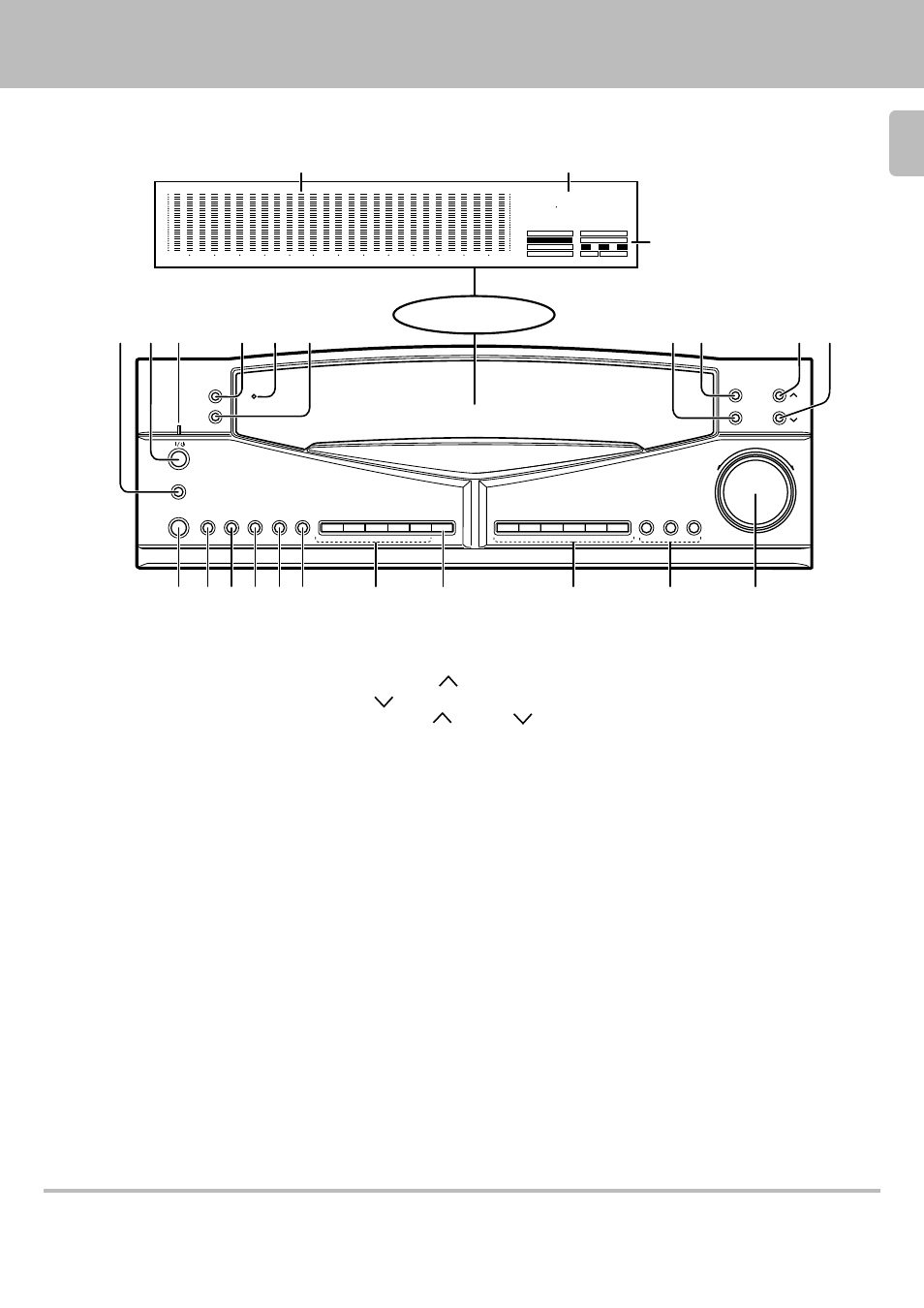

Names and functions of parts
Indicators
EQ. ON
GRAPHIC
MEMORY
PARAMETRIC
MANUAL
F1, F2, F3
REFERENCE
WIDE/NARROW
STANDBY indicator
While standby mode is indicated, a small amount of power is supplied to the system to back up the memory. In this mode, the
system can be turned ON by remote control.
1
MAIN POWER key
Switch the unit ON mode.
2
ON/STANDBY key
Switch the unit between ON mode
and STANDBY mode.
3
Standby indicator
Lights up to indicate that a small
amount of current flows in the unit.
4
PATTERN key
Press to enter or quit the genre mode.
5
TAPE indicator
Lights up when the TAPE key is
pressed to ON.
6
PAUSE key
Press to let an equalizer curve pause
temporarily.
7
WIDE/NARROW key
Each press of the key switches the
curve slope alternately between WIDE
and NARROW.
8
GRAPHIC/PARAMETRIC key
GRAPHIC: Select this mode when
adjusting an equalizer curve.
PARAMETRIC: Select this mode
when creating an equalizer curve ac-
cording to center frequencies.
*
MEMORY key
Press this key when registering a user-
created equalizer pattern.
(
Genre keys
Press in the genre mode to select the
desired music genres and their equal-
izer patterns.
)
Frequency keys (F1, F2, F3)
Each key can store a desired center
frequency.
¡
FREQUENCY JOG knob
Rotate the control knob to adjust the
frequency band (range).
90 EQ. LEVEL
(UP)
/
(DOWN) keys
Press the
(UP) or
(DOWN)
key to increase or decrease the equal-
izer level.
!
EQ. EFFECT key
Press to turn the equalizer mode ON
and OFF.
@
TAPE key
Use when playing back or recording a
tape.
#
DISPLAY key
Press to switch the display mode or to
select the demonstration mode.
$
REVERSE key
Press to reverse an equalizer curve.
%
FLAT key
Press to make an equalizer curve flat.
^
MANU./REF. key
Press to switch the manual and refer-
ence functions alternately.
&
Preset keys (1 to 5)
Typical equalizer patterns have been
preset under these keys so that you
can select any one of them easily.
TAPE
ON/STANDBY
EQ.EFFECT
GRAPHIC/
PARAMETRIC
MAIN POWER
TAPE
DISPLAY REVERSE
FLAT MANU./REF.
PAUSE
PATTERN
1
2
3
F1
F2
F3
4
5
MEMORY
POP./1
ROCK/2
JAZZ/3
BYPASS
CAR
H.P.ST.
FUSION/4 CLASSIC/5
MOVIE
WIDE/NARROW
EQ.LEVEL
FREQUENCY JOG
3
2
1
4 5 6
8
7
9 0
! @ # $ % ^
&
*
(
)
2.5k
3.9k
6.3k
10k
16 k
400
625
1k
1.5k
250
40
63
98
160
EQ. ON
MANUAL
REFERENCE
GRAPHIC
PARAMETRIC
F1
F2
F3
NARROW
WIDE
* * * * * *
MEMORY
¡
-
ON
–
OFF
Graphic equalizer display
Spectrum analyzer display
Character display
Display
Character display
Frequency display
indicator
