iv
The above are additional trademarked names appearing in
this manual. All other products named are trademarks of
their respective companies.
Unpacking
If any accessories are missing, or if the receiver is damaged or fails to operate, notify your dealer immediately. If your receiver was shipped to
you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and packing materials in case you need
to move or ship the receiver in the future.

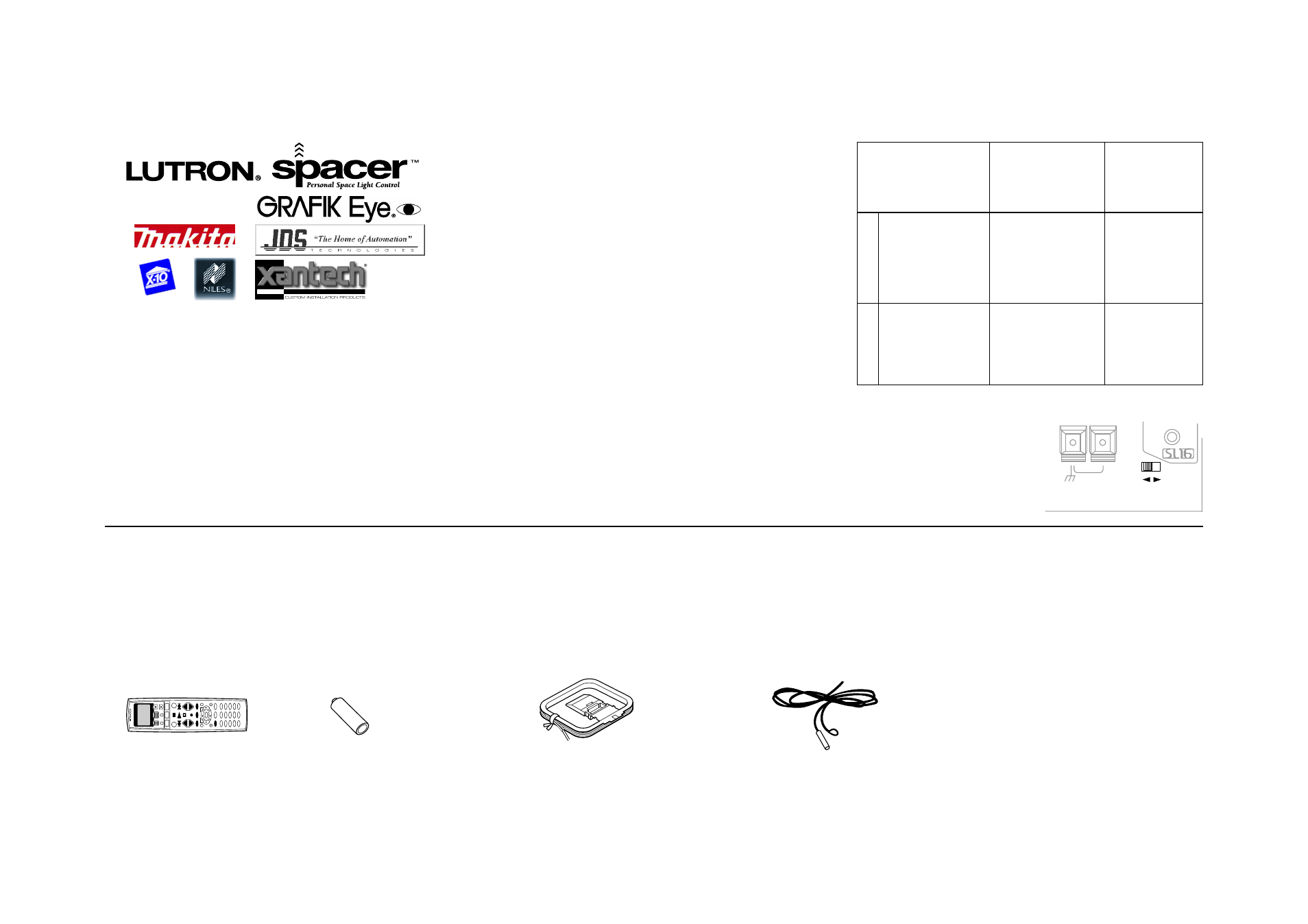

Unpack your new receiver carefully and make sure that all the accessories are present:
Remote Control unit Batteries
AA (R6)
×
4
AM Loop Antenna FM Antenna
2WAY LCD REMOTE CONTROL UNIT + -
+ -
12
3
45
6
78
9
10
11
12
+10
0
+100
/ 8 / 7
1
1
CHANNEL SPACE / DE-
EMPHASIS Switch
Not present for U.K. and Australia
The CHANNEL SPACE/ DE-EMPHASIS switch on the rear
panel is set to the correct setting that prevails in the area to
which the unit is shipped. However, if the CHANNEL
SPACE/ DE-EMPHASIS setting is not matched to the area
where the unit is to be used; for instance, if you move from
area 1 to area 2 as shown in the table to the right or vice
versa, desired reception of AM/ FM broadcasts is not ex-
pected. In this case, change the CHANNEL SPACE/ DE-
EMPHASIS setting in accordance with the area correspond-
ing to the table. The CHANNEL SPACE/ DE-EMPHASIS is
switched over at the same time.
• When changing the setting of the CHANNEL SPACE/
DE-EMPHASIS switch, first unplug the power cord, and
then reset the switch, plug the power cord back in, and
turn the power switch on.
CHANNEL SPACE
DE-EMPHASIS switch
Area
CHANNEL
SPACE freq.
DE-
EMPHASIS
USA, Canada,
and South
American
Countries
Other
Countries
1
2
FM : 100 kHz
AM : 10 kHz
FM : 50 kHz
AM :
9 kHz
75
µ
s
50
µ
s
ANTENNA
GND
AM 50 µ s
FM 50kHz
AM 9kHz
75 µ s
FM 100kHz
AM 10kHz
DE-EMPHASIS
CHANNEL SPACE
