Specifications
Chapter Five : Specifications
Digital Audio Section
Sampling Frequency ............. 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
Input Level / Impedance / Wavelength
Optical ........................ -15 dBm ~ -21 dBm, 660 nm +30 nm
Coaxial ............................................................ 0.5 Vp-p / 75
Ω
Output Level / Impedance / Wavelength
Optical ........................ -15 dBm ~ -21 dBm, 660 nm +30 nm
Video Section
Video Inputs / Outputs
Video (composite) ............................................. 1 Vp-p / 75
Ω
S Video ( luminance signal) .............................. 1 Vp-p / 75
Ω
(chrominance signal) .................. 0.286 Vp-p / 75
Ω
Component (luminance signal) ....................... 1 Vp-p / 75
Ω
(Cb/Cr-signal) ............................ ±0.350 Vp-p / 75
Ω
FM Tuner Section
Tuning Frequency Range ........................... 87.5 MHz ~ 108 MHz
Usable Sensitivity (Mono)
.................... 1.3
µ
V (75
Ω
) / 13.2 dBf (75 kHz dev., sinad 30 dB)
50dB Quieting Sensitivity
Stereo .............................................. 25.1
µ
V (75
Ω
) / 39.2 dBf
Total Harmonic Distortion (1 kHz)
Mono ................................................... 0.3 % (71.2 dBf input)
Stereo ................................................... 0.5 % (71.2 dBf input)
Signal to Noise Ratio (1 kHz, 75 kHz DEV.)
Mono ................................................... 75 dB (71.2 dBf input)
Stereo .................................................... 70 dB (71.2 dBf input)
Stereo Separation (1 kHz) ................................................. 40 dB
Selectivity (+400 kHz) ....................................................... 50 dB
Frequency Response ................ 30 Hz ~ 15 kHz, +0.5 dB, -3.0 dB
AM Tuner Section
Tuning Frequency Range
9kHz step ............................................... 531 kHz ~ 1,602 kHz
10kHz step ............................................. 530 kHz ~ 1,610 kHz
Usable Sensitivity (30 % mod., S/N 20 dB)
........................................................................... 16
µ
V / (500
µ
V/m)
Signal to Noise Ratio (30 % mod. 1 mV input) ............... 50 dB
General
Power consumption .......................................................... 500 W
AC outlet
Switched (except for Australia) .............. 2 (total 90 W max.)
Switched (for Australia) .......................... 1 (total 90 W max.)
Dimensions .................................................................. W : 480mm
H : 191mm
D : 416mm
Weight (Net) ..................................................................... 16.8 kg
Kenwood follows a policy of continuous advancements in
development. For this reason, specifications may be changed
without notice.
Full performance may not be exhibited in extremely cold
locations (below 0 deg. C).

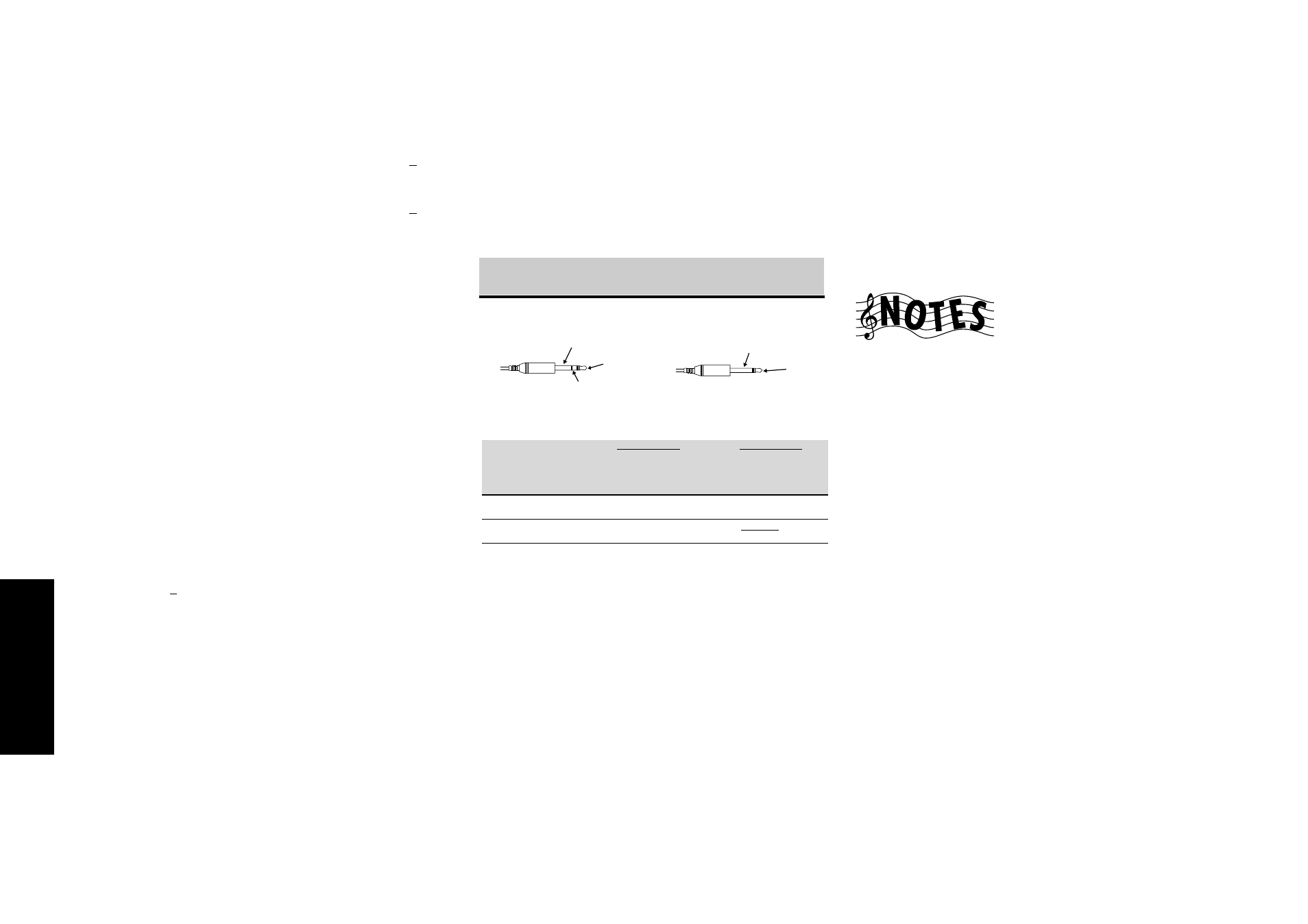

SHAPE OF PLUG TO BE CONNECTED:
IR IN/OUT SPECIFICATION:
General
Power consumption .......................................................... 500 W
AC outlet
Switched ................................................... 2 (total 90 W max.)
Dimensions .................................................................. W : 440mm
H : 191mm
D : 416mm
Weight (Net) ..................................................................... 16.8 kg
IR Receiver In
To Tip Signal Signal
To Ring Ground
To Sleeve +12V Ground
IR Out LCD
Remote
Terminal
IR Receiver In and IR Out
LCD Remote DVD Control
Stereo mini plug Mono mini plug
Sleeve
Sleeve
Ring
Tip Tip
IR Receiver In Terminal
Maximum Output Current ............................................ 20 mA
Operating Voltage .............................................................. 12 V
Output Impedance .......................................................... 470
Ω
IR Out LCD Remote Terminal
Maximum Output Current ............................................ 20 mA
Operating Voltage ................................................................ 5 V
Output Impedance .......................................................... 470
Ω
