Chapter One : Connecting Your Devices
Connections
Connecting a Camcorder or Additional VCR
This section focuses on the connections from your
camcorder or VCR to the front of the KRF-X7775D. Please
refer to your camcorder or VCR’s instructions for more de-
tail about its connection jacks and capabilities.
These instructions describe how to connect a camcorder or
VCR quickly and probably temporarily to the front of the
receiver. If you want a less cluttered and more permanent
connection, see “Can I Connect an Additional VCR Perma-
nently?”, below.
To Connect a Camcorder or Additional VCR:

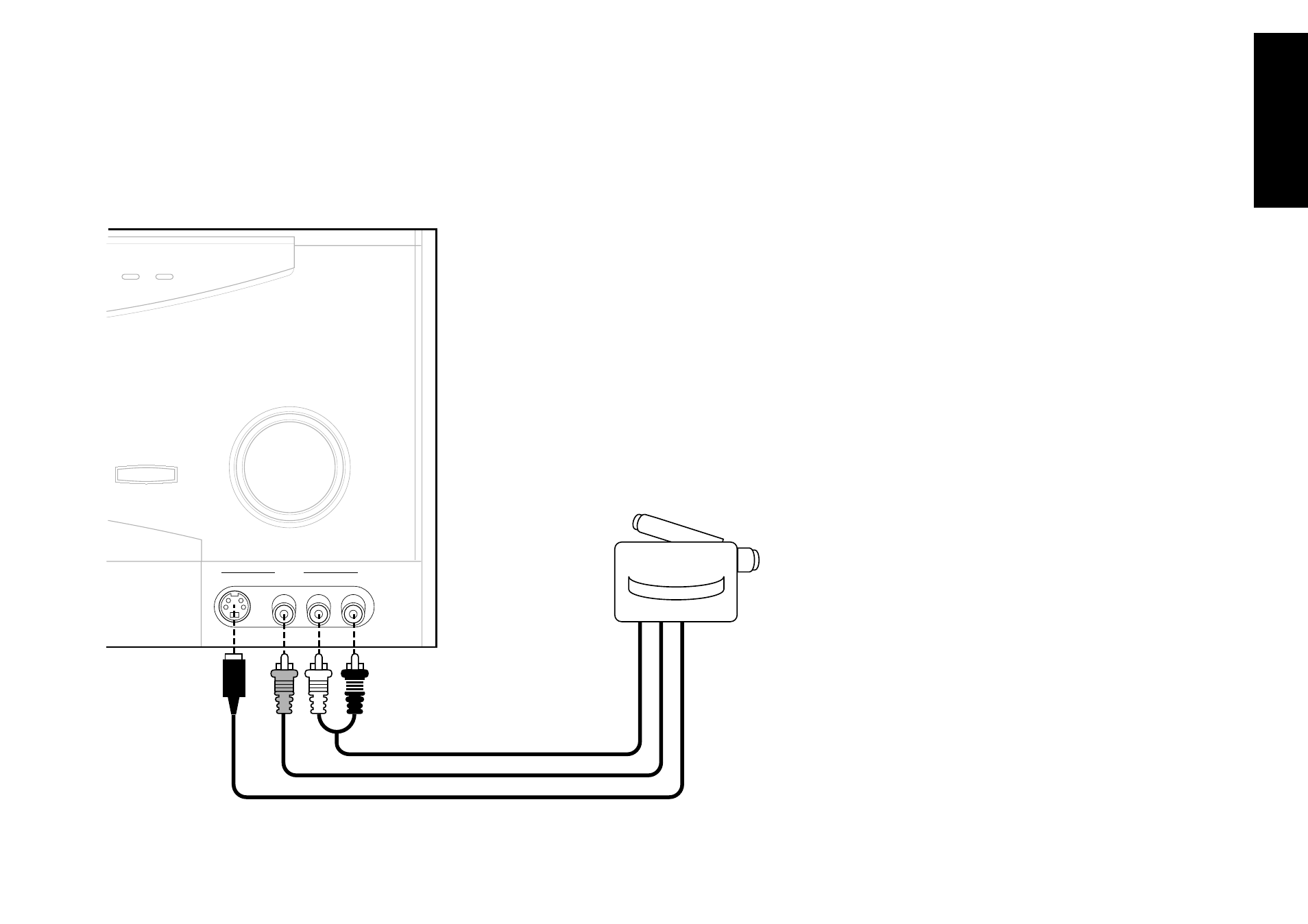

Connect the audio and video cables from the camcorder or
VCR’s Audio and Video jacks to the receiver’s front panel
jacks as shown to the left.
Can I Connect an Additional VCR
Permanently?
Yes. To do so, follow the instructions under “To Connect a
Secondary VCR:” on page␣ 15.
VOLUME CONTROL
DOWN UP
S VIDEO VIDEO L - AUDIO - R
CD2/TAPE2
MONITOR
CLIP
INDICATOR
AV AUX
VIDEO OUT
S-VIDEO OUT
AUDIO OUT
(or additional VCR)
