Kenwood KRF-X7775D - Manual (Page 124)

30
Chapter One : Connecting Your Devices
Connections
Connecting Your Turntable/Record Player
OPTICAL
CD1
DVD DVD
VIDEO
2
VIDEO
3
DIGITAL IN
COAXIAL
DIGITAL OUT
VIDEO
3 IN
COMPONENT VIDEO
DVD
IN
MONITOR
OUT
MONITOR
OUT
PLAY
IN
PLAY
IN
PLAY
IN
REC
OUT
REC
OUT
PLAY
IN
S VIDEO VIDEO
PRE OUT ZONE B PRE OUT
R L AUDIO
R L FRONT R L SURROUND R L R L SURROUND BACK SUB WOOFER CENTER VIDEO
R L
B
A
AUDIO
VIDEO1
VIDEO2
VIDEO3
DVD FRONT
DVD/
6CH.
INPUT
SURROUND
CENTER SUBWOOFER
PHONO
CD1
REC
OUT
PLAY
IN
MD/
TAPE1
REC
OUT
PLAY
IN
CD-R
REC
OUT
PLAY
IN
CD2/
TAPE2
MONITOR
ANTENNA
GND
AM
FM 75 Ω
REMOTE
IR OUT
LCD
REMOTE
IR RECEIVER
IN
IR RECEIVER
IN
DVD CONTROL
DC12V 20mA
DC12V
20mA
A
FM
Y
C B
C R
Y
C B
C R
Y
C B
C R
IR OUT
LCD
AUDIO OUT
GND
Do not plug in the receiver to AC power until you have
connected all your devices.

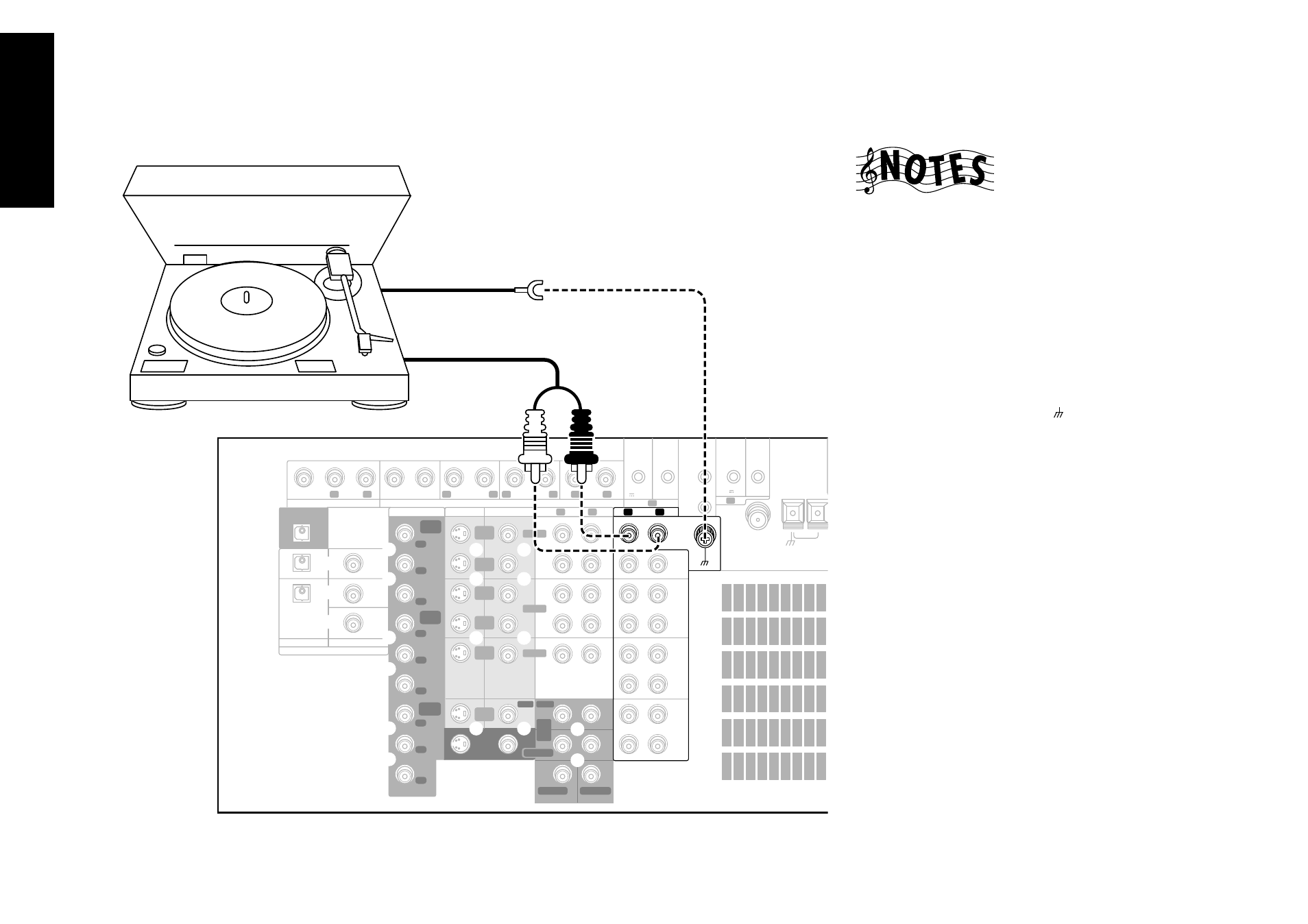

This section focuses on the connections from your turntable/
record player to the KRF-X7775D. Please refer to your turn-
table/record player’s instructions for more detail about its
connection jacks and capabilities.
To Connect a Turntable/Record Player:
1. Connect the audio cables from the turntable audio out-
put jacks to the receiver’s PHONO R and L jacks.
2. If your turntable includes a ground cable, connect the
ground cable to the receiver’s (ground) jack.
