20

CONTENTS

TS-590S

4 DSP

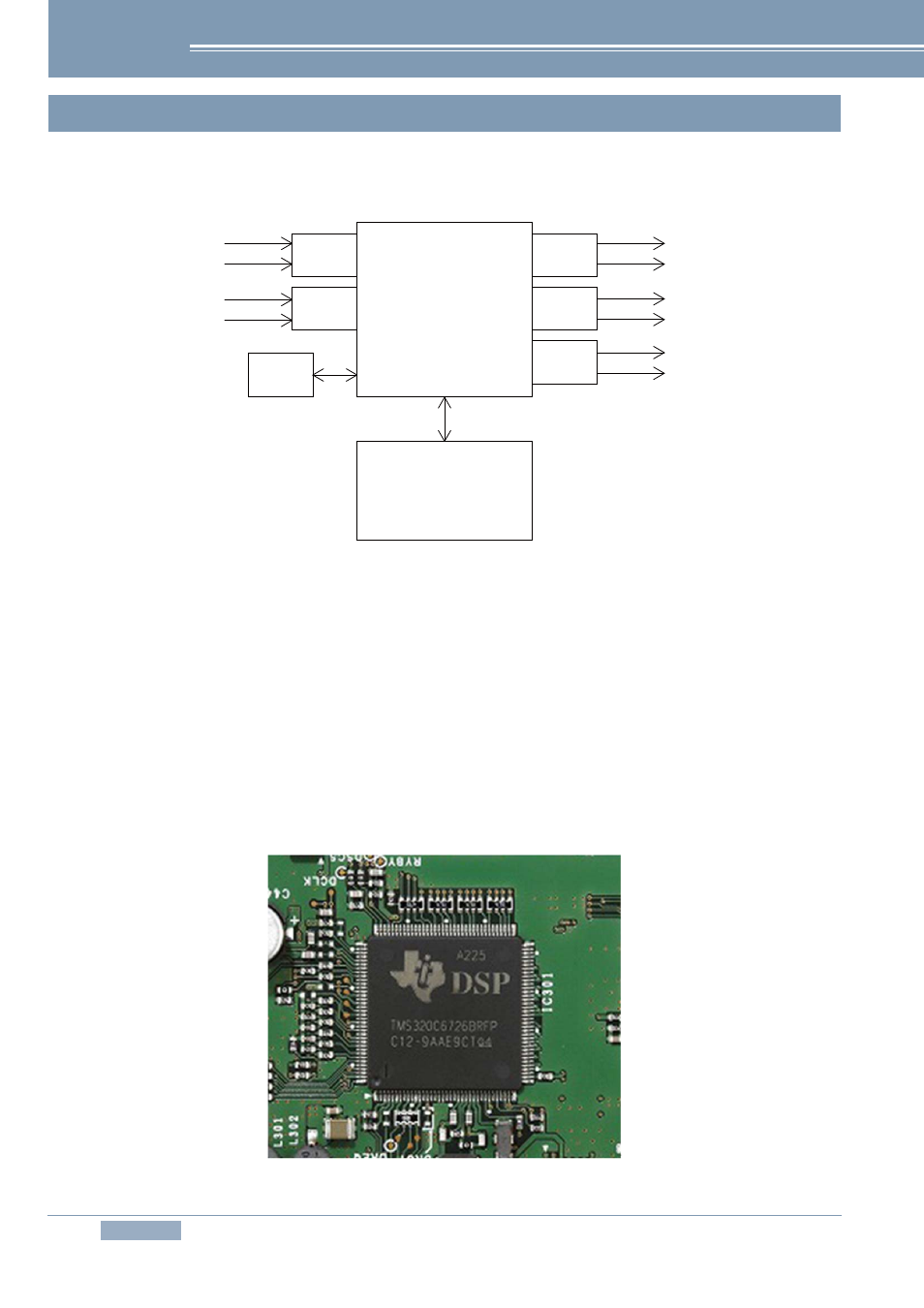

Figure 4-1 describes the DSP

*1

of the TS-590S and peripheral devices connected to the DSP

including ADCs

*2

and DACs

*3

.

Figure 4-1 TS-590S DSP and Peripheral Devices

*1

DSP: digital signal processor

*2

ADC: A/D converter

*3

DAC: D/A converter

The heart of the signal processing function is a 32-bit floating point TMS320C6726B DSP from Texas
Instruments Incorporated (Figure 4-2) and it is operated at the clock frequency of 221 MHz.
For ADCs placed at the receive IF signal input and the microphone input, 24-bit ΔΣADC AK5385Bs
from AKM Semiconductor, Incorporated are placed, and for DACs placed at the transmit IF signal
output and at the audio output, 24-bit ΔΣDAC AK4382As also from AKM Semiconductor,
Incorporated are placed. For other applications such as at the external terminals, USB audio, and
audio input to and output from the optional VSG-1, 24-bit ΔΣADCs and ΔΣDACs are implemented.
All these converters are operated at the sampling frequency of 96 kHz.

Figure 4-2 TMS320C6726B

4.1 Multipurpose 32-bit Floating Point DSP

ADC

AK5385B

DAC

AK4382A

DAC

AK4387

DAC

AK4387

ADC

WM8782

FLASH

MEMORY

VGS

䊶AO

MIC

RIF/DET

ANI/USB

䊶AI

µ com

AF

TIF/MOD

ANO

VGS

䊶AI

USB

䊶ANO

AGCV

DSP

TMS320C6726B

221.184 MHz
