Kodak i30 / i40 - Manual (Page 31)

28 A-61512 May 2006

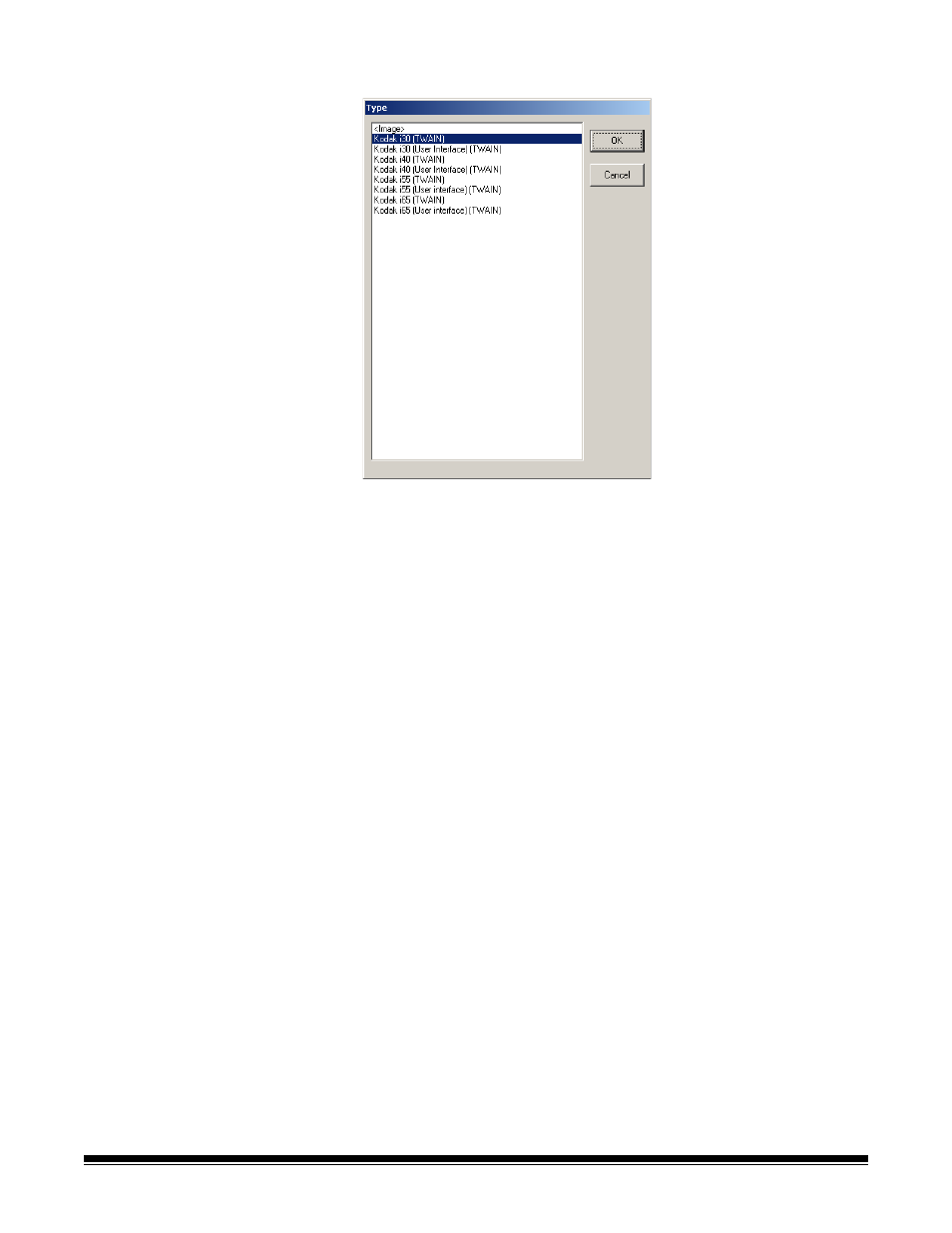

The Type dialog box will be displayed:
6. Select either Kodak i30 (TWAIN) or Kodak i40 (TWAIN) from the
Type dialog box.
IMPORTANT:Do not select Kodak i30 (User Interface) (TWAIN) or
Kodak i40 User Interface (TWAIN).
7. Click OK on the Type dialog box.
8. On the Scanner dialog box, select the appropriate scanning
parameters for your scanning needs (e.g., Resolution [300 dpi is
best for OCR], black-and-white, Duplex [Kodak i40 Scanner only]).
9. Click OK.
10. Save the configuration by selecting File>Save Settings. The
configuration should be saved to: C:\program files\Kodak\Document
Imaging\KDSi3040.IBT.
11. Close the application. The Readiris: Create PDF application is now
ready to use.
