3-13

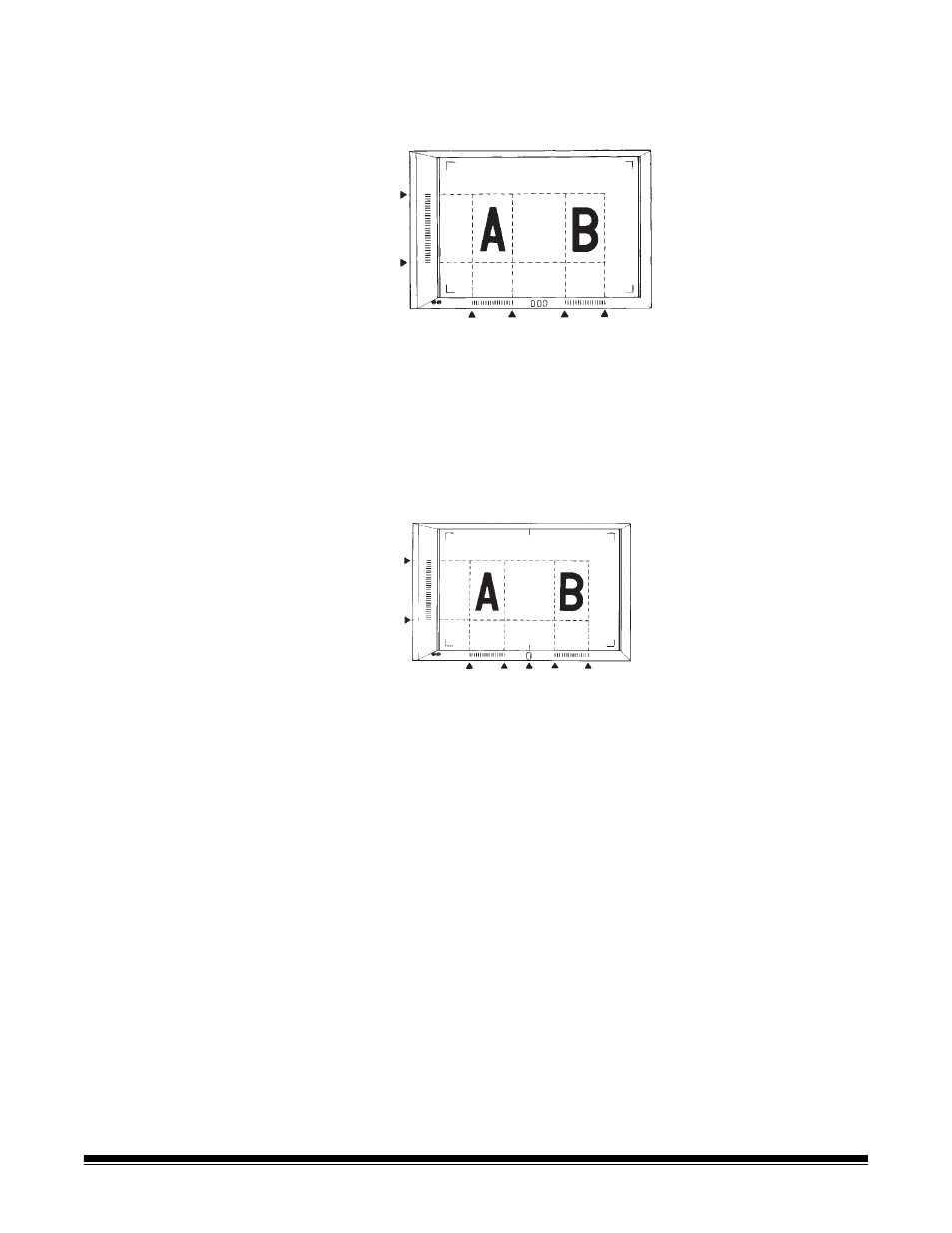

Defining two separate areas

Define the areas to print by specifying the vertical and horizontal areas
as follows: 2 end points for vertical and 4 end points for horizontal.

NOTE: The points defining the vertical and horizontal area can be

selected in any order. Blinking lights on the indication panels
indicate an improper entry of the specified area.

Defining Page-by-Page Print Area

• Using the vertical and horizontal points on the Area Indication panels,

define the print areas of the image on the screen.

NOTES:

• The horizontal indicator marked A does not light up and cannot be

used for defining an area.

• Four different areas cannot be defined on a single page.

• If the Area keys start blinking when the Print key is pressed, it

indicates that the print area defined is not available. Specify the area
again.

• Paper must be 11 x 17” (A3) when defining two areas and 8 1/2 x 11”

(A4) when defining Page-by-Page print areas.

• Paper can be of any size when defining one area.

• The print area, once defined, is stored in memory for each paper size

and print position. Press the Area Clear key to clear the area setting.
