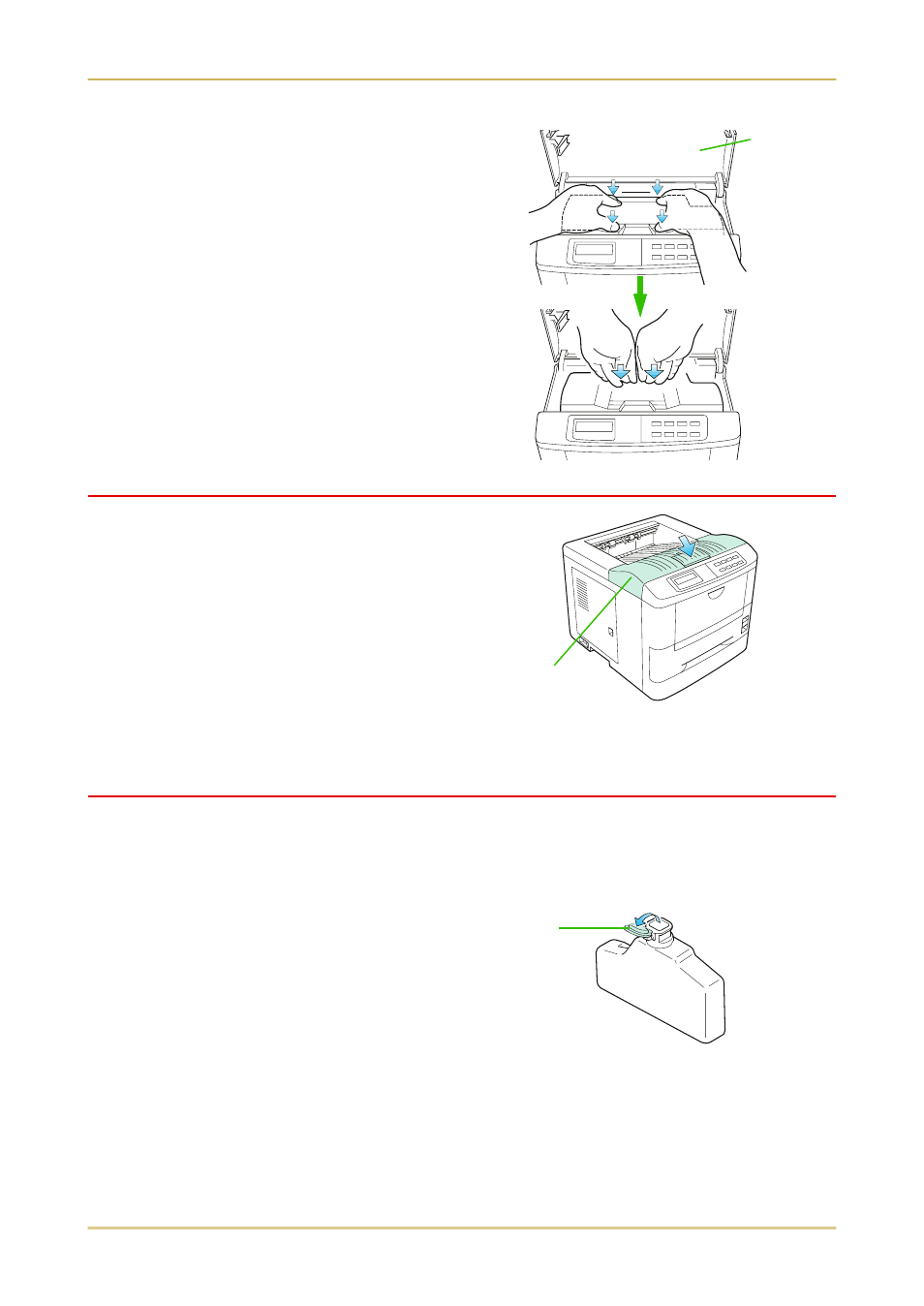

5. When the toner container is installed correctly

on the developer, push the top of the con-
tainer unit ("PUSH HERE") until it locks in.

☛

Make sure that the toner container is
properly locked in the printer.

3—Close the Top Cover

Close the top cover by pressing the arrowed part in
this diagram.

4—Install the Waste Toner Bottle

The waste toner bottle is in the toner kit supplied with the printer. The waste toner bottle must be
installed in the printer.

Install the waste toner bottle in the printer as follows.

1. Take the waste toner bottle from the toner kit

supplied.

☛

Do not cap the waste toner bottle.

Top Cover

Cap

Waste Toner
Bottle
