Sunrise Medical One-Arm Drive Quickie 2 - Manual (Page 54)

[03/2007]
PAGE 54 QUICKIE 2

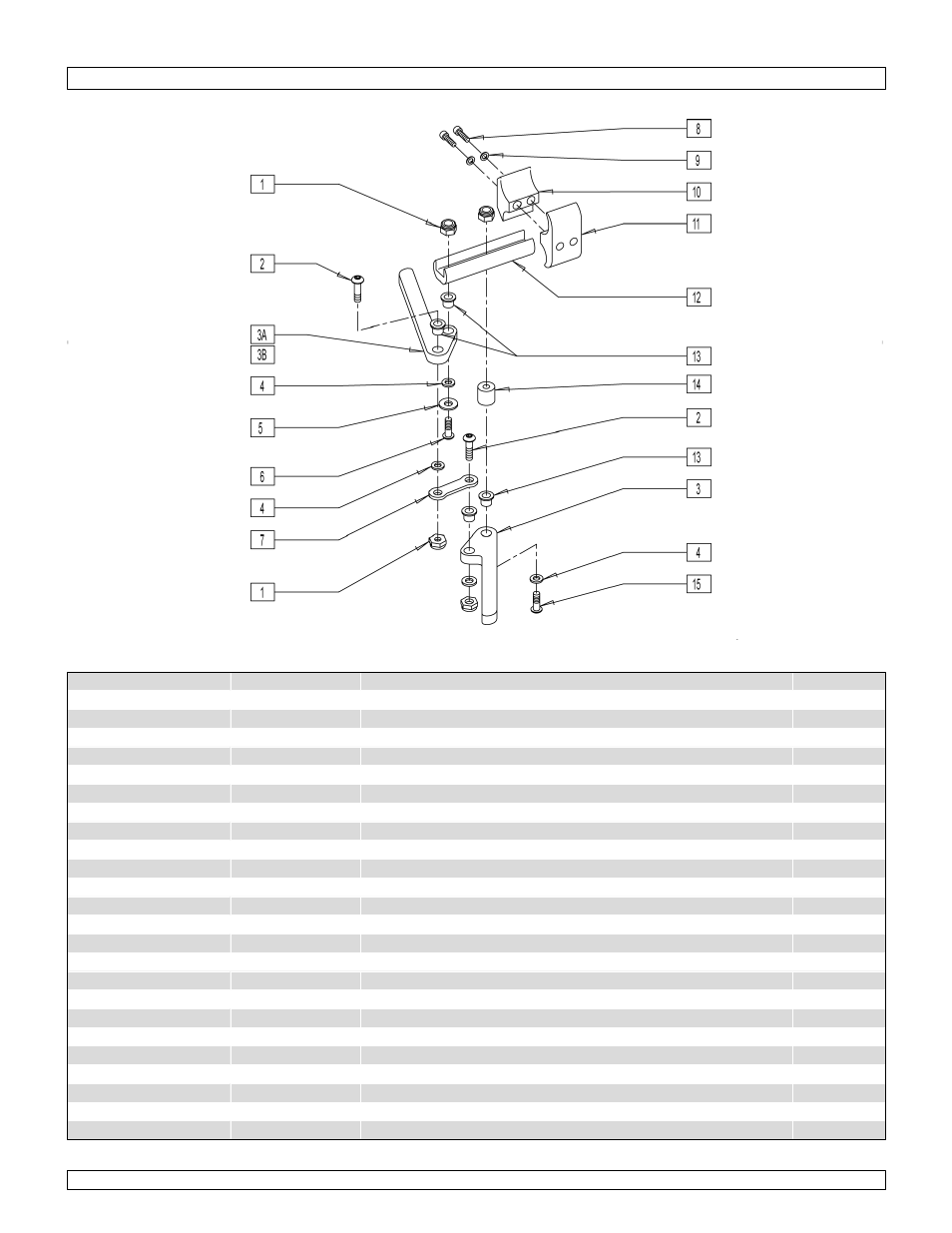

HIGH MOUNT SCISSOR WHEEL LOCK
Pos. Item Number Description Remarks
1 201100-QU 1/4-28 NYLOCK NUT THIN
2 226100 1/4-28 x 3/4 BH C/S
3A 550232 HI-MOUNT SCISSOR WHEEL LOCK ARM
3B 550231 HI-MOUNT SCISSOR WHL LOCK ARM LONG
4 561028 1/4? NYLON WASHER
5 262120 1/4 SAE WASHER
6 226122 1/4-28 x 1.10 BH C/S
7 504995 TOGGLE LINK 1.125
8 226112 1/4-28 x 1 SOC C/S BLK
9 262114 1/4 WASHER HI COLLAR LOCK ZN
10 550259 CLAMP 1 1/4? RECESS HALF CLR
11 550258 CLAMP 1 1/4? THREADED CLR
12 550374 WHEEL LOCK SLIDE BLOCK 3 1/2? BLK
13 560126 .250 ID .312 OD BUSHING PLASTIC
14 483027 1/4 x 1/4 ALUMINUM SPACER BLK
15 226130 1/4-28 x 1 1/2 BH C/S
8-11 880539 WHEEL LOCK CLAMP ASSEMBLY CLR
1,2,3A,4-7,12-15 880608 WHL LOCK R SCISSOR HI-MNT BLK
1,2,3A,4-7,12-15 880609 WHL LOCK L SCISSOR HI-MNT BLK
1,2,3A,4-15 901501 WHL LOCK SCISSOR R W/CLMP BLK
1,2,3A,4-15 901503 WHL LOCK SCISSOR L W/CLMP BLK
1,2,3A,4-15 901505 WHEEL LOCK SCISSOR W/CLAMP PAIR
1-2,3B,4-7,12-15 880612 WHLLCK R SCISOR HI-MNT LNG BLK
1-2,3B,4-7,12-15 880613 WHLLCK L SCISOR HI-MNT LNG BLK
