QUICKIE 2

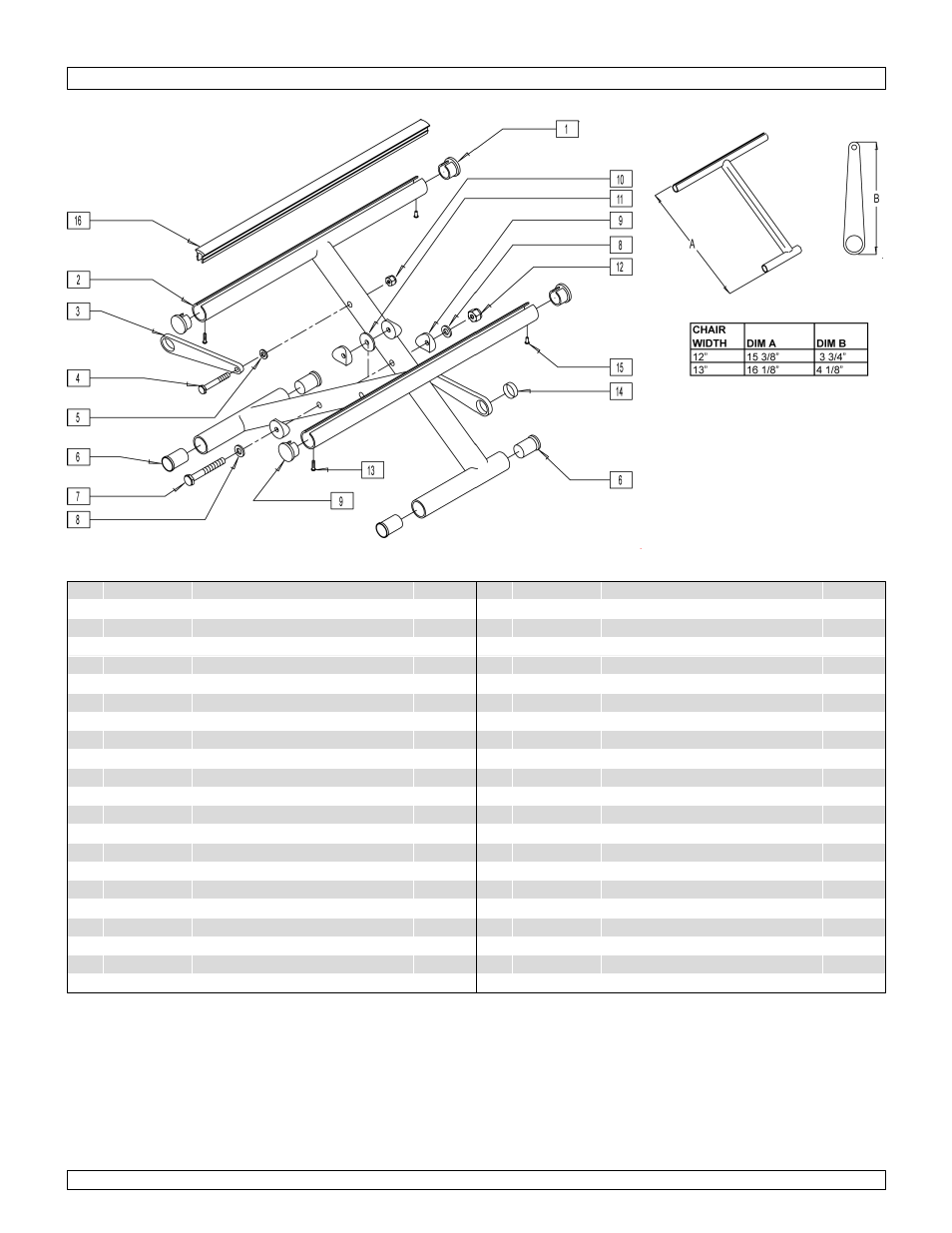

Q2 - Cross Tube Assm 11-13
Pos. Item Number
Description
Remarks
1
483553
SEAT RAIL END PLUG
3
923600
X-HINGE 12 (PR)
PAIR
3
923601
X-HINGE 13 (PR)
PAIR
4
221151-QU
1/4-28 x 1 3/4 G8 HEX C/S
5
561028
1/4? NYLON WASHER
6
560402
3/4? NY-LINER
7
226300
5/16-24 x 3 G8 HHCS
8
263110-QU
5/16 AN WASHER FLAT THIN
9
561006
1? SADDLE 5/16? HOLE
10
201110-QU
1/4-28 NYLOCK NUT
11
561016
1? WASHER 5/16? HOLE
12
202100-MJ
5/16-24 NYLOCK NUT THIN
13
281131
#10 3/8? SELF TAPPING SCREW
14
580200
TEFLON STRIP BEARING
15
240111
RIVET POP AD55H BLK
16
580020
SEAT RAIL INSERT STRIP 10
16
580021
SEAT RAIL INSERT STRIP 11
16
580022
SEAT RAIL INSERT STRIP 12
16
580023
SEAT RAIL INSERT STRIP 13
16
580024
SEAT RAIL INSERT STRIP 14
16
580025
SEAT RAIL INSERT STRIP 15
Pos. Item Number
Description
Remarks
16
580026
SEAT RAIL INSERT STRIP 16
16
580027
SEAT RAIL INSERT STRIP 17
16
580028
SEAT RAIL INSERT STRIP 18
1-15 673500
X-TUBE ASSM 11/12" X 10" CHNL
1-15 673501
X-TUBE ASSM 11/12" X 11" CHNL
1-15 673502
X-TUBE ASSM 11/12" X 12" CHN
1-15 673503
X-TUBE ASSM 11/12" X 13" CHNL
1-15 673504
X-TUBE ASSM 11/12" X 14" CHNL
1-15 673505
X-TUBE ASSM 11/12" X 15" CHNL
1-15 673506
X-TUBE ASSM 11/12" X 16" CHNL
1-15 673507
X-TUBE ASSM 11/12" X 17" CHNL
1-15 673508
X-TUBE ASSM 12" X 18" CHNL
1-15 673509
X-TUBE ASSM 13" X 10" CHNL
1-15 673510
X-TUBE ASSM 13" X 11" CHNL
1-15 673511
X-TUBE ASSM 13" X 12" CHN
1-15 673512
X-TUBE ASSM 13" X 13" CHNL
1-15 673513
X-TUBE ASSM 13" X 14" CHNL
1-15 673514
X-TUBE ASSM 13" X 15" CHNL
1-15 673515
X-TUBE ASSM 13" X 16" CHNL
1-15 673516
X-TUBE ASSM 13" X 17" CHNL
1-15 673517
X-TUBE ASSM 13" X 18" CHNL
