Sunrise Medical One-Arm Drive Quickie 2 - Manual (Page 27)

(04/2007)
QUICKIE 2 PAGE 27

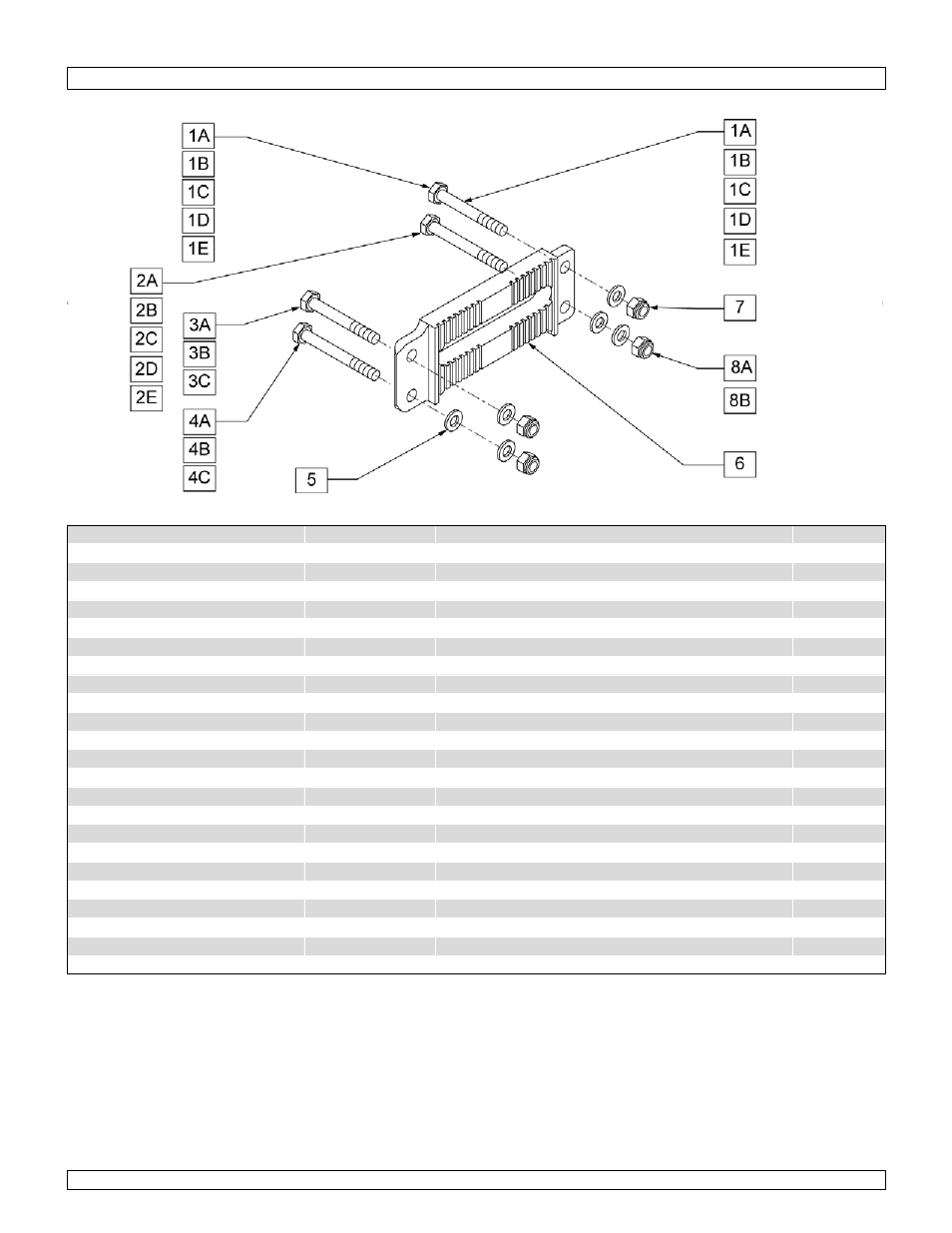

AXLE PLATE-OFFSET
Pos. Item Number Description Remarks
1A 330100 1/4-28 x 2 HEX C/S Ti
1B 221191 1/4-28 x 2 1/4 G8 HEX C/S
1C 221181 1/4-28 x 2 1/2 G8 HEX C/S
1D 330099 1/4-28 x 1 3/4 HEX C/S TI
1E 221151-QU 1/4-28 x 1 3/4 G8 HEX C/S
2D 330099 1/4-28 x 1 3/4 HEX C/S Ti
2A 330100 1/4-28 x 2 HEX C/S Ti
2E 221151-QU 1/4-28 x 1 3/4 G8 HEX C/S
2B 221181 1/4-28 x 2 1/2 G8 HEX C/S
2C 221193 1/4-28 x 2 3/4 G8 HEX C/S
3A 330100 1/4-28 x 2 HEX C/S Ti
3B 330099 1/4-28 x 1 3/4 HEX C/S TI
3C 221151-QU 1/4-28 x 1 3/4 G8 HEX C/S
4A 330100 1/4-28 x 2 HEX C/S Ti
4B 330099 1/4-28 x 1 3/4 HEX C/S TI
4C 221151-QU 1/4-28 x 1 3/4 G8 HEX C/S
5 262100-QU 1/4 AN WASHER FLAT
6 550645 OFFSET AXLE PLATE
7 262110-QU 1/4 AN WASHER FLAT THIN
8B 330000-QU 1/4-28 NYLOCK NUT ALUMINUM
8A 201110-QU 1/4-28 NYLOCK NUT
1E, 2E, 3C, 4C, 5, 6, 7, 8 920211 Q2 AXLE PLATE HARDWARE KIT Q2/2HP
1-7, 8B 920216 AXLE PLATE HARDWARE KIT HP/T2 Q2/HP
