DataNET Fiber Optic Connections
Duplex Fiber, 62.5/125 micron
1. Plug the DataNET Fiber Optic Coupler board into the selected single
Port board connector.
2. Connect the transmitter and receiver ports for the respective chan-
nel.

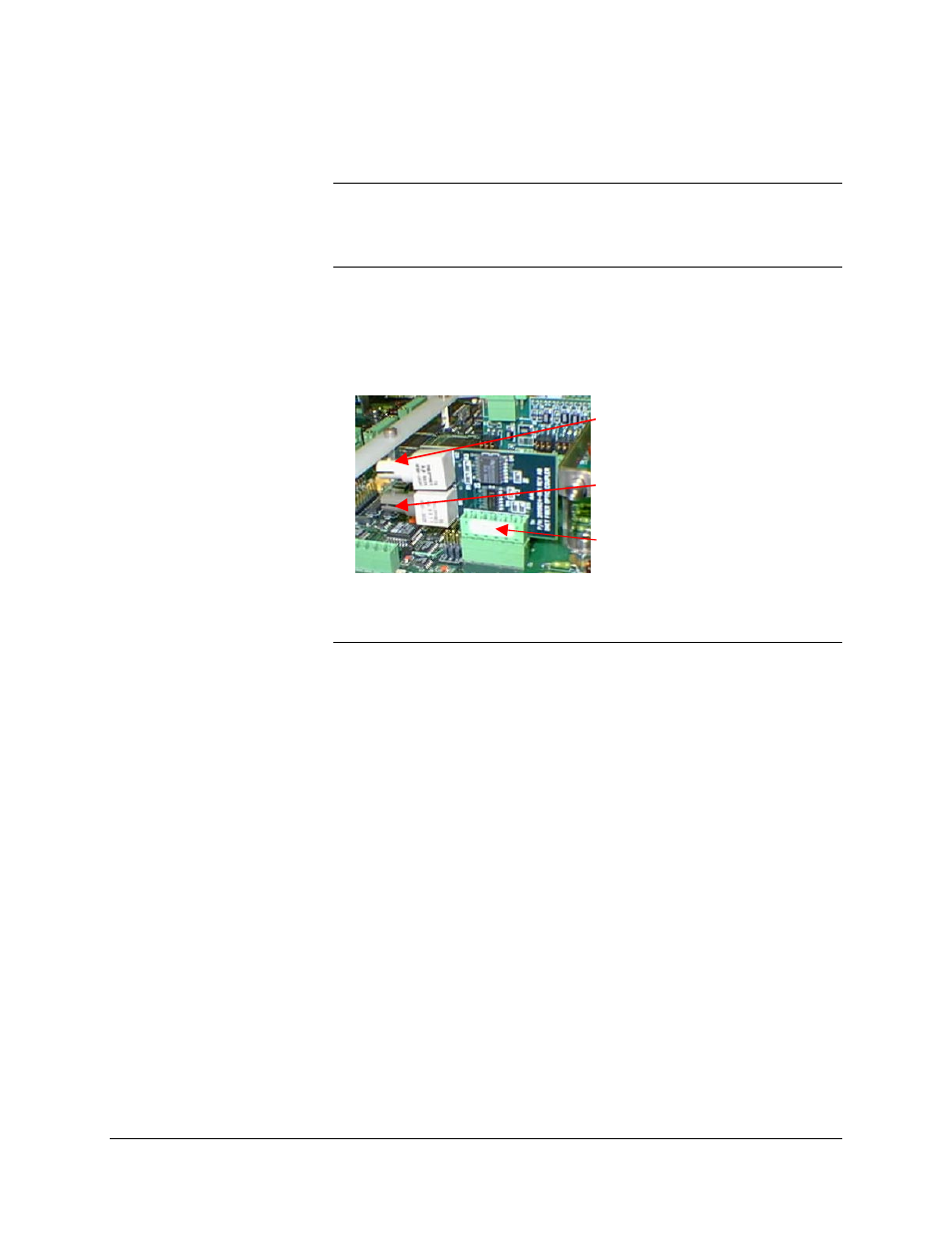

TX TRANSMIT PORT
RX RECEIVE PORT
PORT INTERFACE
CONNECTOR
Fiber Optic Cable
Type
Port Connections
