DataNET Hub Specifications, Continued
Figure 1-4
Description U.S.
Inches Metric
mm
A Wall Width 17.48 444
B Wall Mount Holes Horizontal Spacing 15.59 396
C Wall Mount Holes Verticle Spacing 17.72 450
D Wall Height Including Cable Housing 24.04 611
E Wall Height w/o Cable Housing 16.32 415
F Wall Mount Total Depth 7.81 199
G Wall Mount Depth Case Only 6.91 176

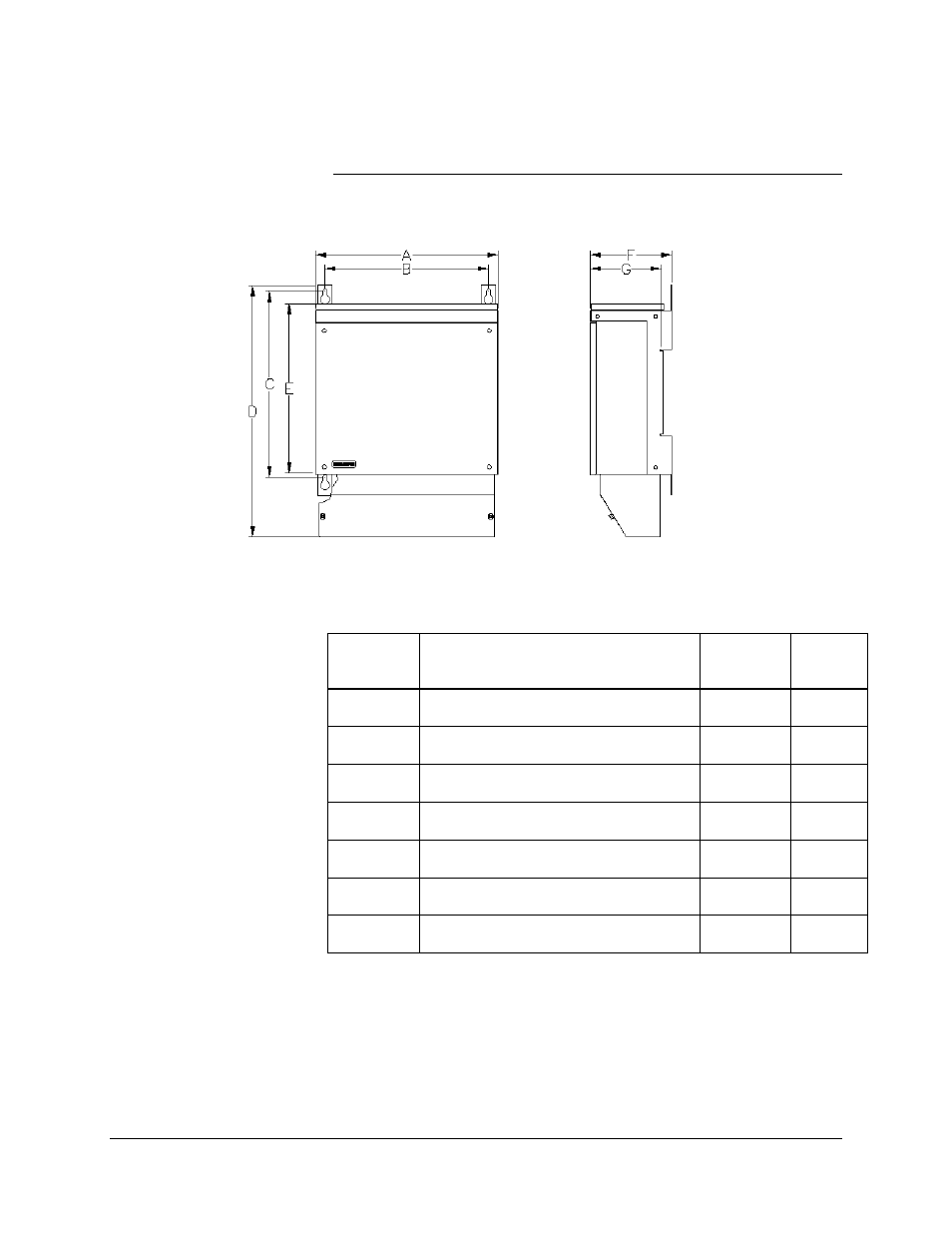

Figure 1-6. Wall Mount
Dimensions
Dimension Table
