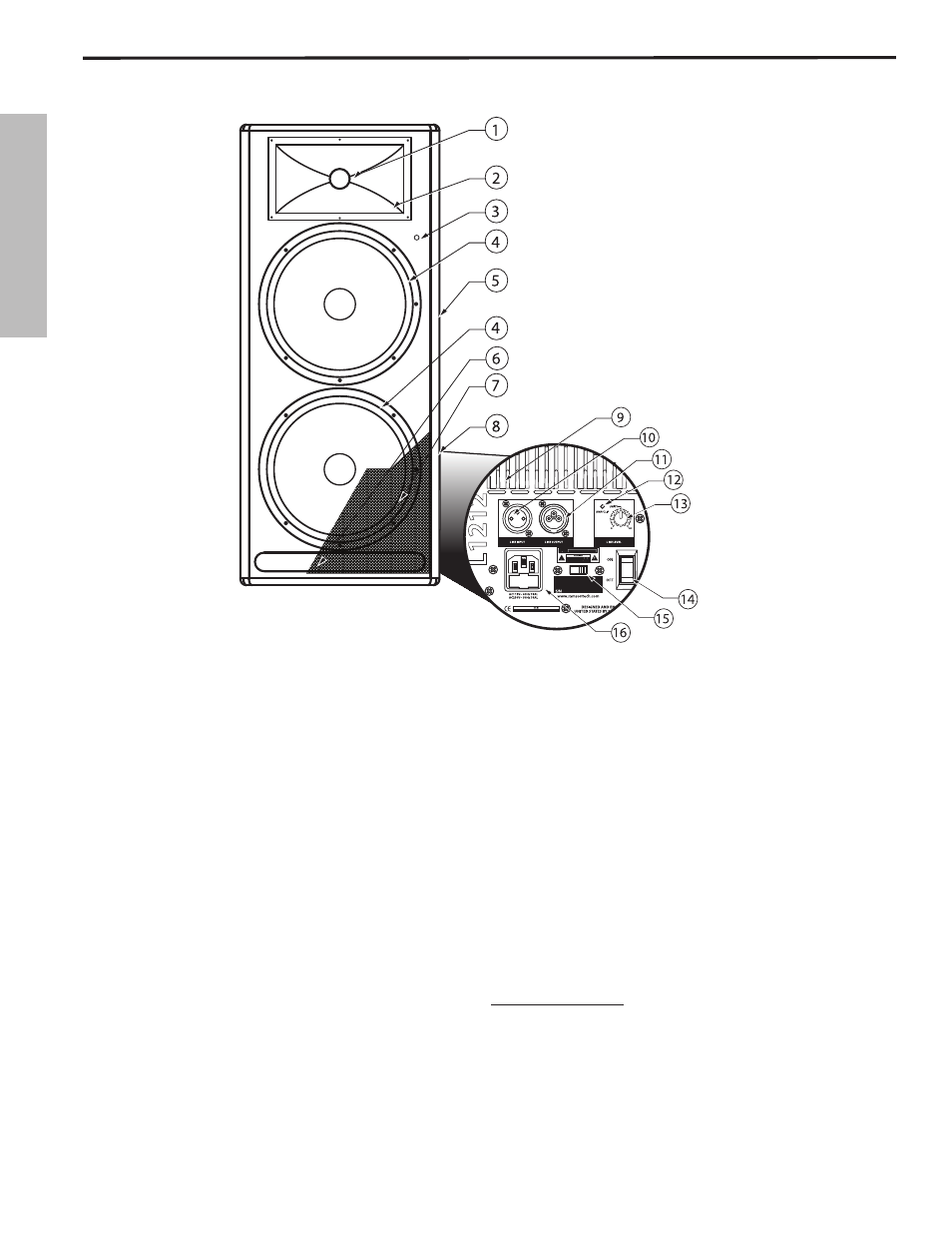

L1212 and L1215 Layout
1. Titanium Compression Driver – 1.75 inch (44mm),
titanium diaphragm with 1 inch opening.
2. Wide Dispersion Horn – 1 inch throat, 60 x 90 degree
wide dispersion horn provides extensive coverage and
linear off- axis response.
3. Power LED – Blue Light Emitting Diode illuminates
indicating the unit is powered on and ready for
operation.
4. Low Frequency Driver - 12-inch and 15-inch woofers
with oversize motors and large voice coils deliver deep,
controlled bass response.
5. Handle – One of two over sized carry handles.
6. Bass Port– Precision tuned, low frequency port extends
the bass response.
7. Steel Grill – Durable steel grill provides protection for,
and easy access to LF driver.
8. Enclosure – Rigid, all-plywood enclosure for maxmum
output and durability.
Amplifier Panel Rear View
9. Heat sink - Convection cooling of the internal power
amplifier via massive aluminum extrusion.
10. LINE INPUT connector - XLR Input for connecting
balanced line level signals.
11. LINE OUTPUT connector- Male XLR connector used
to link multiple LIVE series.
12. AMP / CLIP LED - Dual color LED lights Green when
amp is active, flashes Red when the amp is clipped or
stays Red indicating the amplifier is in protect mode.
13. LINE LEVEL – Used to control the level of the line
input.
14. POWER – Switches on the LIVE series’ main power.
15. VOLTAGE switch - Used to change the operating
voltage from 115 to 230 volts.
IMPORTANT NOTE! Bure sure to confirm and install the
properly rated fuse when changing the operating voltage.
(See below AC Power Inlet).
16. AC Power inlet / Fuse Sled– Connect the supplied
standard IEC AC power cable here.
