ENGLISH
11
Live Series System Set-ups
L612 and L615 Compact
Lounge PA for Two

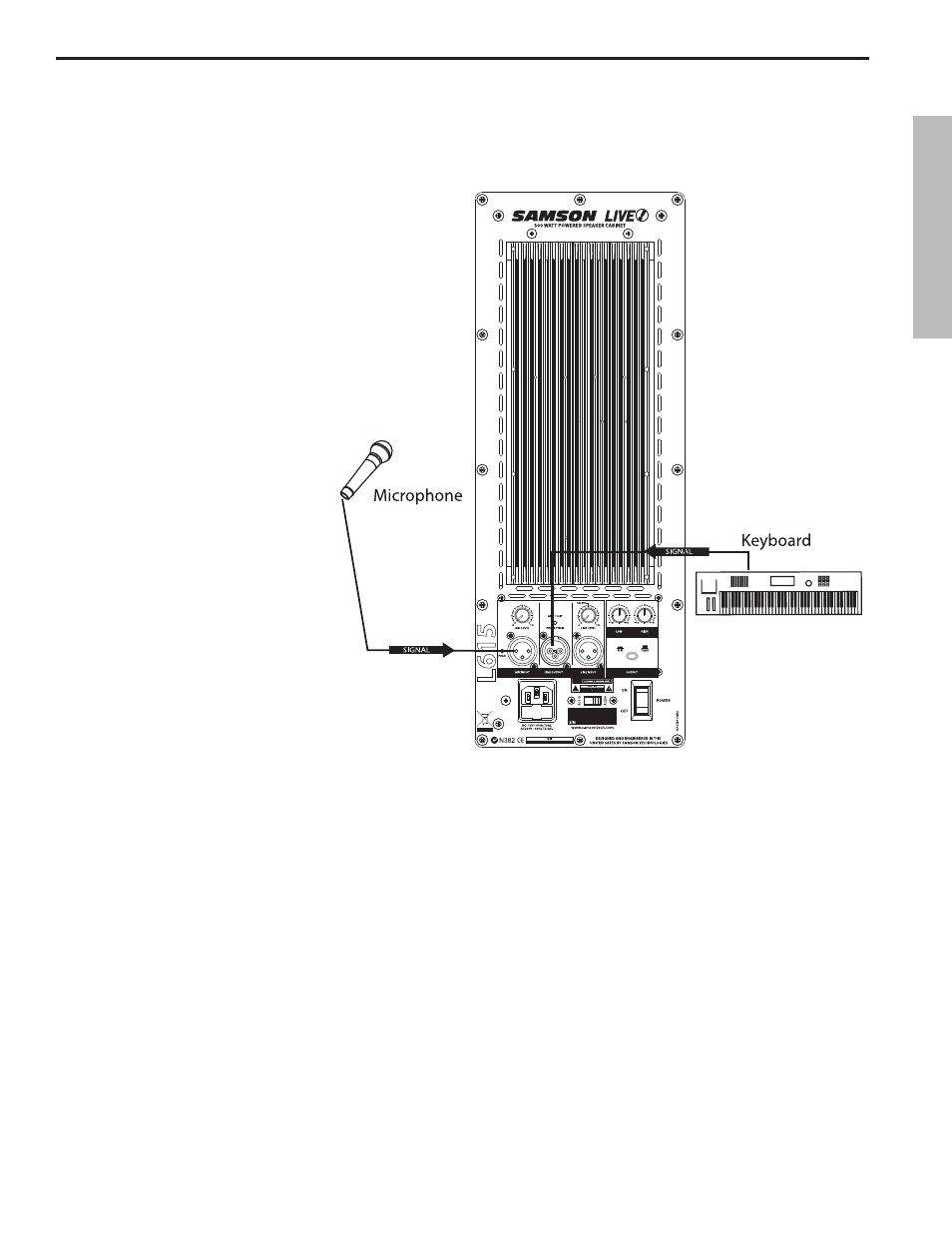

This example shows a PA system
set-up that can be used for a small
club, at a ceremony or in a lounge,
using a single Live Series for both
a microphone and vocal. A sepa-
rate signal is sent from the vocal
microphone to the L612 or L615’s
Mic input, and from the keyboard
to the Live Series’ Line input. The
individual Mic and Line level con-
trols allow you to create a mix right
on the Live Series. For further con-
trol, you can use the Live Series’
two-band equalizer to boost or cut
the highs and/or low frequencies
adjusting the overall tonal contour
of the system.
For more information on cable and
wiring, see page 13 of this manual
for a detailed wiring diagrams.
