ENGLISH
3

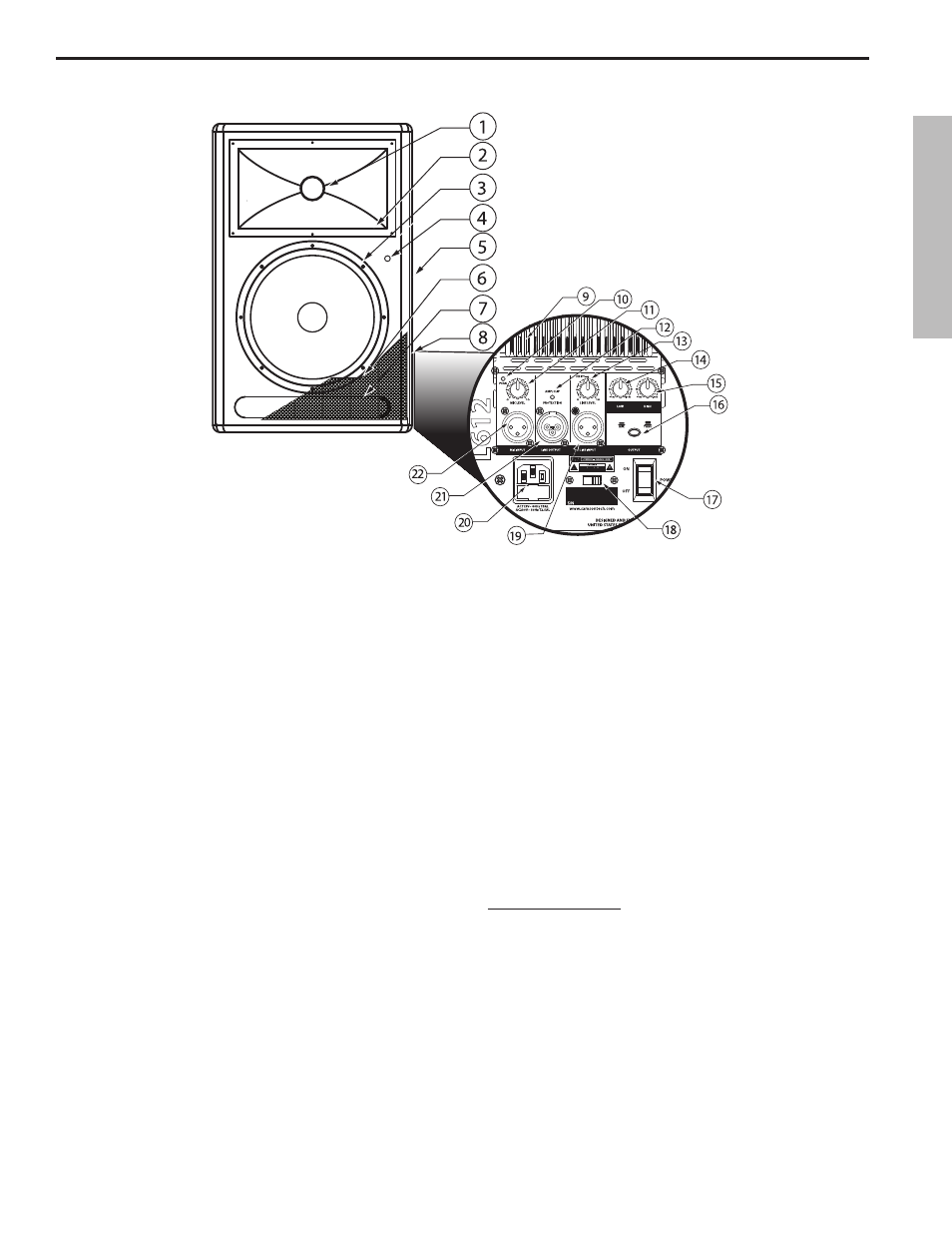

L612 and L615 Layout
1. Titanium Compression Driver – 1.75 inch (44mm),
titanium diaphragm with 1 inch opening.
2. Wide Dispersion Horn – 1 inch throat, 60 x 90 degree
wide dispersion horn provides extensive coverage and
linear off-axis response.
3. Low Frequency Driver - 12-inch and 15-inch woofers
with oversize motors and 3-inch voice coils deliver
deep, controlled bass response.
4. Power LED – Blue Light Emitting Diode illuminates
indicating the unit is powered on and ready for
operation.
5. Handle – One of two over sized carry handles.
6. Steel Grill – Durable steel grill provides protection for,
and easy access to LF driver.
7. Bass Port– A precision tuned, low frequency port,
extends the bass response.
8. Enclosure – Rigid, all-plywood enclosure for maxmum
output and durability.
Amplifier Panel Rear View
9. Heat sink - Convection cooling of the internal power
amplifier via massive aluminum extrusion.
10. PEAK LED - LED light to indicate mic input peak.
11. MIC LEVEL – Used to adjust the volume of the
microphone input.
12. AMP / CLIP LED - Dual color LED lights Green when
amp is active, flashes Red when the amp is clipped or
stays Red indicating the amplifier is in protect mode.
13. LINE LEVEL – Used to control the level of the line
input.
14. LOW FREQUENCY - Controls the low band of the
Channel Equalizer, +/- 12 dB at 100Hz.
15. HIGH FREQUENCY - Controls the high band of the
Channel Equalizer, +/- 12 dB at 10kHz.
16. OUTPUT switch - This switch is used to select the
signal that is sent to the Line Output. When the switch
is in the up position, the signal on the Line Output is
exactly the same as the signal on the Input. When the
switch is in the down position, the Line Output carries
the MIX of the Mic and Line Inputs, as well as the High
and Low Equalizer.
17. POWER – Switches on the LIVE series’ main power.
18. VOLTAGE switch - Used to change the operating
voltage from 115 to 230 volts.
IMPORTANT NOTE! Bure sure to confirm and install the
properly rated fuse when changing the operating voltage.
(See below AC Power Inlet).
19. LINE INPUT connector - XLR Input for connecting
balanced line level signals.
20. AC Power inlet / Fuse Sled– Connect the supplied
standard IEC AC power cable here.
21. LINE OUTPUT connector- Male XLR connector used
to link multiple LIVE series.
22. MIC INPUT connector - XLR Input for connecting low
impedance microphones to the Low-Noise pre-amp
and Phantom Power.
