Simplicity CORONET 400 - Manual (Page 38)

36 TP 400-2035-00-CO-SMA © Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.

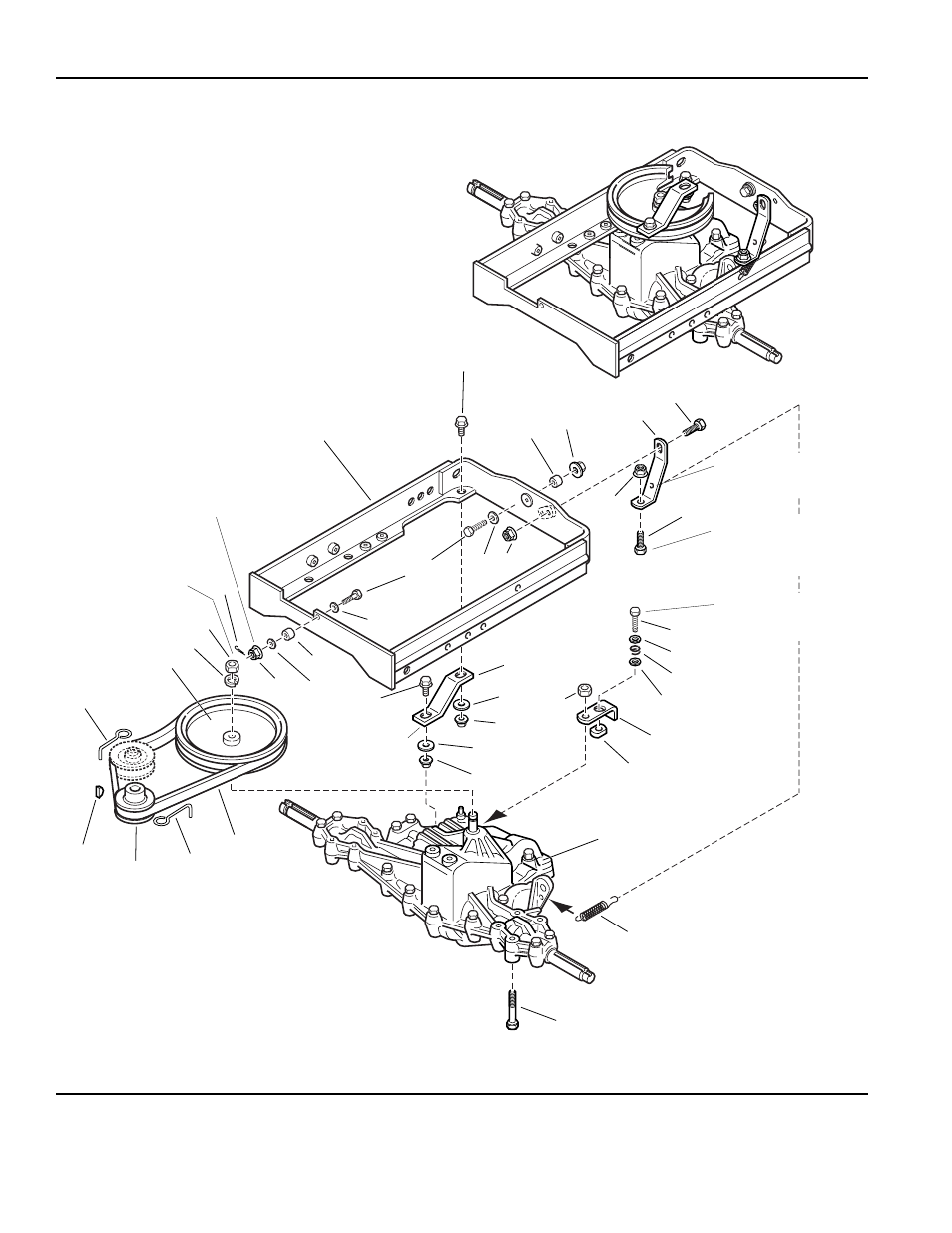

Transmission & Carrier - Hydro-Gear 311-0500 Models
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
1692750 Coronet, 13HP Hydo
1692821 412H, 12HP Hydro
1693034 Coronet, 13HP Hydro
1693036 Coronet, 13HP Hydro (Exp)
1693038 Coronet, 14HP Hydro
1693040 Coronet, 14HP Hydro (Exp)
1693044 412H, 12HP Hydro
1693046 414H, 14HP Hydro
1693050 2414H, 14HP Hydro
1
2
3 4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
6
20
19
33
3
7
Hook Spring
ref. 23 here
Attach to Boss on
R.H. Underside of
Transmission
Torque to
80-100 in. lbs.
Under Boss of
Transmission
on R.H. Side
Torque to
50-84 ft. lbs.
Torque to
360-400 in. lbs.
26
