Connecting to a Power Source

To connect a device to a power source:

Note: It is recommended that the switches be stacked before

being connected to a power source. However, a device can
be added to the top or bottom of a stack that is on and
operating without first powering down the stack. Be sure to
stack the new device before connecting it to a power
source. All switches in a stack must be powered on to allow
traffic to pass across the stack’s backplane.

To connect each device to a power source:

1. Insert the power cable plug directly into the receptacle located

at the back of the device.

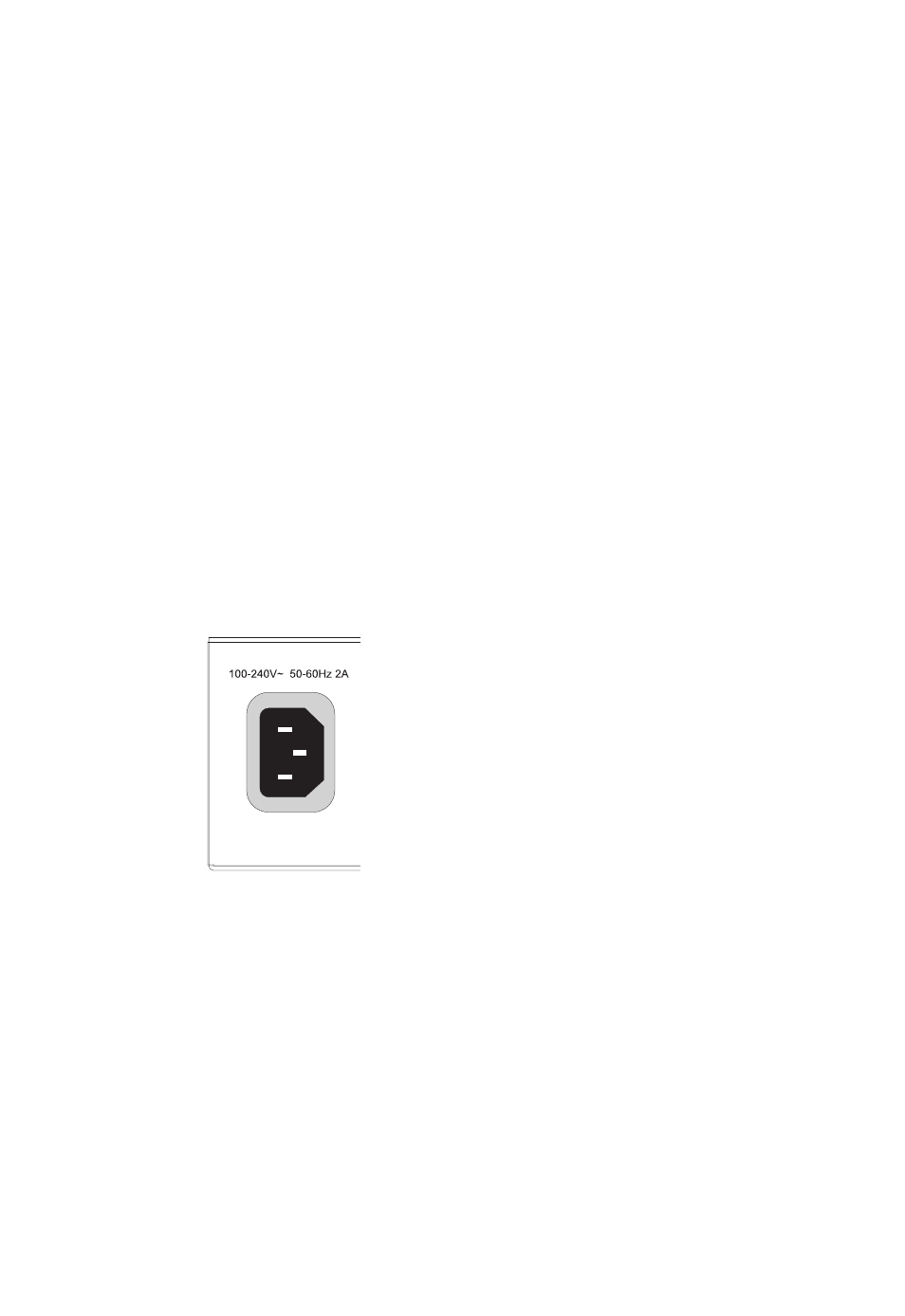

Figure 3-6. Power Receptacle

2. Plug the other end of the cable into a grounded, 3-pin socket.

Note: For International use, you may need to change the AC line

cord. You must use a line cord set that has been approved
for the receptacle type in your country.
