Stacking, Stacking -7 – SMC Networks 100 User Manual
Page 45

I
NSTALLING
THE
S
WITCH
3-7

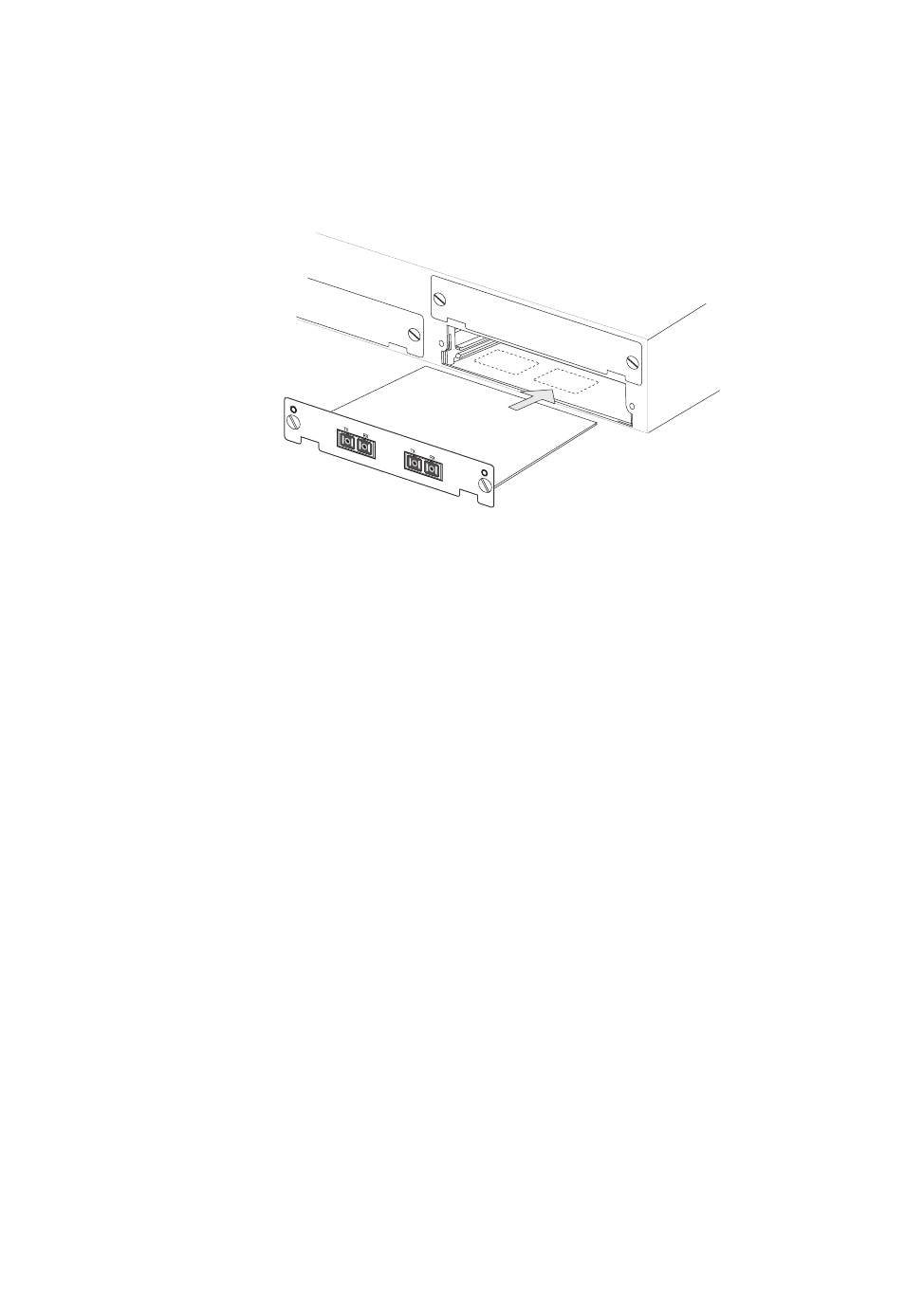

Figure 3-4. Installing a Module
6. If you are sure the module is properly mated with the
connector, tighten the retainer screws by hand to secure the
module in the slot.
7. Connect power to the switch.
Stacking
A stack may have as many as four switches.
Note: A stacking cable is included with the Stack Module.
Caution: DO NOT stack TigerSwitch 100 units with other devices.
Doing so may damage the switch.
To stack the devices:
1. Locate the stack connectors labeled “UP” and “DOWN” on the
stack modules (see Figure 3-4).
2. Attach one end of the stacking cable to the stack connector
labeled “DOWN” on the top device, and the other end to the
connector labeled “UP” on the next lower device.
100Base-FX-SC
Extender
Module
SMC6900FSC
