A
BOUT
THE
T
IGER
S
WITCH
100
1-7
•
Provides data security by restricting all traffic to the originating
VLAN, except where a connection has been configured
between separate VLANs using a router or Layer 3 switch.
Multicast Switching
Specific multicast traffic can be assigned to its own VLAN to ensure
that it does not interfere with normal network traffic and to
guarantee real-time delivery by setting the required priority level
for the designated VLAN. The switch uses IGMP Snooping and
IGMP to manage multicast group registration.
Traffic Priority
This switch provides Quality of Service (QoS) by prioritizing each
packet based on the required level of service, using two distinct
categories with Weighted Fair Queuing. It uses IEEE 802.1p and
802.1Q tags to prioritize incoming traffic based on input from the
end-station application. These functions can be used to provide
independent priorities for delay-sensitive data and best-effort data.
Optional Media Extender Modules
Optional 100BASE-FX Module (SMC6900FSC)

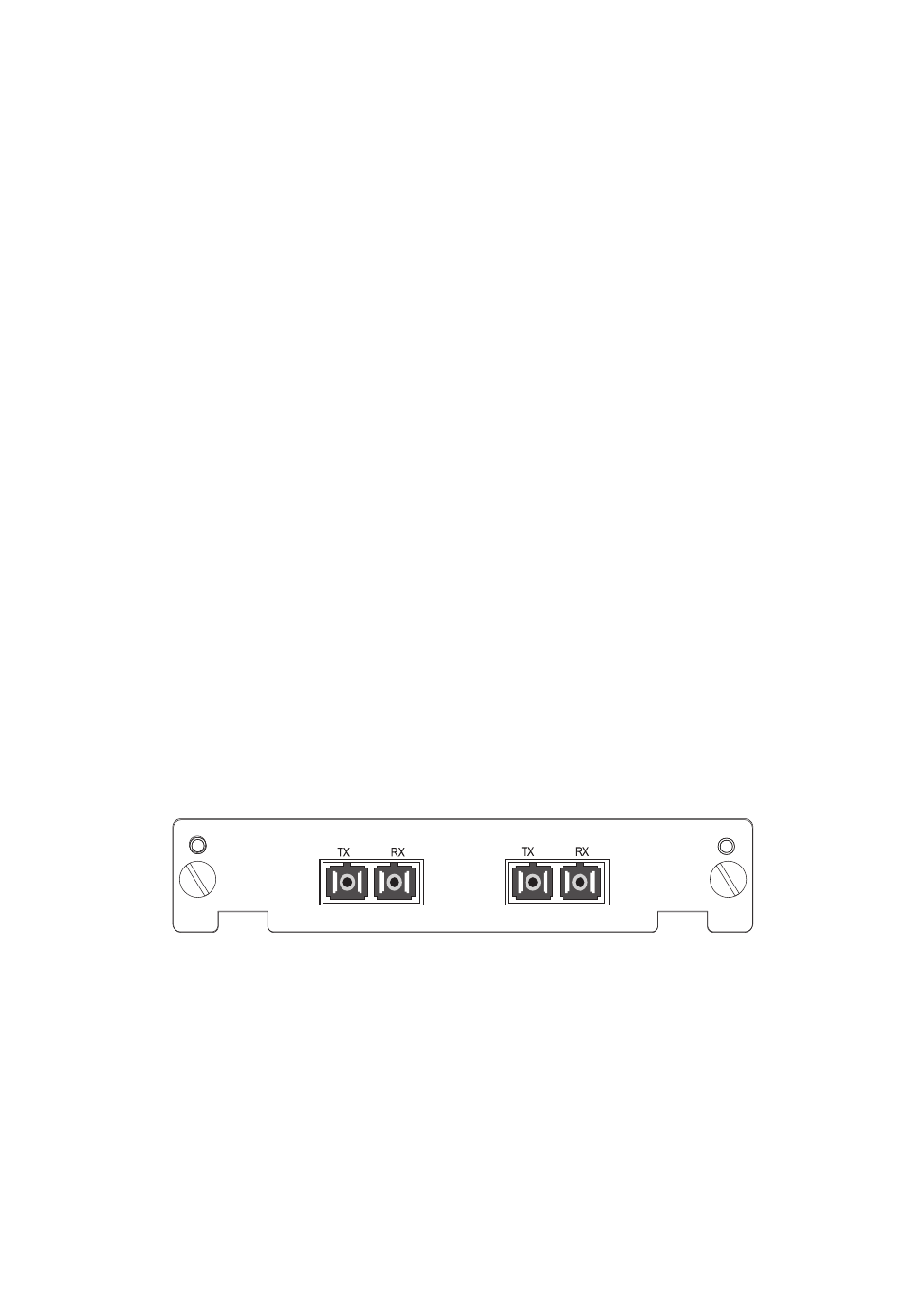

Figure 1-6. 2-Port 100BASE-FX Multimode Fiber Module
Using multimode fiber optic cable, the 100BASE-FX port can be
connected to a remote site up to 2 km (1.24 mi.) away. This port
operates only at 100 Mbps, full duplex. This module is fitted with
an SC connector, but you can attach an ST plug to the switch using
the optional SC-ST Converter (Part Number: 99-012034-091).
100Base-FX-SC Extender Module
SMC6900FSC
