Optional 100BASE-FX Module (SMC6900FSSC)

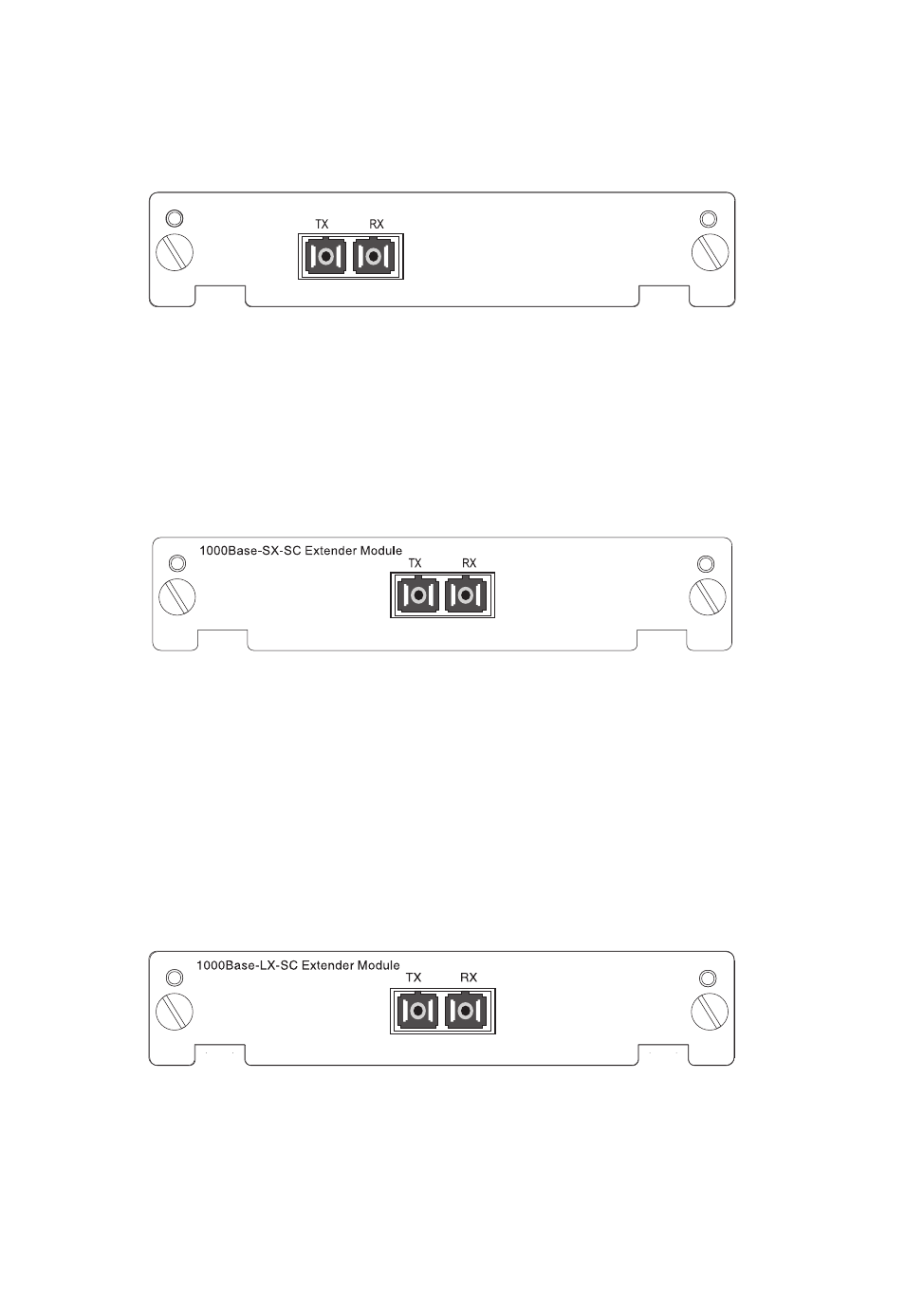

Figure 1-7. 1-Port 100BASE-FX Single-Mode Fiber Module
Using single-mode fiber optic cable, the 100BASE-FX port can be
connected to a remote site up to 10 km (6.21 mi.) away. This port
operates only at 100 Mbps, full duplex.
Optional 1000BASE-SX Module (SMC6900G)
Figure 1-8. Single-Port 1000BASE-SX Gigabit Module
Using multimode fiber optic cable, the 1000BASE-SX port can be
connected to a remote site up to 550 m (1805 ft.) away. The
1000BASE-SX Gigabit module operates at 1 Gbps, with support for
auto-negotiation of duplex mode and flow control. This module is
fitted with an SC connector, but you can attach an ST plug to the
switch using the SC-ST Converter (Part Number: 99-012034-091).
Optional 1000BASE-LX Module (SMC6900GLSC)
Figure 1-9. Single-Port 1000BASE-LX Gigabit Module
SMC6900GLSC contains one 1000BASE-LX single-mode fiber port
that can be connected to a site up to 5 km (16,404 ft) away using
100Base-FX Singlemode SC Module
SMC6900FSSC
SMC6900G
SMC6900GLSC
