System Configuration
You need to connect the optional PCS-B768 ISDN Unit and the PCS-DSB1
Data Solution Box especially designed for use with this System and to install
the optional PCS-320M1 H.320 MCU software.
This allows you:
• To hold a multipoint videoconference among up to six sites over ISDN.
• To show still images stored in a “Memory Stick”.
• To use the data from a computer or an external equipment.
• To show the data from a computer or still images on the second TV monitor
or projector.
• To pick up a large number of participants’ voices using up to five external
microphones connected to the Data Solution Box.
System configuration

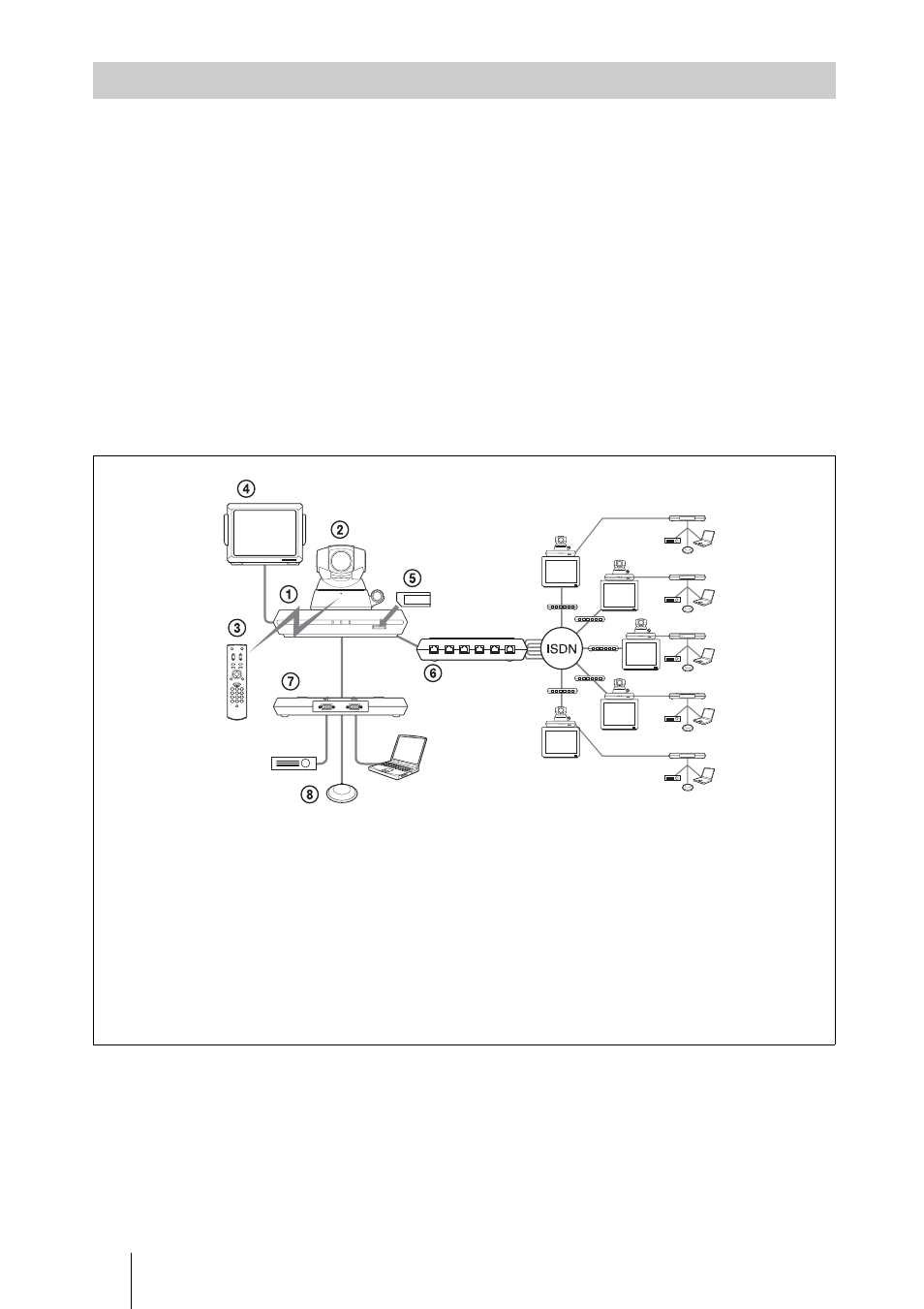

System Configuration via an ISDN for Multipoint Data Conference
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
1 2 3 4 5 6
1 PCS-P1/P1P Communication Terminal
2 PCS-C1/C1P Camera Unit
3 PCS-R1 Remote Commander
4 TV monitor (not supplied)
5 PCS-320M1 H.320 MCU software (not supplied)
6 PCS-B768 ISDN Unit (not supplied)
7 PCS-DSB1 Data Solution Box (not supplied)
8 PCS-A1 Microphone (not supplied)
