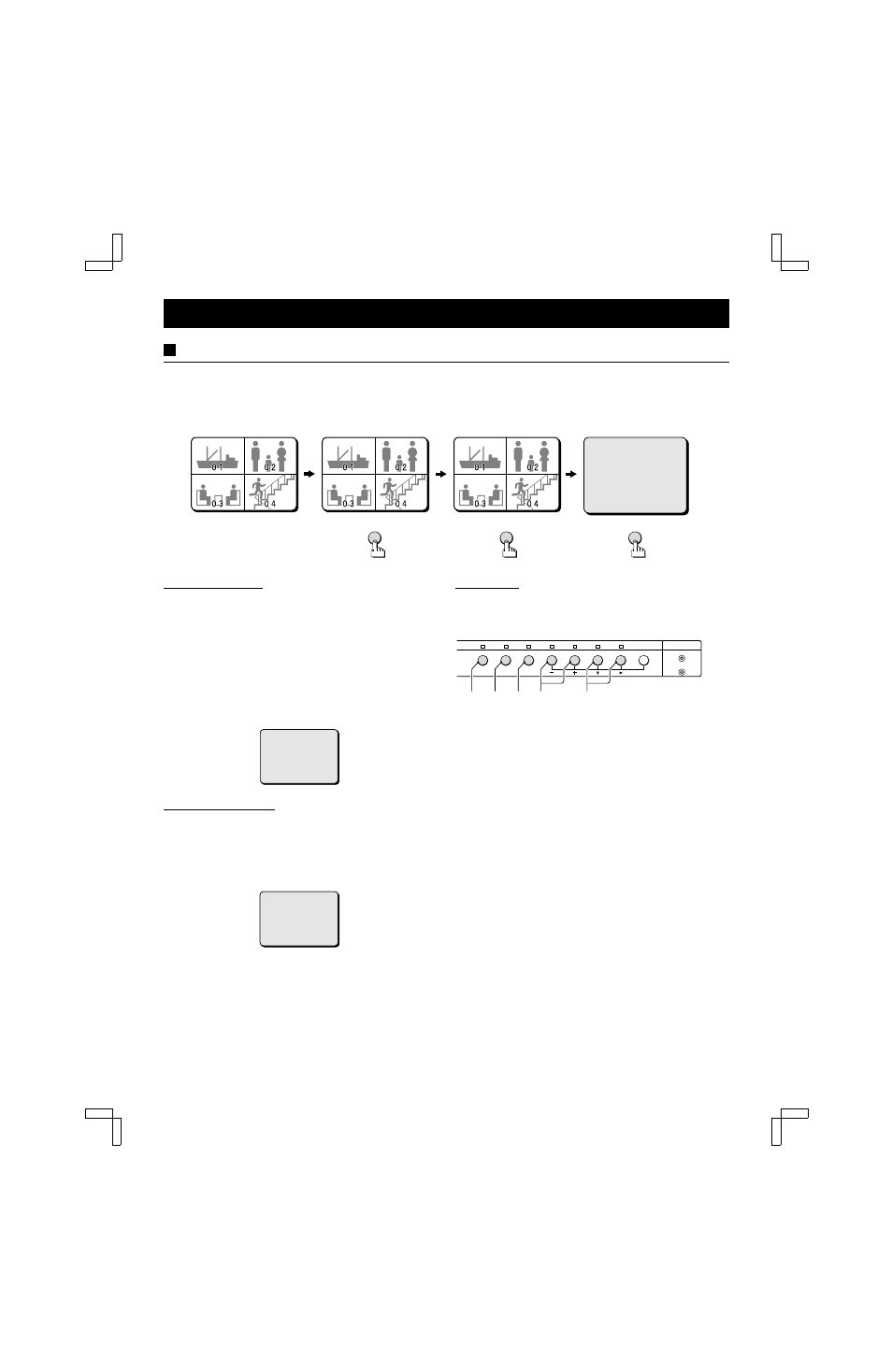

BASIC OPERATIONS

MODE SWITCHING

When the unit is connected to a power source, the default display mode will be as follows: live picture from the four cameras
will be displayed in a 4 divisions split screen on monitor 1, and sequentially, full screen on monitor 2. You can use the VCR,
LIVE and MENU buttons to switch to the desired mode (see below for further information).

LIVE picture mode

VCR playback mode

LIVE picture mode

Menu mode

When the power on

Live Picture Mode

When the LIVE button is pressed, the live (direct) picture from
the cameras connected to the camera input terminals (1 – 4) on
the unit rear panel, will be displayed. While in live picture mode
you can use the still and zoom functions (see page 9).

NOTE:

The unit will automatically start in the live picture or VCR
playback display mode (4 divisions split screen, full screen or
sequential display) last selected. Therefore, when a mode is
selected, the display mode will remain the same.

If a camera is not connected at one of the input terminals,
NO VIDEO” will be displayed on the monitor screen.

VCR Playback Mode

Start playback on the VCR. If the video signal is correctly
recorded, the VCR playback image will be displayed on monitor
1 when the VCR button is pressed. While in VCR playback
mode you can use the still and zoom functions (see page 15).

NOTE: If playing back a tape not recorded through this unit,

NO ID” will be displayed on the monitor screen.

Menu Mode

Press the MENU button to display the menu. The buttons used
for menu control (see page 21) are indicated below.

Menu control buttons

1

c

,

l

(VCR, LIVE) button

Use these buttons to move the cursor to the right or down.

c

button: will move the cursor towards the right.

l

button: will move the cursor down.

2

+, – (QUAD, SEQUENCE) buttons

Use these buttons to select numbers, letters, symbols.

+ button: for forward selection

button: for backward selection

3

NEXT (ZOOM) button

To select a sub-menu in order to set the title position, etc. Press
the NEXT button to switch between the menu and the sub-menu.

4

EXIT (STILL) button

To exit the menu mode.

5

SHIFT (MON2) button

Use this button and the

c

or

l

buttons to move the cursor to

the left or up.

Press and hold the SHIFT button, then press the

c

button to move the cursor to the left.

Press and hold the SHIFT button, then press the

l

button to move the cursor up.
