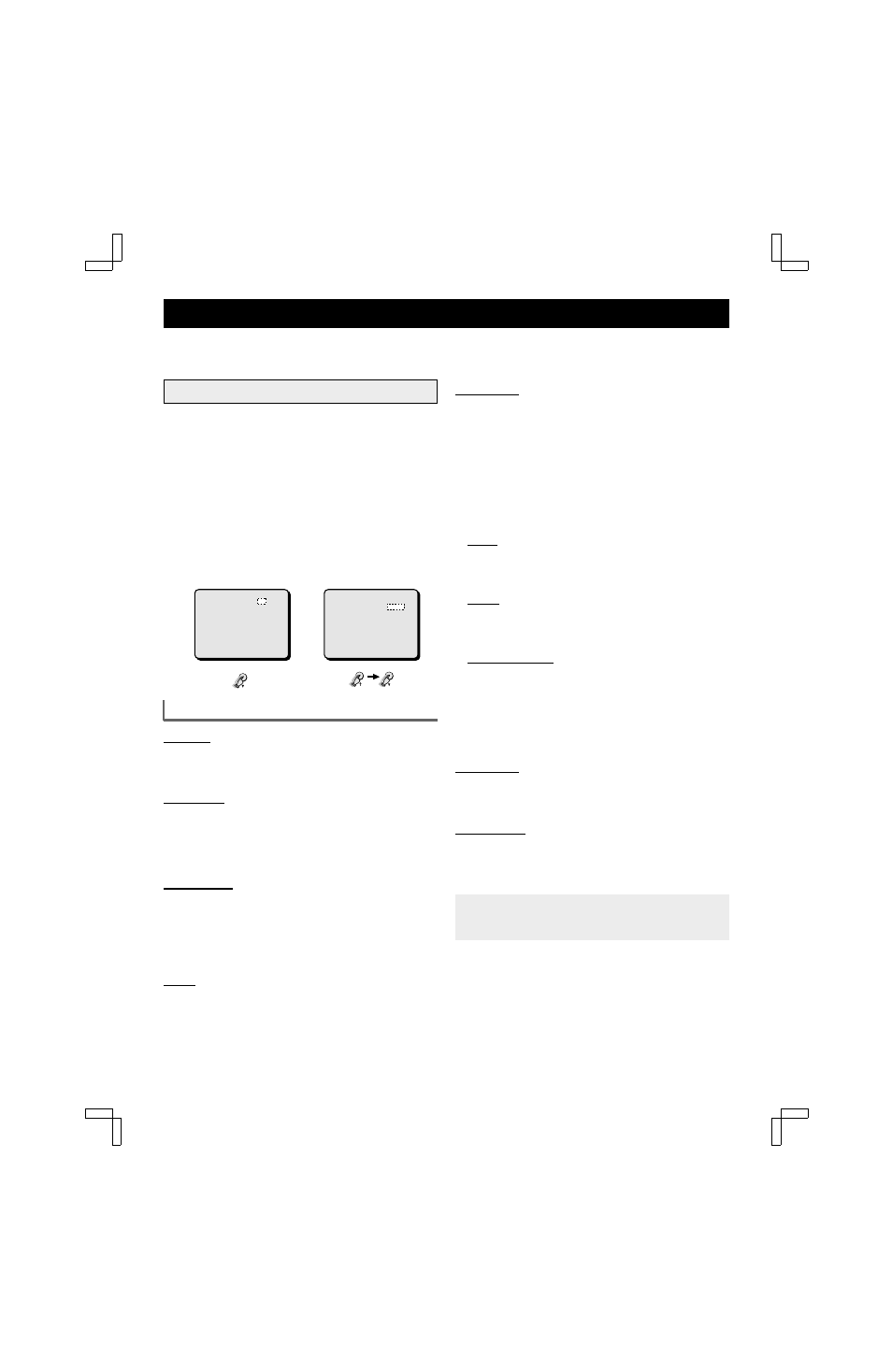

background image

ALARM SETTING

Menu 4

When an alarm trigger is received from sensors such as a door bell, movement sensor, etc. you can set the display mode and the
recording mode for the pictures from the concerned camera.

(ALARM SET)

Changing the Settings

1

Press the MENU button 4 times to display the (ALARM
SET) menu.

2

Press the

l

button to highlight the setting to modify.

3

Using the + (or –) button, select the desired setting,
then press the

l

button.

Repeat step 3, until all the settings are as desired.

4

Press the MENU button to go to the next menu
screen, or

Press the EXIT button to exit the menu display.

ALARM SET menu

BUZZER

ON: A buzzer will be heard when an alarm trigger is received.

(Default setting)

OFF: The buzzer will not be heard.

DURATION

The alarm duration can be set to: 1, 2, 3, 4, 5, 10 (Default

setting), 30 seconds, CC, NC

CC:

The alarm will go on for as long as the alarm signal is
received (minimum 1 second).

NC:

The alarm will continue until canceled.

RETRIGGER

To set if an alarm is received while the unit is already in alarm
mode.
OFF: The unit will not receive another alarm, while one is

already being received. (Default setting)

ON: During alarm mode, other alarm triggers will be received

and the alarm duration will be extended.

DATA

The camera number, date, time, type of the alarm can be
recorded. (To view the recorded alarm data, refer to “ALARM
DATA DISPLAY
” on page 33.)
ON: The alarm data is recorded. (Default setting)
OFF: The alarm data is not recorded.

MON.1 OUT

FULL: If an alarm trigger is received while in 4 divisions split

screen, the picture from the camera corresponding to the
alarm input will be displayed full screen. (Default setting)
If “FULL” is selected, refer to “STILL”, “ZOOM” and
DOUBLE ALARM” below for further settings.

QUAD: If an alarm trigger is received while in full screen, the

display mode will switch to 4 divisions split screen.
If “QUAD” is selected, refer to “STILL” and “ZOOM
below for further settings.

NC:

The display mode will remain unchanged when an alarm
trigger is received.

STILL

ON: The image from the camera corresponding to the alarm

trigger will be frozen.

OFF: The image will not be frozen. (Default setting)

ZOOM

ON: The image from the camera corresponding to the alarm

trigger will be zoomed in.

OFF: The image will not be zoomed in. (Default setting)

DOUBLE ALARM

This item is only displayed and can only be set if “MON.1
OUT
” above is set to “FULL”.
SWITCH: The picture from each concerned camera will be

displayed sequentially at 1 second interval.
(Default setting)

FIRST: The picture from the first alarm received only is displayed.
LAST: The picture from the last alarm received is displayed.

MON.2 OUT

ON: Monitor 2 display will switch to full screen alarm display,

when an alarm trigger is received.

OFF: Monitor 2 display will not change. (Default setting)

ACTIVE REC

ON: When an alarm trigger is received, the camera signals

corresponding to the alarm trigger are recorded in priority.

OFF: When an alarm trigger is received, the camera signals are

recorded normally. (Default setting)

NOTE: There are two ACTIVE REC alarm recording modes

MODE1” and “MODE2” that can be set in the
(SENSOR SET) menu (see page 26).

LIVE

QUAD

1, 2

3

(ALARM SET)
BUZZER ON
DURATION 10 S
RETRIGGER OFF
DATA ON
MON.1 OUT FULL
STILL OFF
ZOOM OFF
DOUBLE ALARM SWITCH
MON.2 OUT OFF
ACTIVE REC OFF

(ALARM SET)
BUZZER ON
DURATION 10 S
RETRIGGER OFF
DATA ON
MON.1 OUT FULL
STILL OFF
ZOOM OFF
DOUBLE ALARM SWITCH
MON.2 OUT OFF
ACTIVE REC OFF

LIVE

L8FH5/US (MPX-CD4 GB) 1999. 6. 4

English

25
