PARTS NAMES

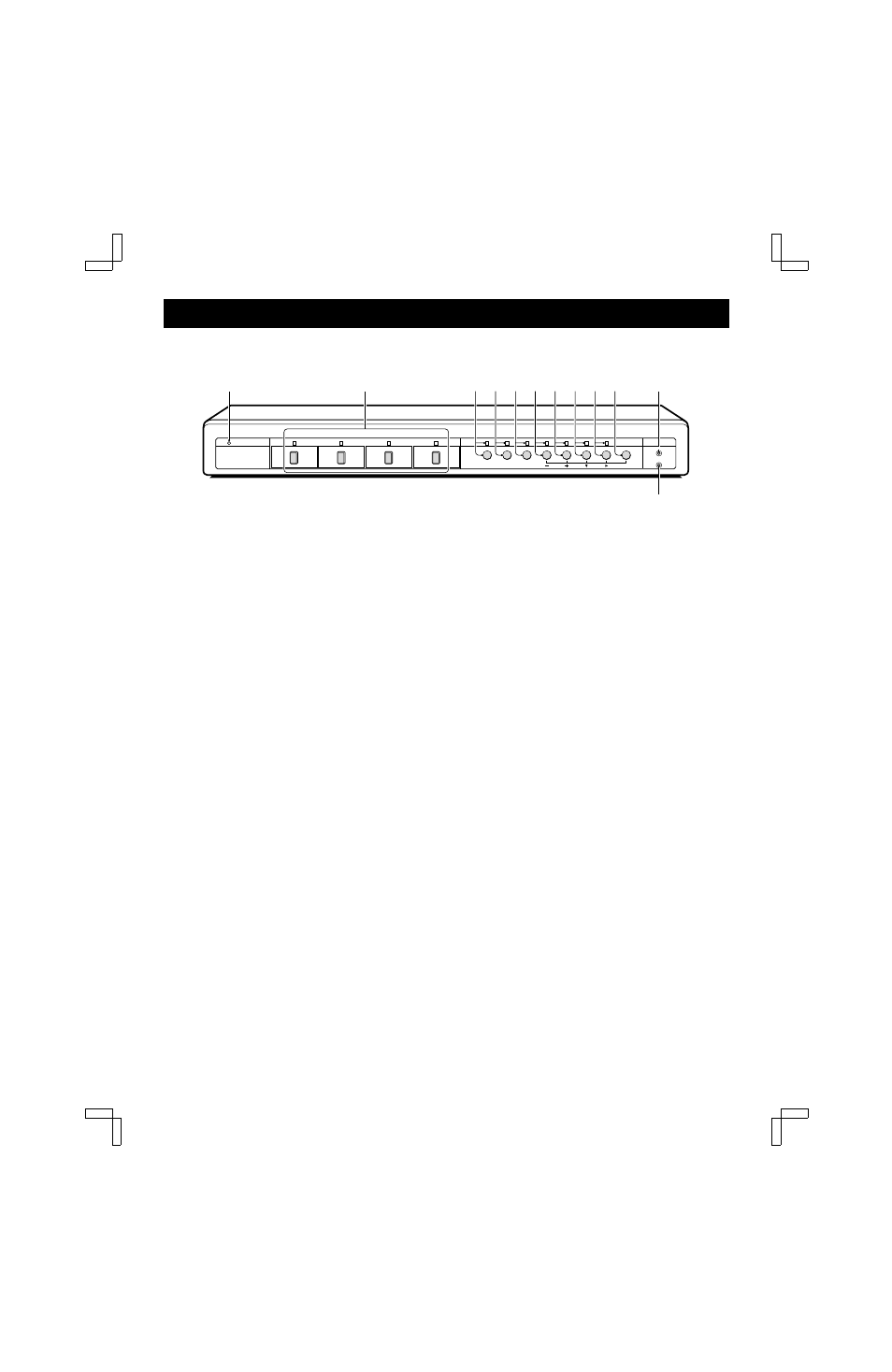

FRONT PANEL
This unit is not equipped with a power switch. The power is turned on/off when the supplied power cord is connected/disconnected at
the power source.
1 POWER indicator
2 Camera select buttons and camera indicators
Use these buttons to select the picture from the
corresponding camera. Also, when in 4 divisions split
screen, 4 divisions zoom, still image or sequential display
modes, press one of these buttons to return to the normal
picture full screen display of the corresponding camera.
3 MON2 button and indicator
Press this button to set the output at monitor 2.
4 STILL button and indicator
In 4 divisions split screen, 4 divisions zoom or full screen
display modes, press this button to freeze the displayed
image. Press the button one more time to cancel.
5 ZOOM button and indicator
In 4 divisions split screen or full screen display modes,
press this button for a 2x zoomed in image. Press the
button one more time to cancel.
6 SEQUENCE button and indicator
In 4 divisions split screen or full screen display modes,
press this button for an automatic sequential full screen
display of the pictures.
7 QUAD button and indicator
In full screen display or sequential display modes, press this
button to switch to 4 division display mode. The default
display mode is 4 division display mode.
8 LIVE button and indicator
Press this button to select the live input mode.
9 VCR button and indicator
Press this button to select the VCR playback input mode.
F MENU button
Press this button to display the menus. Press repeatedly to
select the different menus in order. Buttons
3 to 9 are
used for menu control (for more information, please refer to
page 7).
G ALL RESET button
H MENU RESET button (see page 8)
1 2 3 4 MON 2 STILL ZOOM
SHIFT EXIT NEXT
SEQUENCE QUAD LIVE VCR MENU
H
MENU RESET
G
ALL RESET POWER
2 3 4 5 6 7 8 9 F 1
L8FH5/US (MPX-CD4 GB) 1999. 6. 4
English 3
