SENSOR SETTING Menu 5

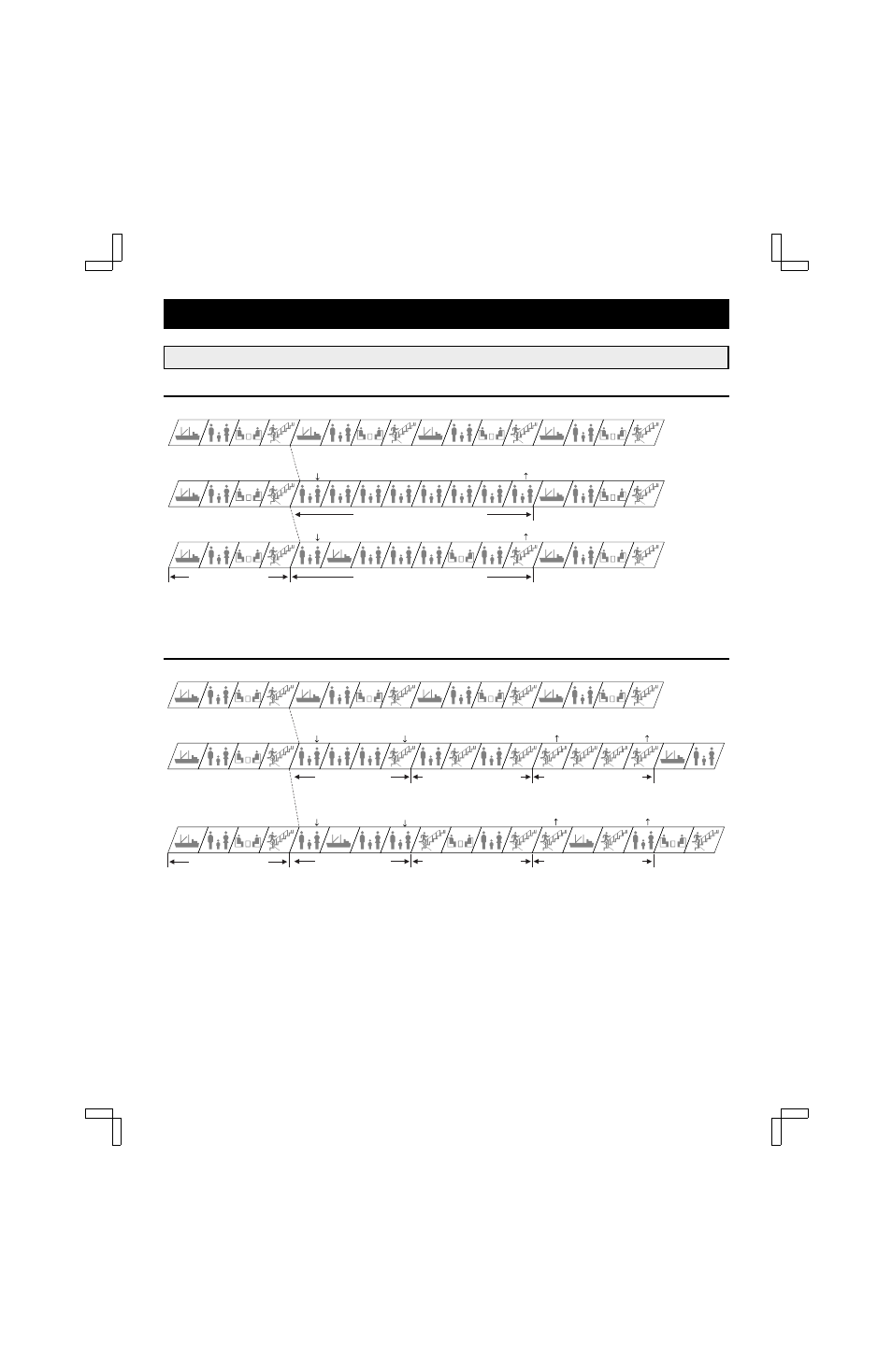

ACTIVE REC Settings Examples
Example 1: Recording on the tape when an alarm trigger is received from camera 2
Example 2: Recording on the tape when an alarm trigger is received from camera 4 when an
alarm trigger has already been received from camera 2
(ACTIVE REC: OFF)
(ACTIVE REC: MODE1)
(ACTIVE REC: MODE2)
Alarm trigger in Alarm trigger out
Alarm trigger in
Alarm duration for camera 2
Alarm duration for camera 2 Normal recording
(no alarm trigger)
Alarm trigger out
(ACTIVE REC: OFF)
(ACTIVE REC: MODE1)
(ACTIVE REC: MODE2)
Alarm trigger in Alarm trigger in
Alarm trigger in
Alarm trigger out Alarm trigger out
Alarm trigger in
Alarm duration for
camera 2 Alarm trigger received from camera
4 during the alarm duration for
trigger from camera 2
Normal recording
(no alarm trigger)
Alarm trigger out Alarm trigger out
Alarm duration for camera 2 is over,
remaining alarm duration for trigger
from camera 4
Alarm duration for
camera 2 Alarm trigger received from camera
4 during the alarm duration for
trigger from camera 2 Alarm duration for camera 2 is over,
remaining alarm duration for trigger
from camera 4
