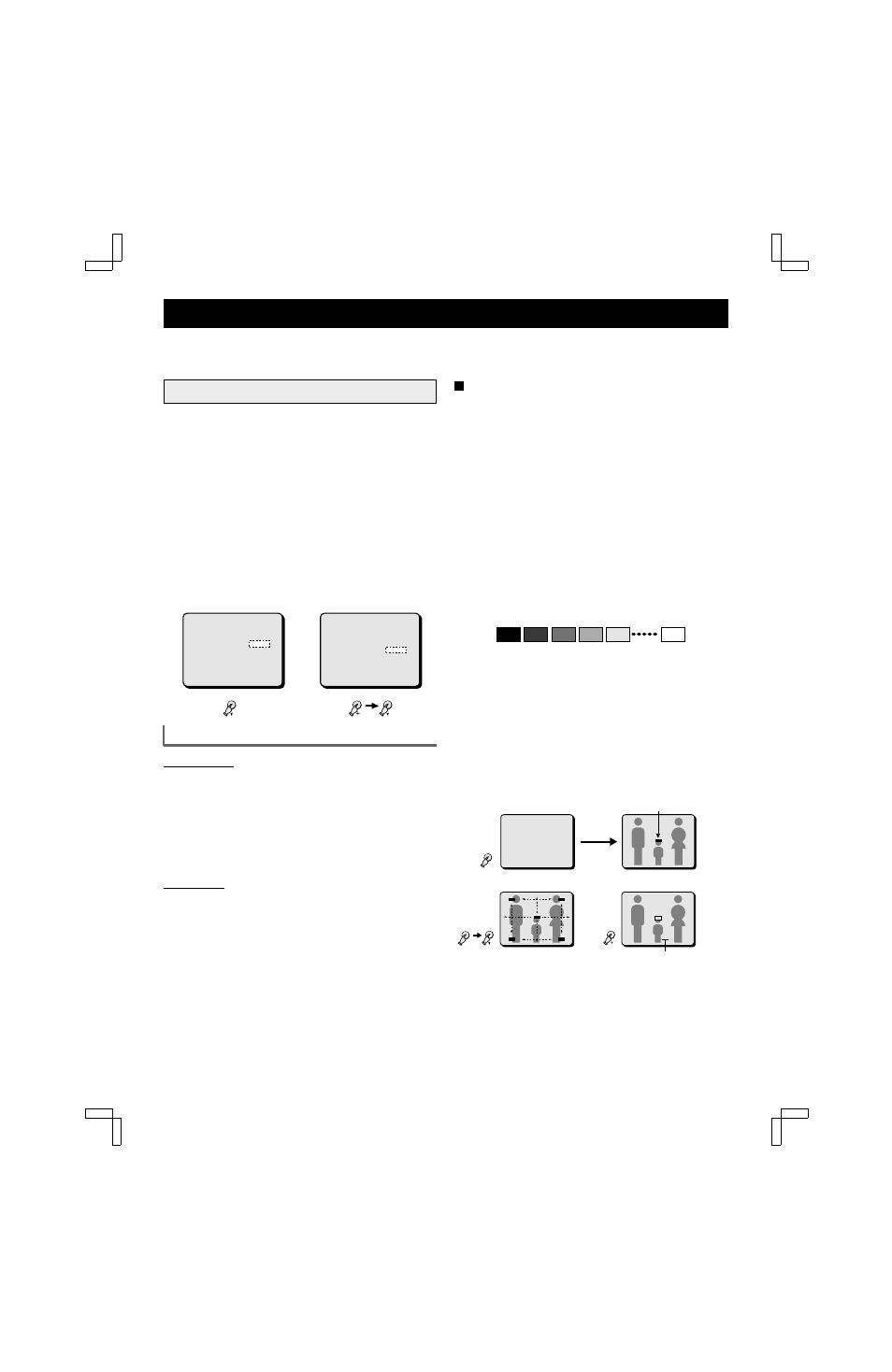

SENSOR SETTING
Menu 5
You can set an area of the screen to be used as a sensor. You can also set the recording mode (ACTIVE REC) for sensor recording,
when the sensor sends a trigger as it detects a movement.
(SENSOR SET)
Setting the ACTIVE REC Mode
1
Press the MENU button 5 times to display the (SENSOR
SET) menu.
2
Press the l button to highlight the setting to modify.
3
Using the + (or –) button, select the desired setting,
then press the
l button.
• Repeat step 3, until all the settings are as desired.
4
☞ Press the NEXT button to go to the POSITION/LEVEL
SET sub-menu,
☞ Press the MENU button to go to the next menu
screen, or
☞ Press the EXIT button to exit the menu display.
SENSOR SET menu
ACTIVE REC
MODE1: The live pictures from the camera corresponding to the
alarm trigger only are recorded.
MODE2: The live pictures from the camera corresponding to the
alarm trigger are recorded together with the pictures
from the other cameras. (Default setting)
NOTE:
For further details, please refer to the example on the
next page.
DURATION
The recording duration can be set to:
01, 02, 03, 04, 05 (Default setting), 10, 30 seconds
SETTING THE SENSOR POSITION AND
SENSITIVITY LEVEL
Example: To adjust the camera 2 sensor position and
sensitivity level to 3
1
From the (SENSOR SET) menu, press the NEXT button
twice to go to the sub-menu for camera 2.
• The sub-menu for each camera is selected by pressing
the NEXT button.
• The camera live picture is displayed, and the sensor
position and sensitivity can be adjusted for that camera.
2
Using the l (or c ) button move the sensor frame down
(or right) to the desired sensor area position.
• Press and hold the SHIFT button, then press the l
button to move the sensor frame up.
• Press and hold the SHIFT button, then press the c
button to move the sensor frame to the left.
• Press and hold the SHIFT button, the press the + (or –)
button to adjust the bright of sensor frame.
3
Press the + (or –) button to raise (or lower) the sensor
sensitivity level (03).
NOTE: The displayed frame will flash if there is movement
within the sensor area during the setting.
The available sensitivity levels are:
OFF (not used), 1, 2,.....10 (10 being the most sensitive)
4 ☞ Press the EXIT button to return to the menu display,
☞ Press the MENU button to go to the next menu
screen, or
☞ Press the EXIT button to exit the menu display.
LIVE QUAD
2 3
(SENSOR SET)
ACTIVE REC MODE2
DURATION 05 S
POSITION/LEVEL SET
PRESS NEXT
(SENSOR SET)
ACTIVE REC MODE2
DURATION 05 S
POSITION/LEVEL SET
PRESS NEXT
LIVE
ZOOM
NEXT
1
(SENSOR SET)
ACTIVE REC MODE2
DURATION 05 S
POSITION/LEVEL SET
PRESS NEXT
CAM2 OFF
2
LIVE
CAM2 OFF
QUAD
3
CAM2 03
Sensor frame
Sensitivity Level
MON2
SHIFT
