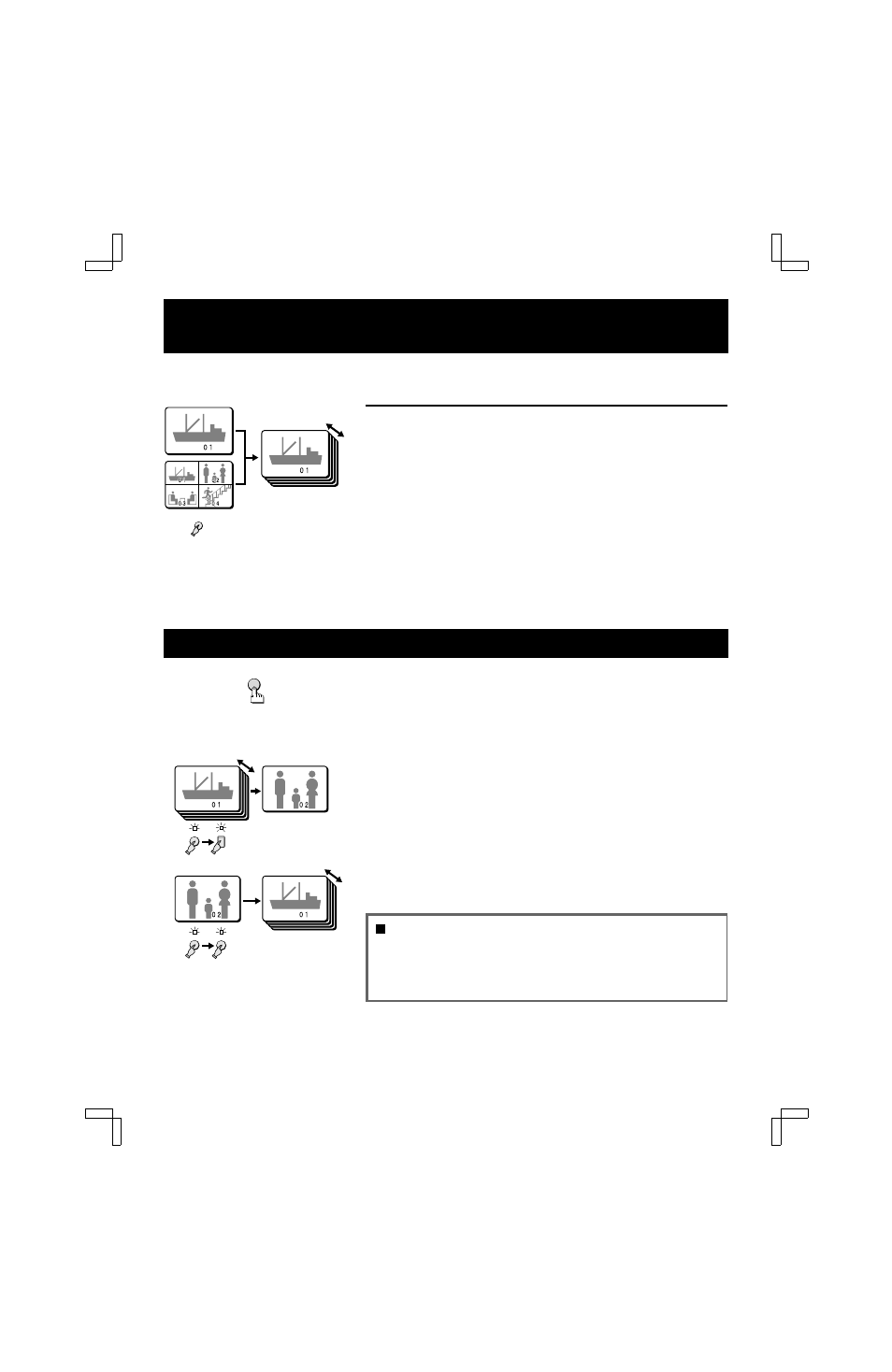

SEQUENTIAL DISPLAY OPERATIONS
(Live picture on monitor 1)
Sequential display of each camera pictures at 1 second
interval
Press the SEQUENCE button.
The pictures from each camera are displayed sequentially at 1 second interval. The
camera select indicators (1 – 4) light sequentially according to the displayed camera.
NOTE:
• The sequential display speed (image interval) is set to 1 second in the (MONITOR
SET) menu. To change the sequence speed setting, refer to “MON1 SEQ. TIMER”
on page 30.
• Only the channels where a camera is connected will be displayed. Empty channels
will be skipped automatically.
MONITOR 2 OPERATIONS
Press the MON2 button.
The monitor 2 mode is selected and the MON2 indicator lights. A camera live picture
will be displayed sequentially or full screen on monitor 2.
The monitor 2 display mode is memorized and the last one previously used will be
automatically selected.
A: SEQUENTIAL DISPLAY MODE OPERATIONS
Press the camera select 2 button.
The camera 2 indicator lights, the picture from camera 2 is displayed on monitor 2.
B: FULL SCREEN DISPLAY MODE OPERATIONS
Press the SEQUENCE button.
The SEQUENCE indicator lights, sequential display mode is selected.
☞
To cancel the monitor 2 operations
Press the MON2 button.
• The previously selected display mode (full screen or sequential display) will
be selected.
• Live pictures will be displayed in a 4 divisions split screen on monitor 1.
TO DISPLAY ON MONITOR 2 THE SAME IMAGE AS ON
MONITOR 1
This function can be used to monitor the images from a second location.
In the (MONITOR SET) menu, set the item “MON2
← MON1” to “Y” (see page 30).
NOTE: When this setting is used, the MON2 button will not operate.
SEQUENCE
MON 2
Monitor 1 Monitor 2
2
SEQUENCE
A
B
MON2
MON2
Live picture will be displayed on monitor 2
even during VCR playback mode.
L8FH5/US (MPX-CD4 GB) 1999. 6. 4
14 English
