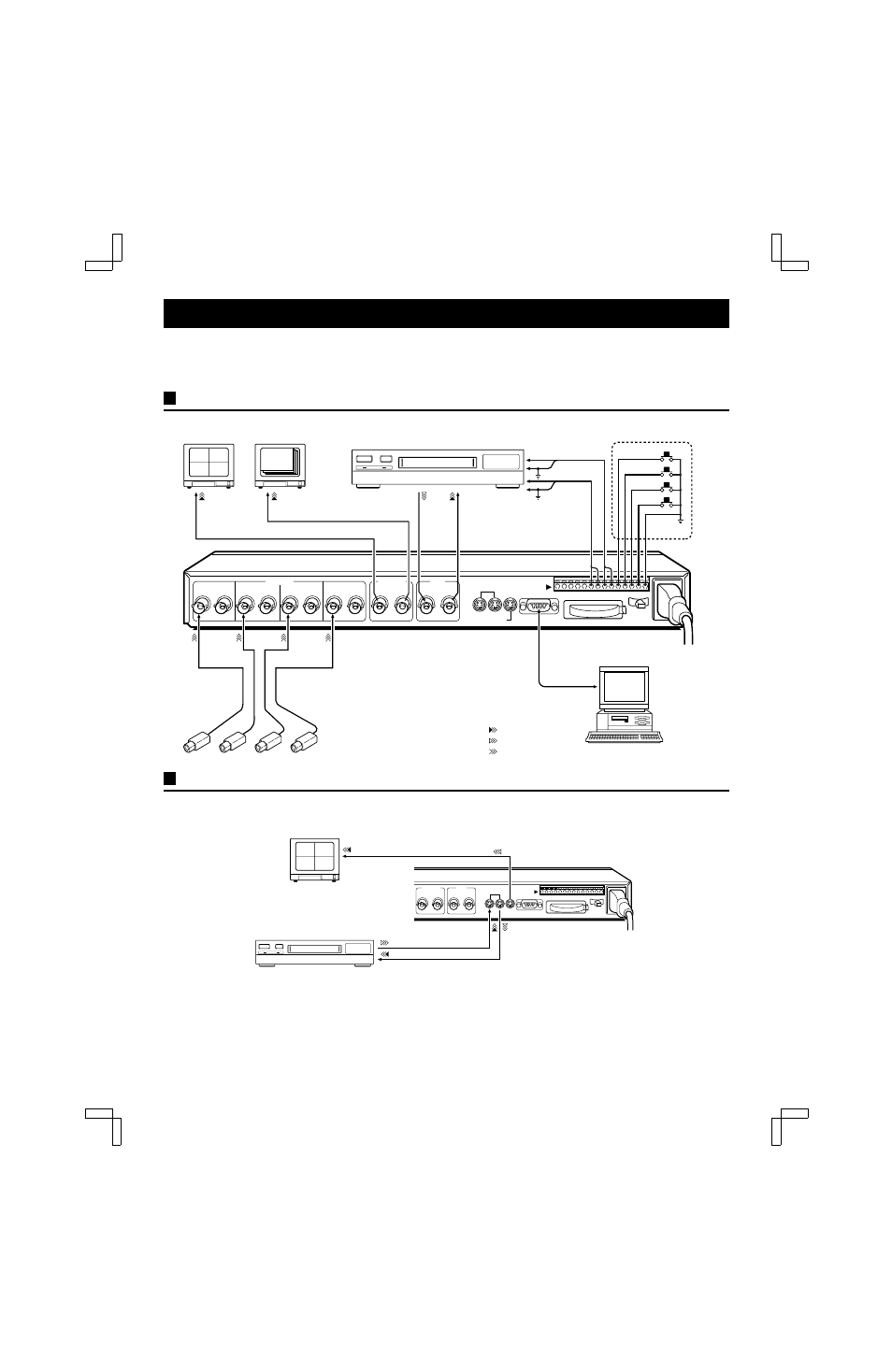

CONNECTION
Before making any connection, make sure all the devices are turned off.
Before making the connections, please refer to the instruction manual accompanying each device. If the devices are not connected
properly, that may cause a fire and/or damages.
BASIC CONNECTIONS
CONNECTIONS TO THE S-VIDEO TERMINALS
If connections are made to the S-VHS terminals, they will have the priority.
1
IN
OUT
2
IN
OUT
3
IN
OUT
4
IN
OUT
CAMERA
IN
1
2
OUT
IN
OUT
S-VHS
VCR
MONITOR 1
CONTROL
G C R1 R2 C S C A C 1 2 3 4 C
1
2
3
4
External alarm sensors
(door bell, interphone, etc.)
Monitors (sold separately)
Video input
terminal
Video input
terminal
Video output
terminal
Video input
terminal
Timelapse VCR (sold separately)
Alarm input
terminal
Switching output
terminal
Computer
VIDEO IN
VIDEO OUT
CAMERA IN
Signal flow
(See page 35)
VCR
MONITOR
COM
COM
COM
IN
1
2
OUT
IN
OUT
S-VHS
VCR
RS232C
CONTROL
G C R1 R2 C S C A C 1 2 3 4 C
MONITOR 1
VCR
MONITOR
1
2
3
4
Monitor 1 (sold separately)
S-VIDEO input
terminal
Timelapse VCR (sold separately)
S-VIDEO output terminal
S-VIDEO input terminal
