Chapter 5: Advanced Serverboard Setup
5-7
5-4 I/O Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-2 below for the colors and locations of the various I/O ports.

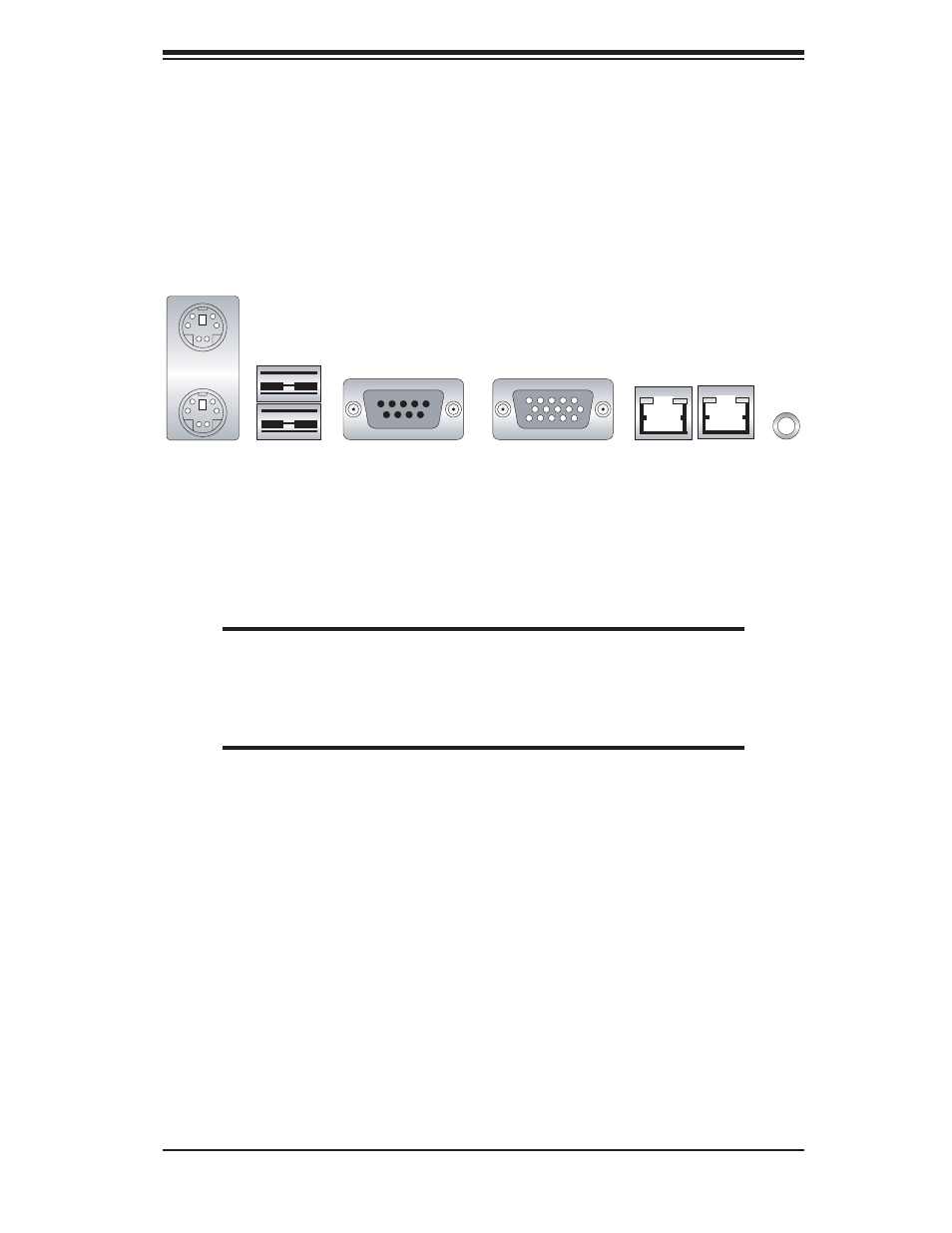

Figure 5-2. Rear Panel I/O Ports
5-5 Installing Memory
Note: Check the Supermicro web site for recommended memory modules.
CAUTION
Exercise extreme care when installing or removing DIMM modules
to prevent any possible damage. Also note that memory may be
interleaved to improve performance (see step 1).
DIMM Installation
1. Insert the desired number of DIMMs into the memory slots, starting with slots
DIMM1A and DIMM2A (the blue slots). Both interleaved and non-interleaved
memory are supported, so you may populate any number of DIMM slots. Populating
two slots at a time (DIMM1A + DIMM2A, DIMM1B + DIMM2B, etc.) with memory
modules of the same size and of the same type will result in dual-channel, inter-
leaved memory which is faster than the single-channel, non-interleaved memory.
2. Insert each DIMM module vertically into its slot. Pay attention to the notch along
the bottom of the module to prevent inserting the DIMM module incorrectly.
3. Gently press down on the DIMM module until it snaps into place in the slot.
Repeat for all modules (see step 1 above).
Mouse
(Green)
Keyboard
(Purple)
USB0/1 Ports
COM1 Port
(Turquoise)
VGA Port
(Blue)
LAN1 LAN2
UID
