8
SA-FT7ED/WFT7/SS-CNF7ED/FRF7ED/WS-FT7

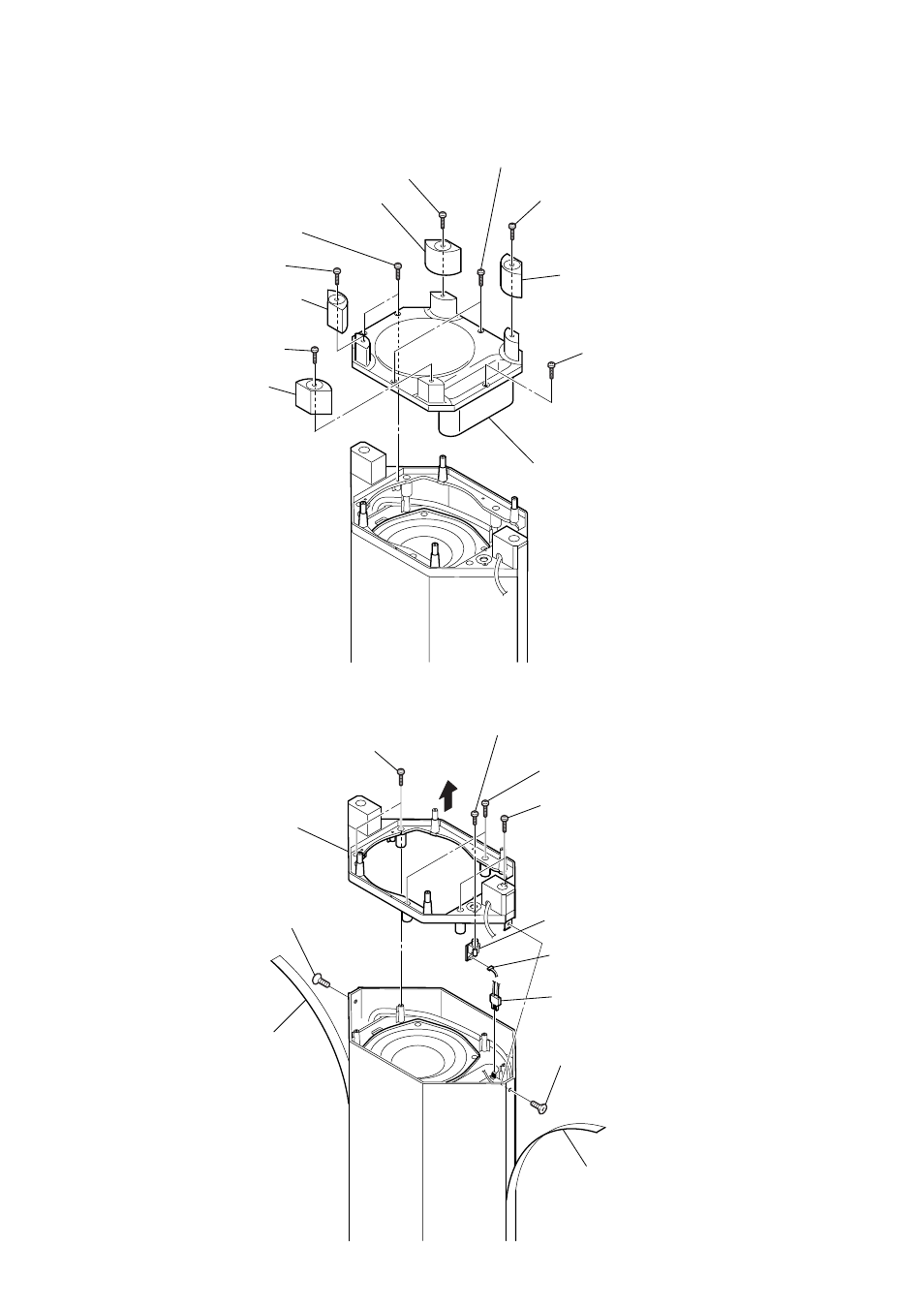

2-4. BOTTOM COVER (B) ASSY
2-5. INPUT BOARD
1 screw
(+BVTP 4 × 16)
9 tapping screw (1)
(3.5 × 14)
qs bottom cover (B) assy
0 two tapping screws (1)
(3.5 × 14)
qa two tapping screws (1)
(3.5 × 14)
5 screw
(+BVTP 4 × 16)
3 screw
(+BVTP 4 × 16)
7 screw
(+BVTP 4 × 16)
2 foot cover (B)
6 foot cover (B)
4 foot cover (A)
8 foot cover (A)
5 two tapping screws (1)
(3.5
×
14)
9 CN701 (3P)
qs INPUT board
qd bottom cover (A)
0 CN901 (2P)
6 two tapping screws (1)
(3.5 × 14)
7 two tapping screws (1)
(3.5 × 14)
qa tapping screw (1)
(3.5 × 14)
8
2 screw
(+KTP 3.5 × 12)
4 screw
(+KTP 3.5
×
12)
1 peel the ornamental panel (RR)
3 peel the ornamental panel (FR)
Ver. 1.1
