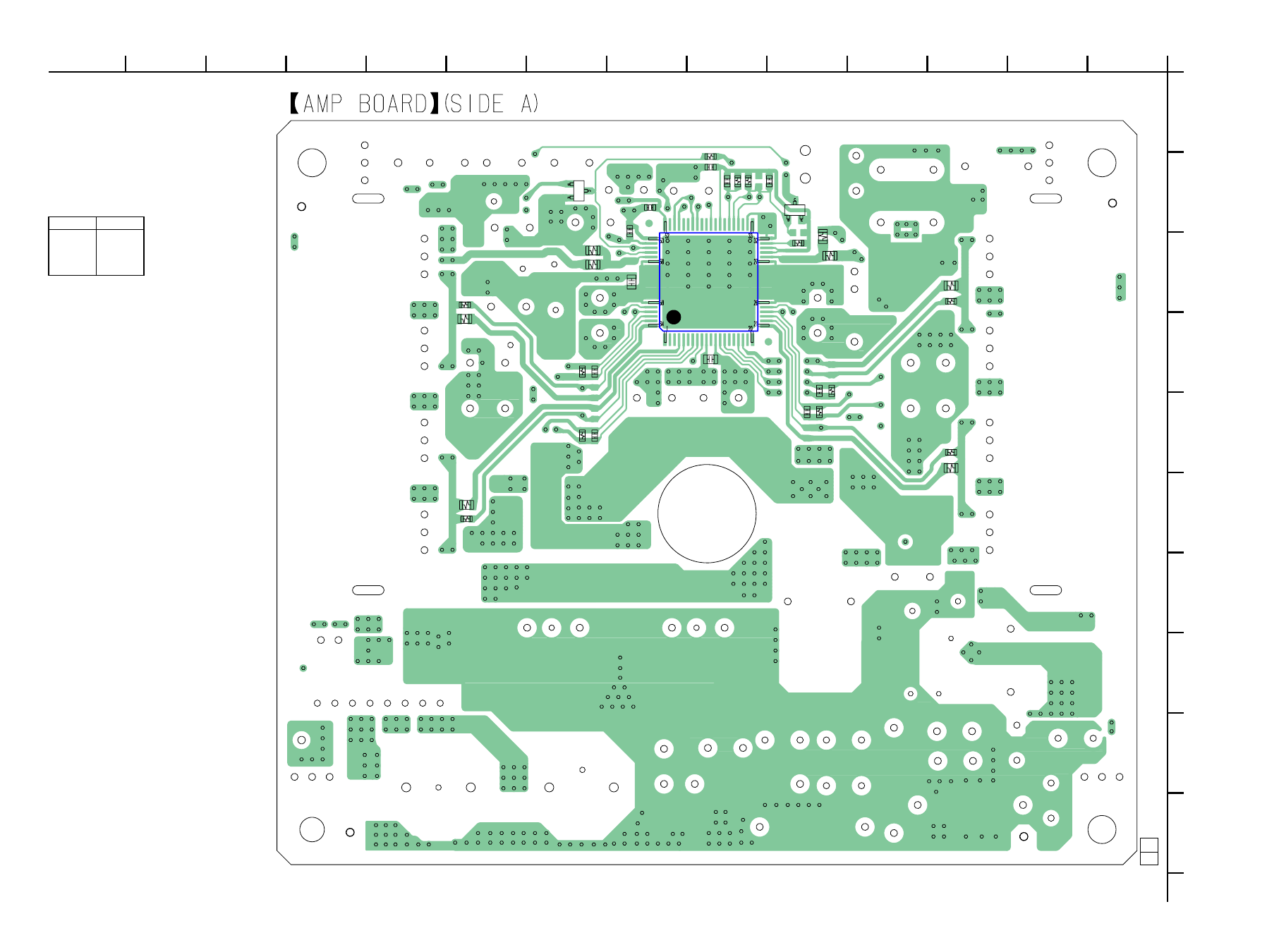

3-5. PRINTED WIRING BOARD — AMP SECTION (1/2) — • Refer to page 10 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
J
2 3 4 5 6 7 8 9 10 11 12 13 14
1-865-569-
11
(11)
R666
R665
R681
Q603
R671
R675
C674
C672
R601
R667
Q691
C605
R655
R689
C619
R685
R686
C603
C618
R669
R661
IC601
R603
R604
R657
R687
C606
R608
C623
R677
C622
C652
R651
C654
Ref. No. Location
IC601 C-6
Q603 B-8
Q691 B-5
• Semiconductor
Location (Side A)
