SA-FT7ED/WFT7/SS-CNF7ED/FRF7ED/WS-FT7
SECTION 2
DISASSEMBLY
• The equipment can be removed using the following procedure.
2-1. TOP COVER
Note : Follow the disassembly procedure in the numerical order given.
2-1. TOP COVER
(Page 6)
2-2. AMP BOARD,
FILTER BOARD
(Page 7)
SET
2-3. POWER BOARD
(Page 7)
2-5. INPUT BOARD
(Page 8)
2-6. ACIN BOARD
(Page 9)
2-4. BOTTOM COVER (B) ASSY
(Page 8)

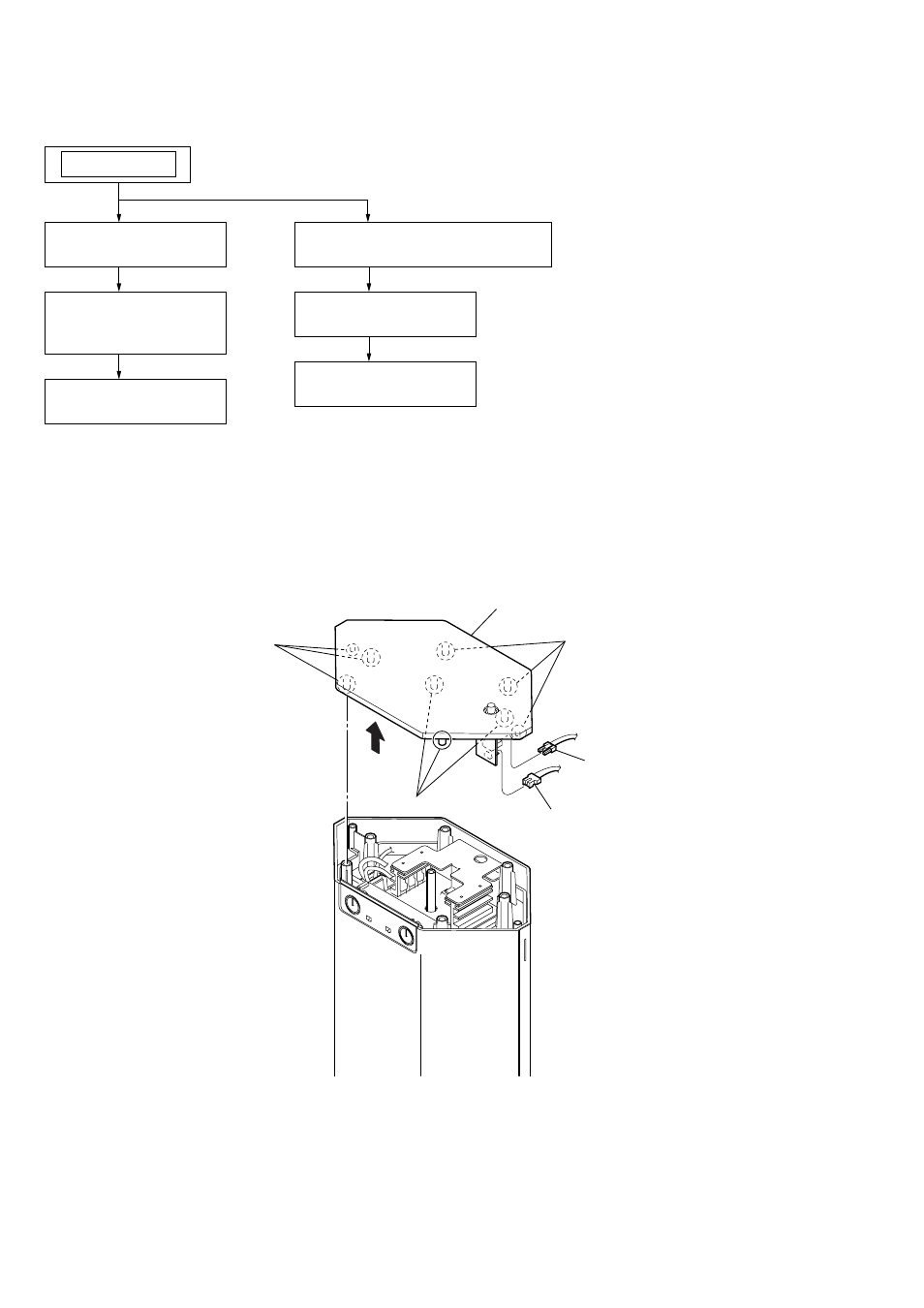

1 top cover
three bosses
three bosses
three bosses
2
3 CN302 (2P)
4 CN301 (2P)
