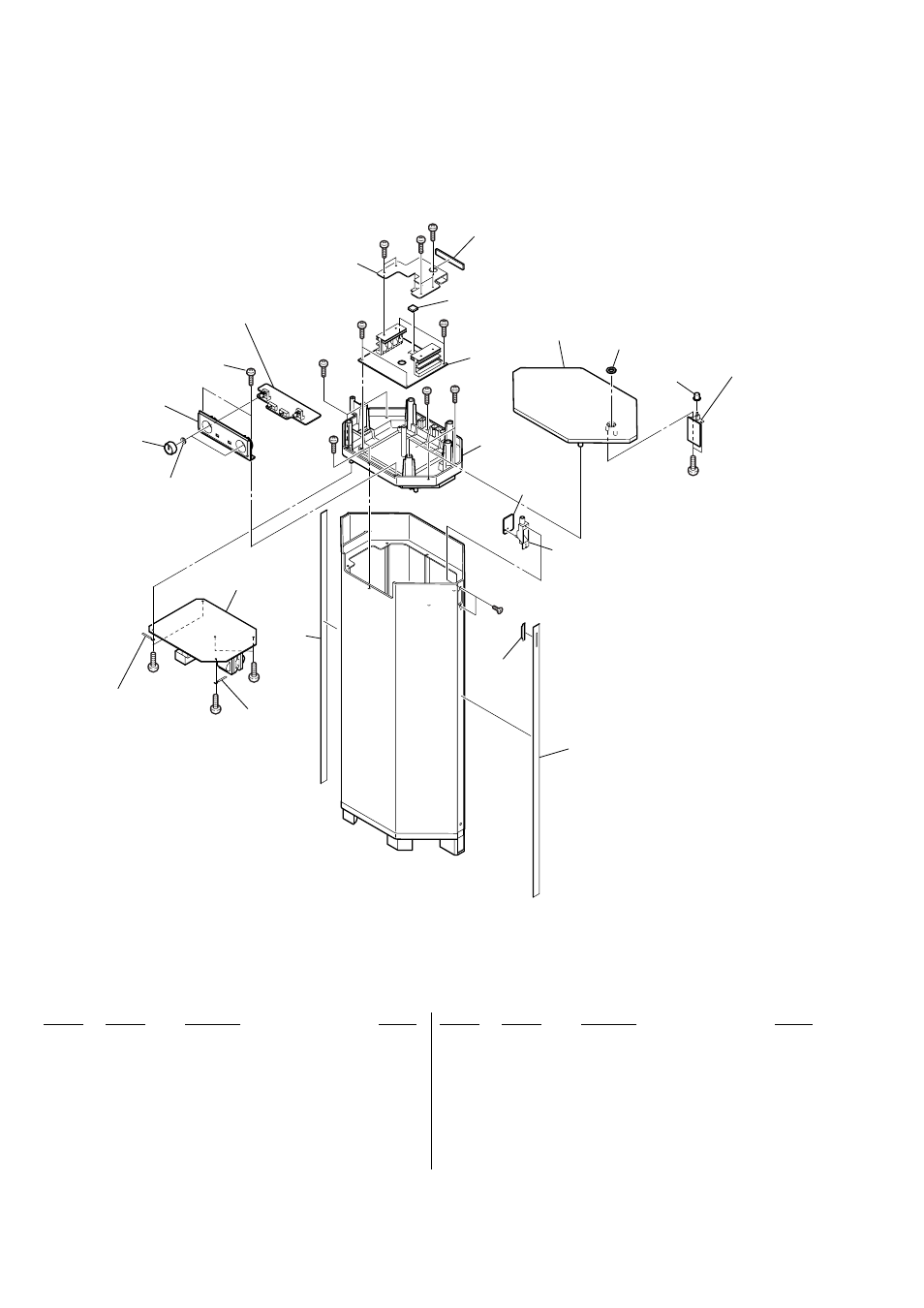

4-4. SUBWOOFER SECTION (1)
(SA-WFT7)
151
152
153
155
158
156
159
160
157 not supplied
(SW board)
not supplied
(LED board)
not supplied
(FILTER board)
not supplied
(POWER board)
not supplied
#1
#1
#1
#10
#10
#9
#1
#10
#10
#1 #1
#11
#11
#11
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
154
supplied with VR501,502
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 2-630-123-01 COVER, TOP (AEP,UK)
151 2-630-123-11 COVER, TOP (US,CND)
152 2-630-124-01 RING, ORNAMENTAL
153 2-630-125-01 KNOB, PUSH
154 4-874-614-12 SCREW (1) (3.5X14), TAPPING
155 2-630-158-01 PANEL (FR), ORNAMENTAL
156 2-630-131-01 INDICATOR
157 A-1119-253-A AMP BOARD, COMPLETE
158 2-630-159-01 PANEL (RR), ORNAMENTAL
159 2-630-127-01 KNOB (VOL)
160 2-630-126-01 PANEL, CONTROL
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#9 7-685-235-19 SCREW +KTP 2.6X10 TYPE2 NON-SLIT
#10 7-685-663-79 SCREW +BVTP 4X16 TYPE2 IT-3
#11 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
