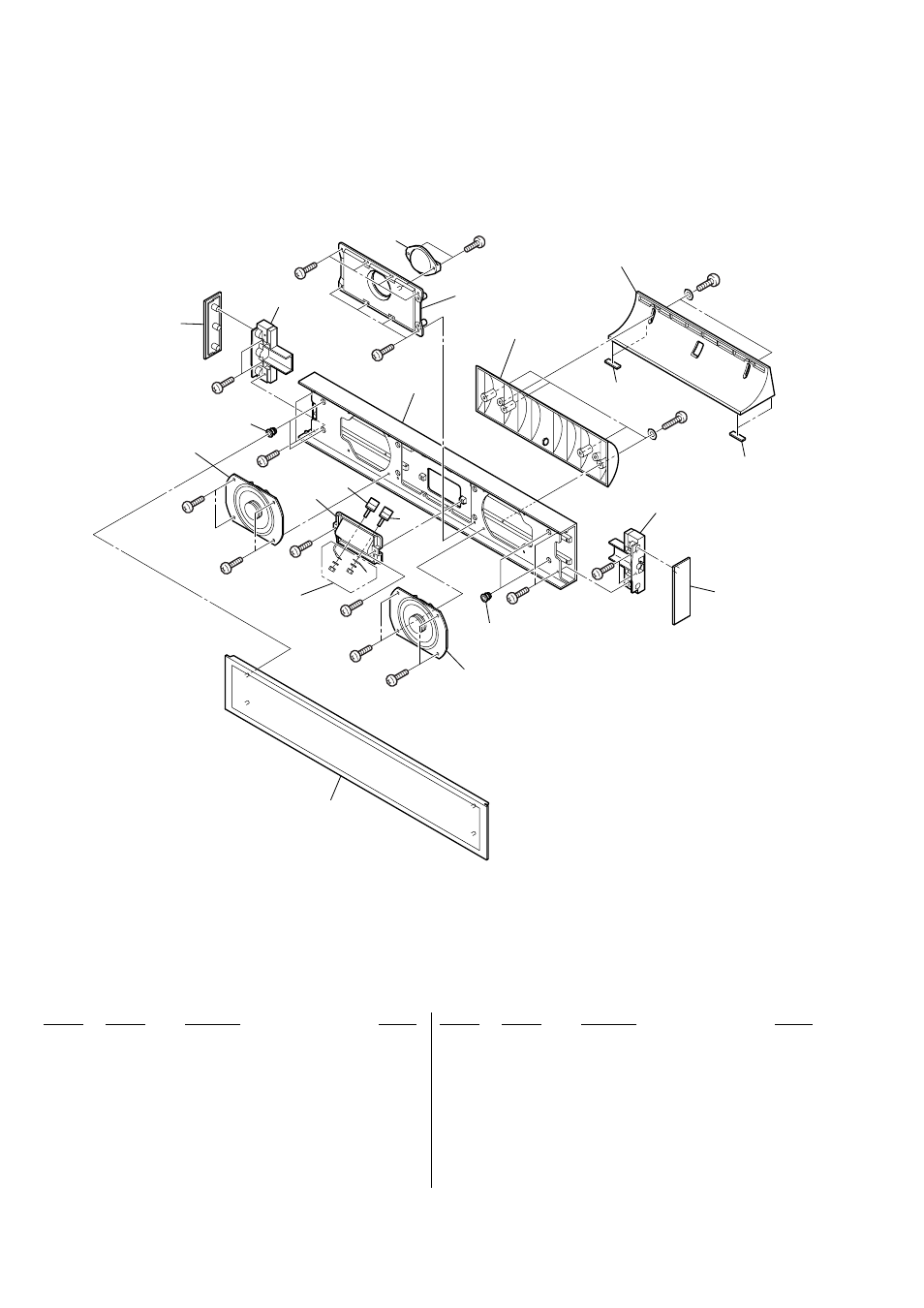

4-2. CENTER SPEAKER SECTION
(SS-CNF7ED)
51 2-630-181-01 COVER, SIDE
52 4-235-399-01 CATCHER
53 1-826-121-11 LOUDSPEAKER (8cm)
54 A-1121-725-A FRAME (CN) ASSY, GRILLE
55 1-826-120-21 LOUDSPEAKER (2cm)
56 2-630-180-01 CABINET (CN)
57 X-2059-327-1 BRACKET ASSY, BASE
58 2-630-306-01 BASE (CN)
59 2-630-307-01 FOOT (CN)
60 1-780-292-21 TERMINAL (BLACK)
61 1-780-292-11 TERMINAL (RED)
62 2-630-184-01 TERMINAL BOARD (CN)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-623-926-11 WASHER 5.0, NYLON
#4 7-682-561-04 SCREW +B 4X8
#5 7-623-210-22 SW 4, TYPE 2
#6 7-682-576-04 SCREW +B 5X12
51
52
52
53
53
54
51
55
not supplied
not supplied
not supplied
not supplied
#1
#5
#4
#3 #6
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
57
56
58
59
59
60
61
62
Ver. 1.1
