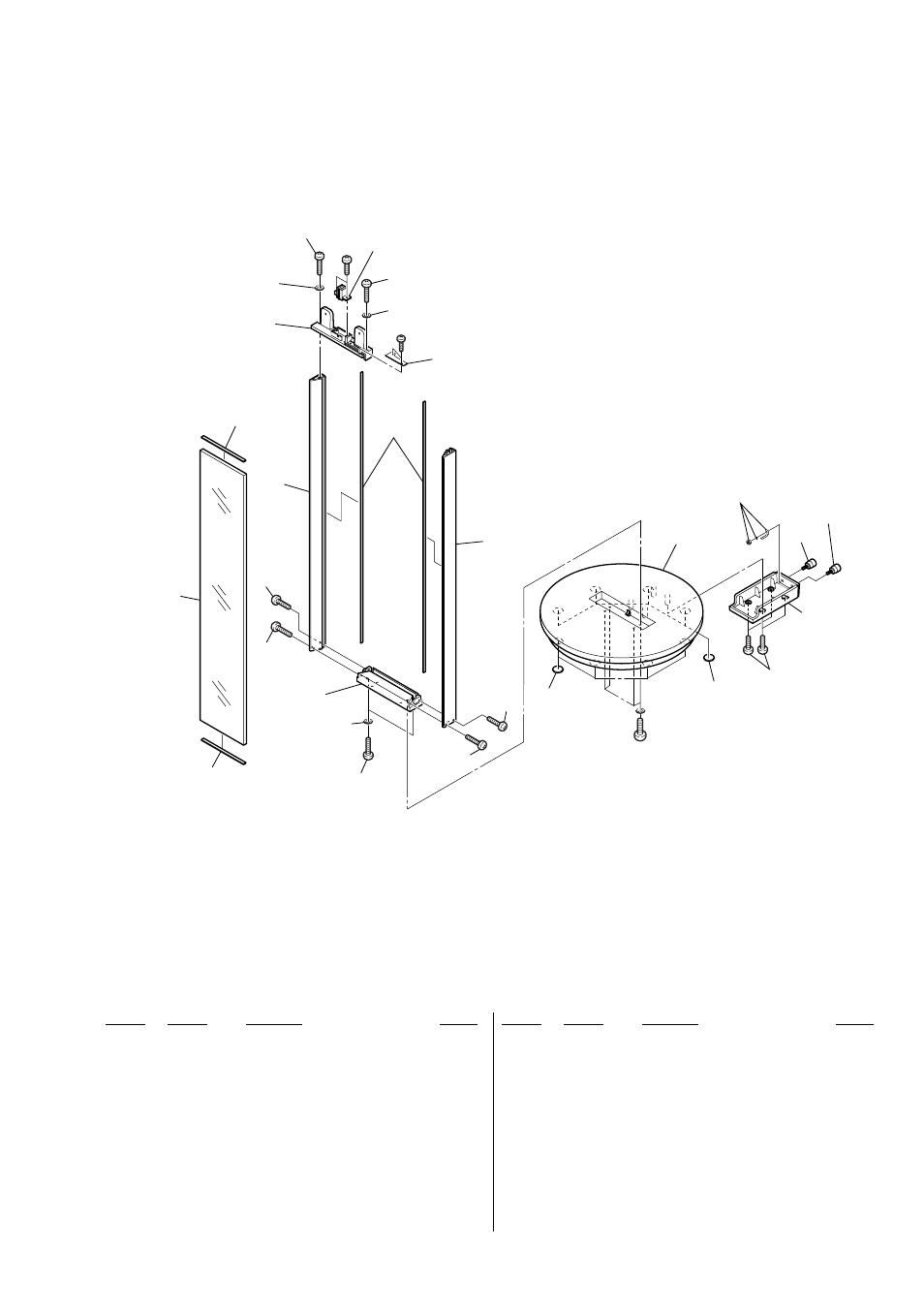

4-3. SPEAKER STAND SECTION
(WS-FT7)
101
112
113
102
102
104
104
104
105
105
106
107
108
109
110
111
103
not supplied
not supplied
not supplied
#1
#7
#6
#2
#8
114
116
116
115
115
114
114
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 2-630-207-01 TERMINAL BOARD (FR)
102 2-630-208-01 FOOT (FR)
103 2-630-206-01 BASE (FR)
104 4-986-971-01 SCREW (3.5)
105 2-630-211-01 PACKING (H), GLASS
106 2-630-204-01 GLASS
107 2-630-203-01 STAY (L)
108 2-630-210-01 PACKING (V), GLASS
109 2-630-202-01 STAY (R)
110 2-630-205-01 JOINT (ST)
111 2-630-201-01 HOLDER, CORD
112 1-780-292-11 TERMINAL (RED)
113 1-780-292-21 TERMINAL (BLACK)
114 9-885-094-64 SW 3.5, TYPE2
115 9-885-094-65 SCREW +KTP 3.5X14 TYPE2 IT-3
116 9-885-094-66 SCREW +KTP 3.5X8 TYPE2 IT-3
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#6 7-682-576-04 SCREW +B 5X12
#7 7-623-212-22 SW 5, TYPE2
#8 7-621-775-10 SCREW +B 2.6X4
