7
SA-FT7ED/WFT7/SS-CNF7ED/FRF7ED/WS-FT7

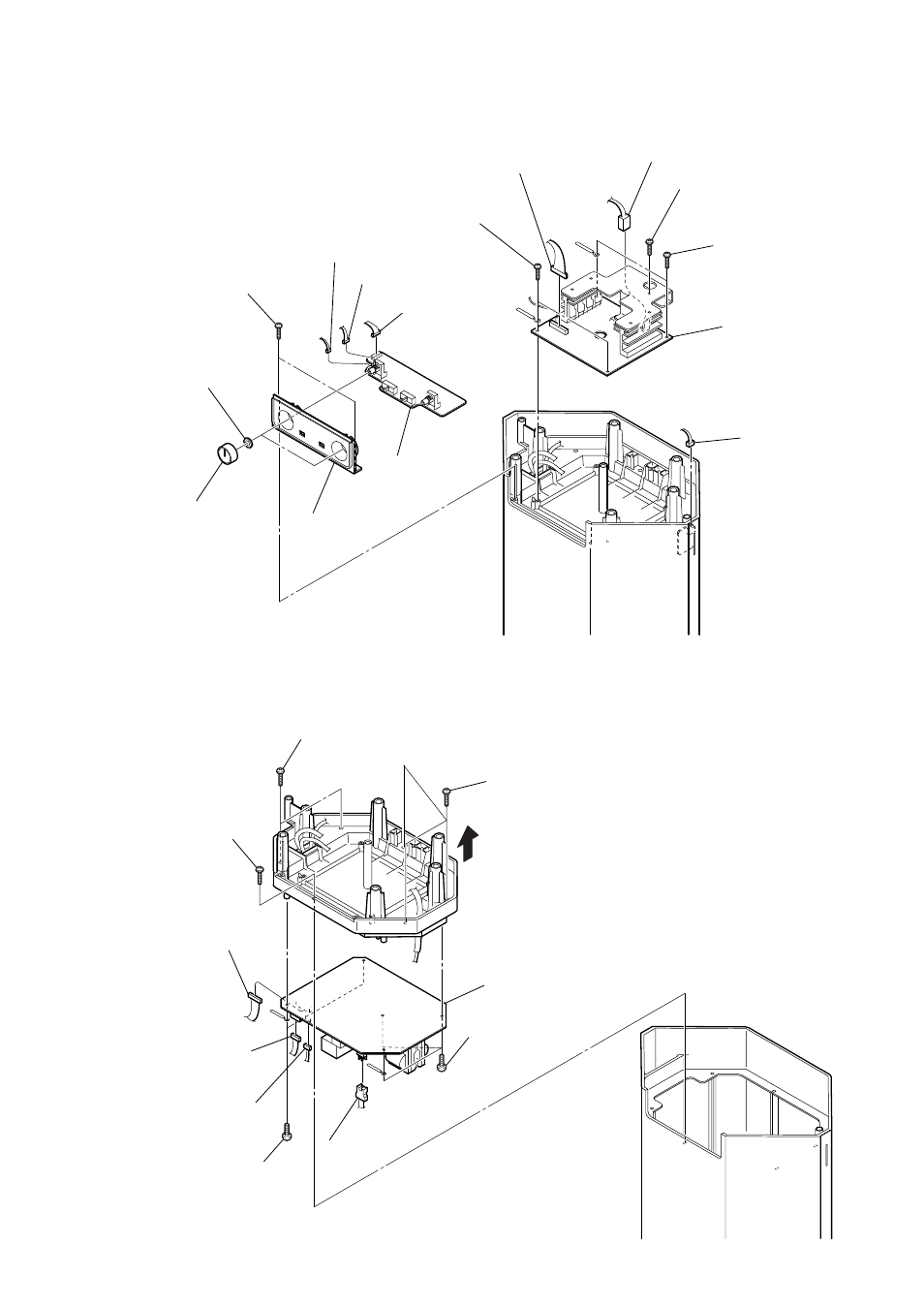

2-2. AMP BOARD, FILTER BOARD
2-3. POWER BOARD
0 CN603 (8P)
qg CN601 (2P)
1 CN801 (3P)
2 CN402 (2P)
3 CN403 (3P)
4 CN401 (7P)
6 two knobs (VOL)
7 two nuts
8 control panel
9 FILTER board
5 two tapping screws (1)
(3.5
×
14)
qa two screws
(+BVTP 3 × 8)
qs two screws
(+BVTP 3 × 8)
qd screw
(+BVTP 3
×
6)
qf AMP board
5 CN201 (2P)
6 CN202 (3P)
7 CN203 (7P)
8 CN205 (8P)
1 three screws
(+BVTP 4
×
16)
9 three screws
(+BVTP 3 × 8)
qa POWER board
0 two screws
(+BVTP 3
×
8)
2 two screws
(+BVTP 4
×
16)
4 3 screw
(+BVTP 4 × 16)
Ver. 1.1
