Sherwood R-765 - Manual (Page 9)

FRONT
SPEAKERS
(6 )
SURROUND
SPEAKERS
(6 )
CENTER
SPEAKER
(6 )
SURROUND
BACK
(6 )
Front
right
Surround
right
Front
left
Surround
left
(Front)
Center
Surround
back

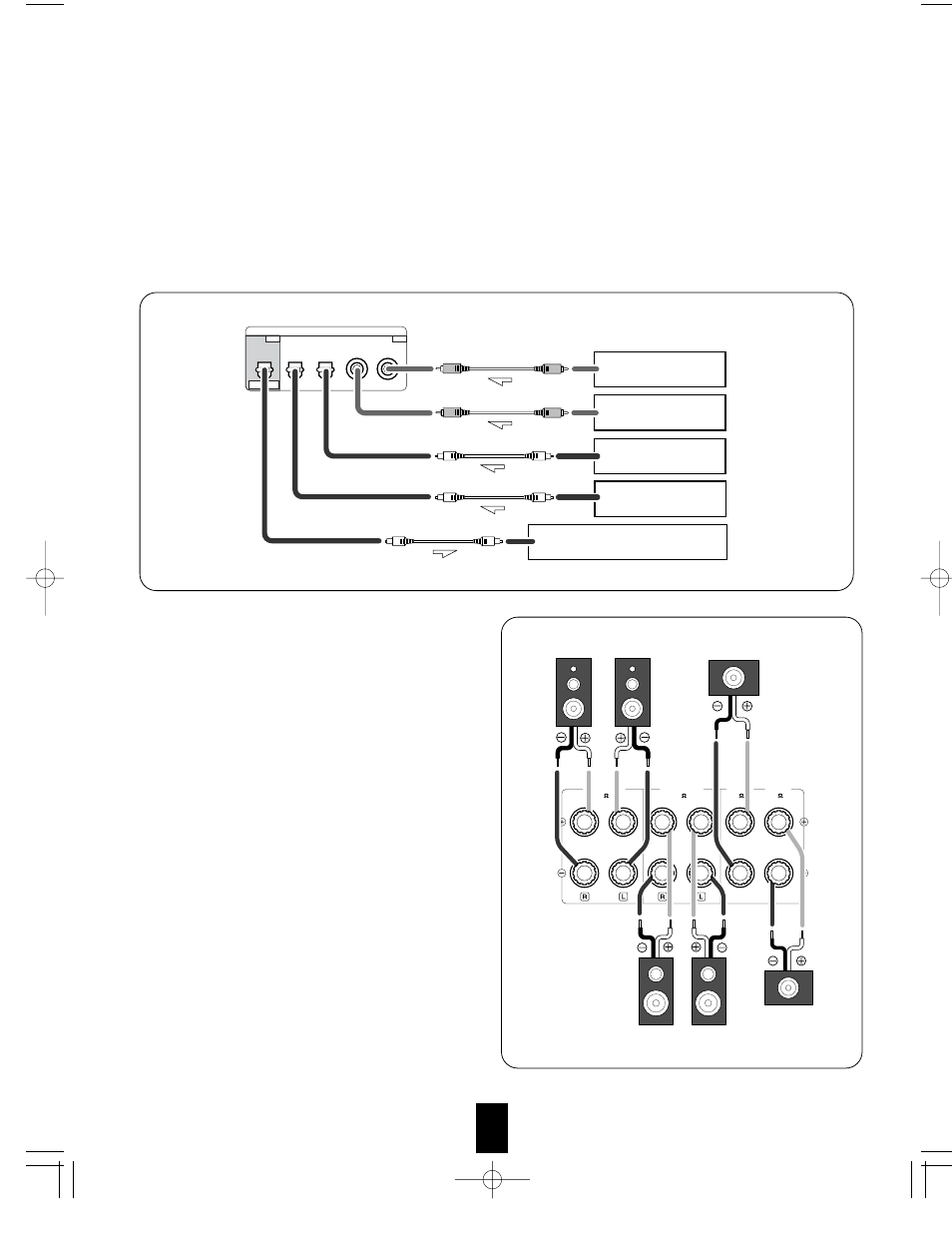

8. CONNECTING SPEAKERS
• Be sure to connect speakers firmly and correctly
according to the channel(left and right) and the polarity(+
and -). If the connections are faulty, no sound will be
heard from the speakers, and if the polarity of the speaker
connection is incorrect, the sound will be unnatural and
lack bass.
• For installing the speakers, refer to “Speaker placement”
on page 24.
• After installing the speakers, first adjust the speaker
settings according to your environment and speaker
layout.(For details, refer to “Adjusting the speaker
settings” on page 24.)
Caution :
• Be sure to use the speakers with the impedance of 6
ohms or above.
• Do not let the bare speaker wires touch each other or any
metal part of this unit. This could damage this unit and/or
the speakers.
9
OPT 1 OPT 2 COAX 1 COAX 2
DIGITAL
OUT IN
OPTICAL
Component with
COAXIAL DIGITAL OUT
Component with
COAXIAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
Component as an MD recorder,
CD recorder with OPTICAL DIGITAL IN
7. CONNECTING DIGITAL INs and OUT
• The COAXIAL or the OPTICAL DIGITAL OUTs of the components that are connected to CD and VIDEO 1~3 of this unit can
be connected to these DIGITAL INs.
• If a digital recorder or other component with OPTICAL DIGITAL IN/OUT jacks is connected to the corresponding jacks of this
unit, you can playback and/or record the high quality sound of CD’s, etc. without analog conversion or degradation.
• A digital input should be connected to the components such as a CD player, LD player, DVD player, etc. capable of outputting
DTS Digital Surround, Dolby Digital or PCM format digital signals, etc.
• For details, refer to the operating instructions of the component connected.
• When making the COAXIAL DIGITAL connection, be sure to use a 75Ω COAXIAL cord, not a conventional AUDIO cord.
• All of the commercially available optical fiber cords cannot be used for the equipment. If there is an optical fiber cord which
cannot be connected to your equipment, consult your dealer or nearest service organization.
