7

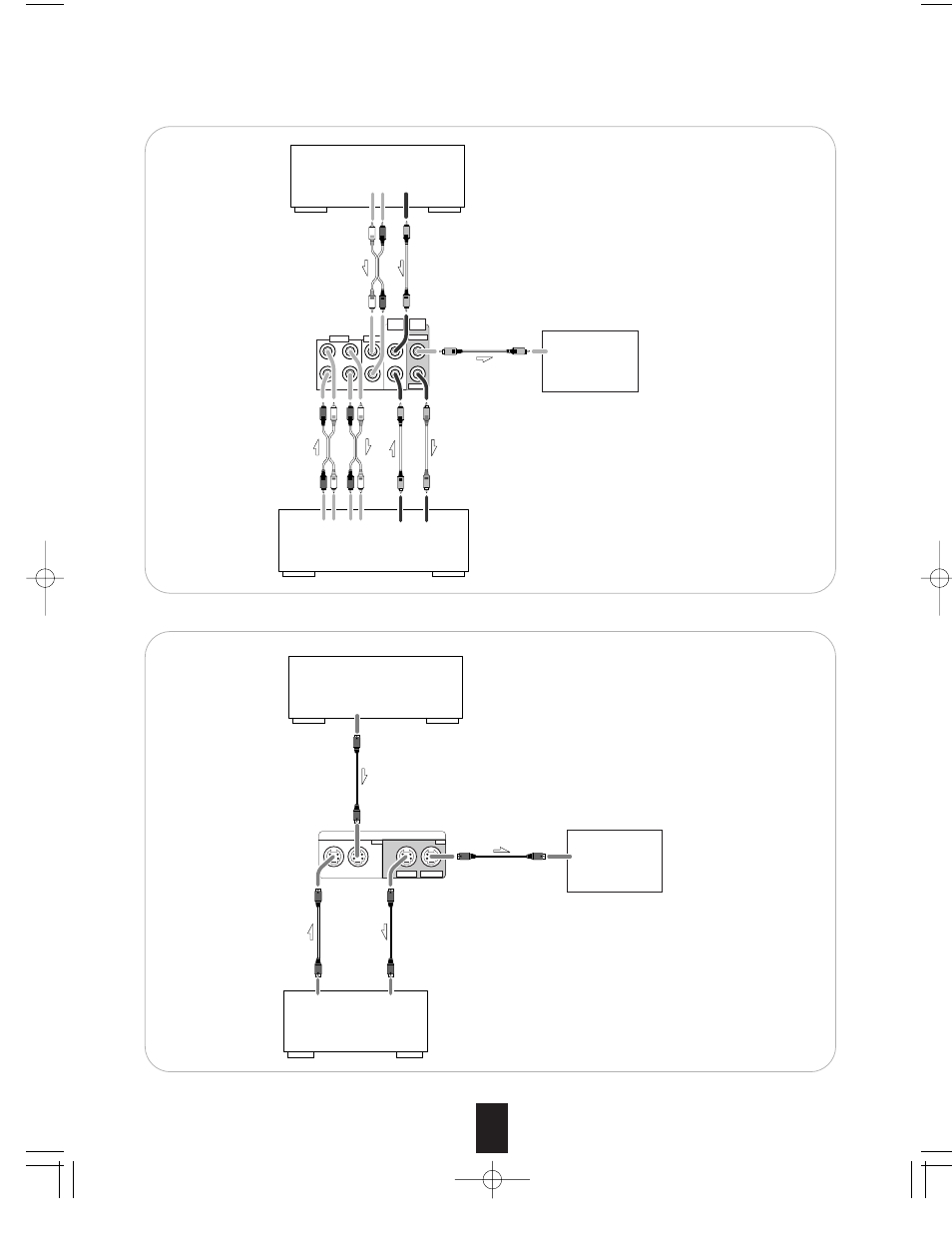

4. CONNECTING VIDEO COMPONENTS
5. CONNECTING VIDEO COMPONENTS equipped with S-VIDEO jacks
• The jacks of VIDEO 1 may also be connected to
a VCR, DVD recorder or other digital video
recording component. For details, refer to the
operating instructions of the component to be
connected.
• The jacks of VIDEO 2 can also be connected to
an additional video component such as a cable
TV tuner, an LD player or satellite system.
PLAY REC PLAY VIDEO 1
VIDEO 2 VIDEO 1 VIDEO 2 MONITOR
VIDEO
OUT
VIDEO
IN
VIDEO 1
AUDIO
OUT
AUDIO
IN
VIDEO
OUT
VIDEO
IN
R L R L
VIDEO 1
VCR, etc.
VIDEO 2
DVD player,
LD player, etc. AUDIO
OUT
VIDEO
OUT
R L
MONITOR
TV, projector, etc.
VIDEO
IN
VIDEO 1 VIDEO 2
S-VIDEO
IN OUT
VIDEO 1 MONITOR
S-VIDEO
IN
VIDEO 1
VCR, etc.
VIDEO 2
DVD player,
LD player, etc.
MONITOR
TV, projector, etc.
S-VIDEO
OUT
S-VIDEO
OUT
S-VIDEO
IN
