AC OUTLET
To a wall
AC outlet
12. AC INPUT CORD
11. SWITCHED AC OUTLET
• Plug this cord into a wall AC outlet.
• This outlet is switched on(power-on mode) and
off(standby mode) according to power control as
follows(Maximum total capacity is 100 W).
Standby mode - Switched AC outlet off
Power-on mode - Switched AC outlet on
PRE OUT
SUB WOOFER
Powered subwoofer
DIGILINK
System
control
cord
Sherwood component
with DIGI LINK II or III
CD player
Tape deck
DVD player

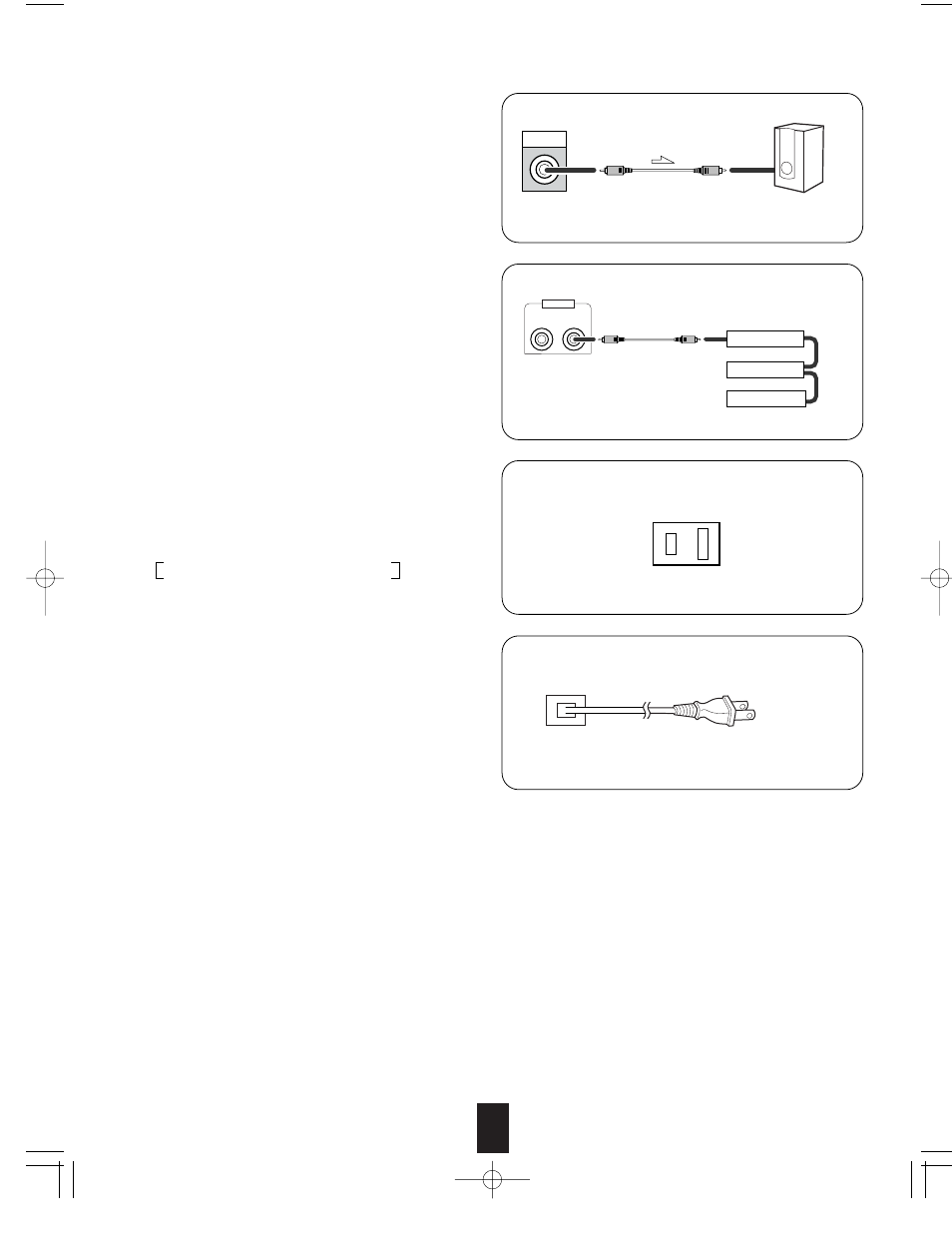

9. SUBWOOFER PRE OUT connection
• To emphasize the deep bass sounds, connect a
powered subwoofer.
10. CONNECTING SYSTEM CONTROL
• Connect this jack to the DIGI LINK jack of the external
Sherwood component that uses the DIGI LINK II or III
remote control system.
