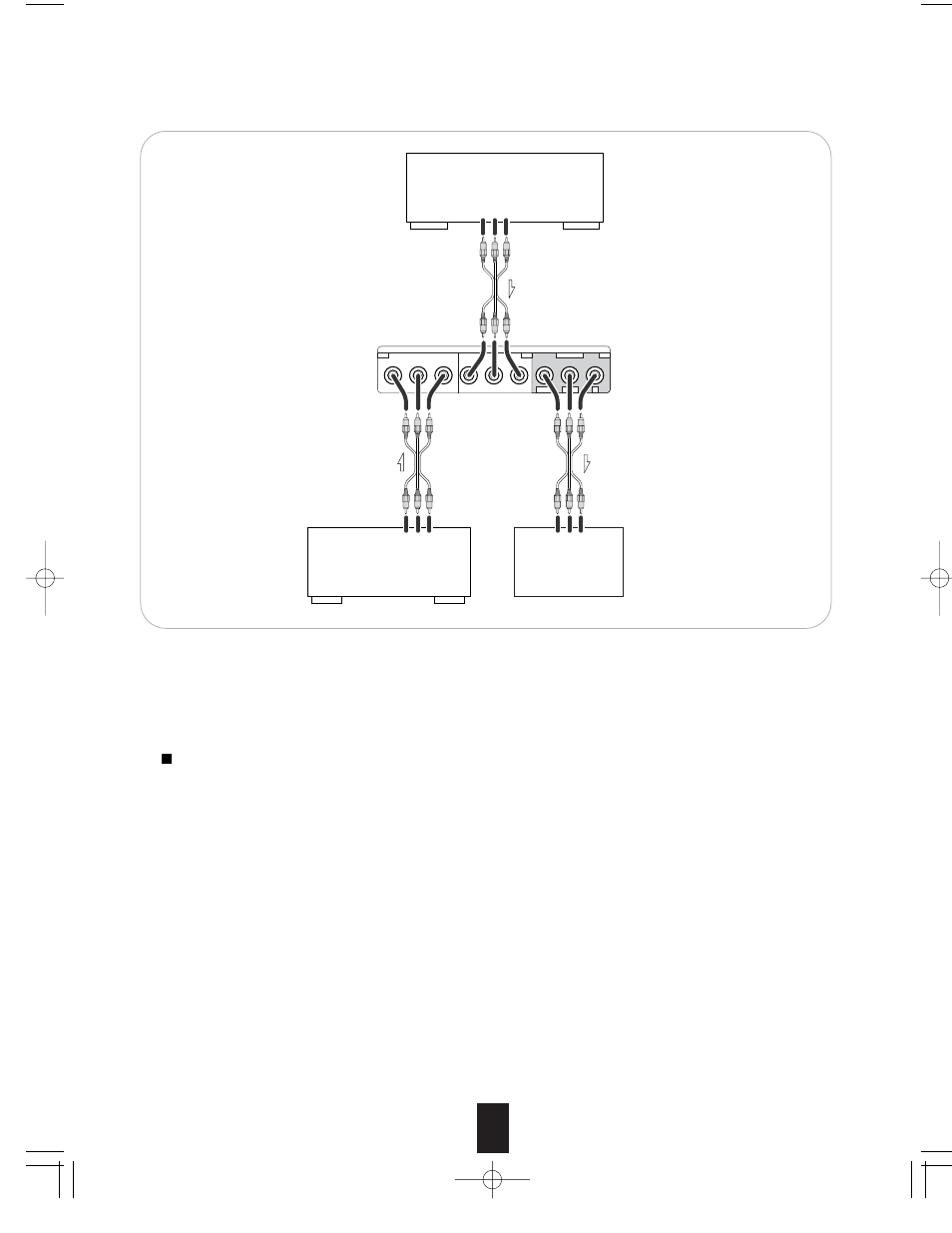

6. CONNECTING VIDEO COMPONENTS equipped with COMPONENT VIDEO jacks
P
R
/C
R
P
B
/C
B
Y
COMPONENT
VIDEO 1
VIDEO 2
IN
IN
OUT
MONITOR
P
R
/C
R
P
B
/C
B
Y
P
R
/C
R
P
B
/C
B
Y
VIDEO 1
VCR, etc.
VIDEO 2
DVD player,
LD player, etc.
MONITOR
TV, projector, etc.
COMPONENT
VIDEO OUT
Y
P
B
P
R
COMPONENT
VIDEO IN
Y
P
B
P
R
COMPONENT
VIDEO OUT
Y
P
B
P
R
Notes :
• The on-screen display function and recording the component video signals are not available when using the
COMPONENT VIDEO connections.
• When Sherwood DVD player such as V-756, etc. is connected to the DIGI LINK jack for system control, you should
connect the DVD player to the "VIDEO 2" jacks of this unit.
Because, if the PLAY button, etc. is pressed on the DVD player, the VIDEO 2 is automatically selected as an input
source on this unit and the playback, etc. starts
• The excellence in picture quality is as follows:
"COMPONENT" > "S-VIDEO" > normal(composite) "VIDEO"
• When making COMPONENT VIDEO connections, connect "Y" to "Y", "P
B
/C
B
" to "C
B
" (or "B-Y", "P
B
") and "P
R
/C
R
" to
"C
R
"(or "R-Y", "P
R
").
• Signals input into the COMPONENT VIDEO IN jacks will be output in only the MONITOR COMPONENT VIDEO OUT
jacks.
