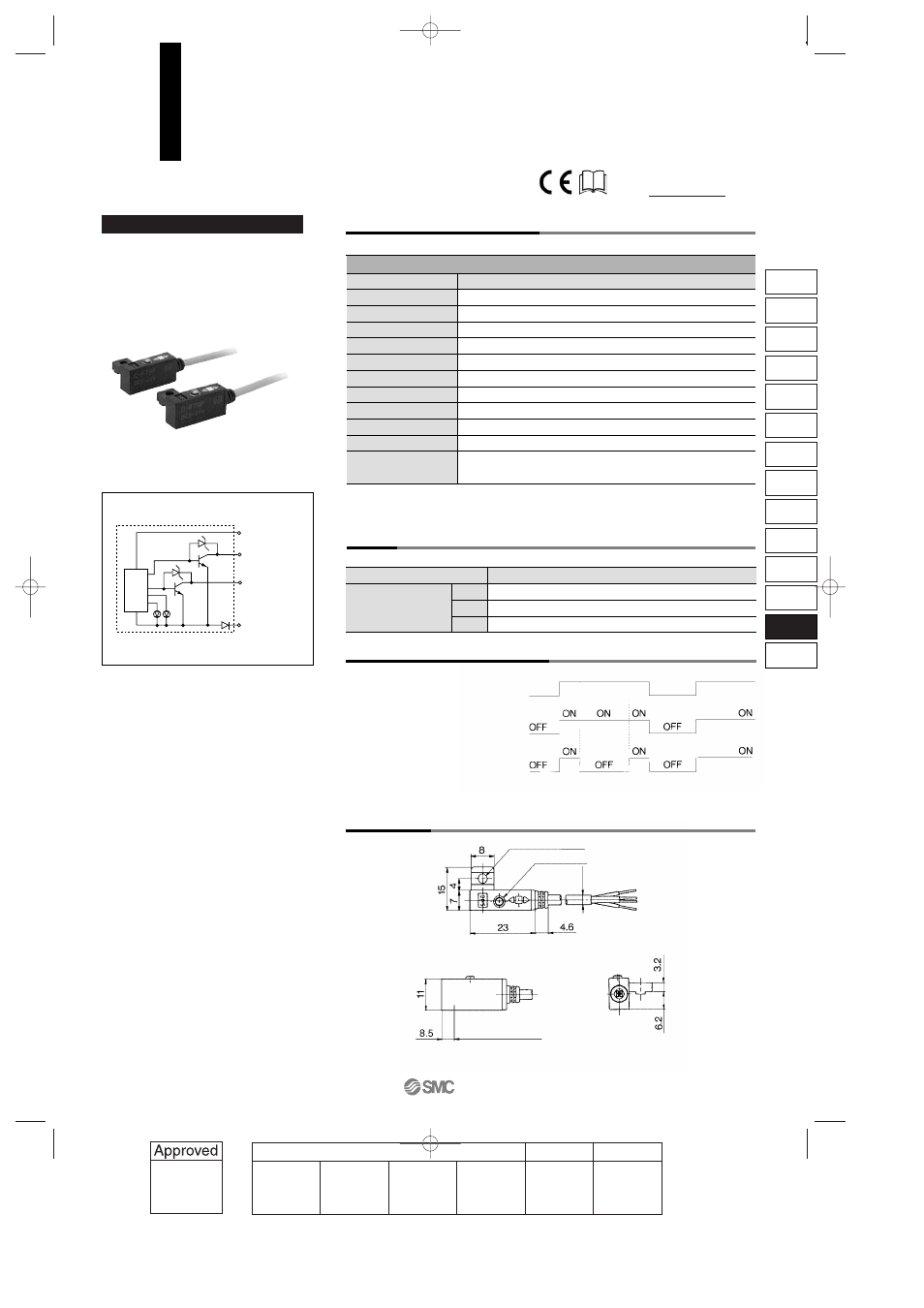

Auto Switch Internal Circuit

Diagnostic Output Operation

Dimensions

Auto switch model

0.5

3

5

13

56

90

D-F79F

Grommet

Lead wire length

(m)

ø3.4

Since the output signal can be
detected in an unsteady detecting
area, the difference of detecting
position can be confirmed by the
side of PLC (Programmable Logic
Controller).

The diagnostic signal is
output within unsteady
detecting area (where
indicator light is Red), and
the diagnostic output
becomes OFF when the
detecting position remains
within the optimum
operating position (where
indicator is Green). When
the detecting position is not
adjusted, the diagnostic
output becomes ON.

OUT (Normal output)
Black

DC (

+

)

Brown

DC (

)

Blue

Diagnosis OUT
(Diagnostic output)
Orange

D-F79F (With indicator light)

Auto switch model

Wiring

Output

Diagnostic output

Applicable load

Power voltage

Current consumption

Load voltage

Load current

Internal voltage drop

Current leakage

Indicator light

D-F79F

4-wire

NPN

Normal operation

IC circuit, Relay, PLC

5, 12, 24 VDC (4.5 to 28 VDC)

10 mA or less

28 VDC or less

50 mA or less at the total amount of normal output and diagnostic output

1.5 V or less (0.8 V or less at 5 mA)

100 µA or less at 24 VDC

Operating position······Red LED lights when ON.

Optimum operating position······Green LED lights when ON.

• Lead wire — Oil resistant vinyl heavy-duty cord, ø3.4, 0.2 mm

2

, 4 cores (Brown, Black, Orange, Blue), 0.5 m

Note 1) Regarding the common specifications of the solid state switches, refer to page 12-13-5.
Note 2) Regarding the lead wire length, refer to page 12-13-5.

Auto Switch Specifications

PLC: Abbreviation of Programmable Logic Controller

Weight

(g)

ø3.2 mounting hole

Indicator light

Most sensitive position

Indicator light

OUT
(Normal output)

Diagnosis OUT
(Diagnostic output)

OFF

OFF

ON

Red Green Red

Red

2-color Indication Type with Diagnostic Output
Solid State Switch: Rail Mounting Style

D-F79F

Main circuit

of switch
